4.11 Touch sensor
Removing the Touch sensor
To remove the touch sensor, follow the steps below and refer to Figure 4-18.
1. Turn up the insulator and peel off the touch sensor.
2. Disconnect the touch sensor FFC from the connector on the touch sensor.
Touch sensor FFC
Touch sensor
Guide
Insulator

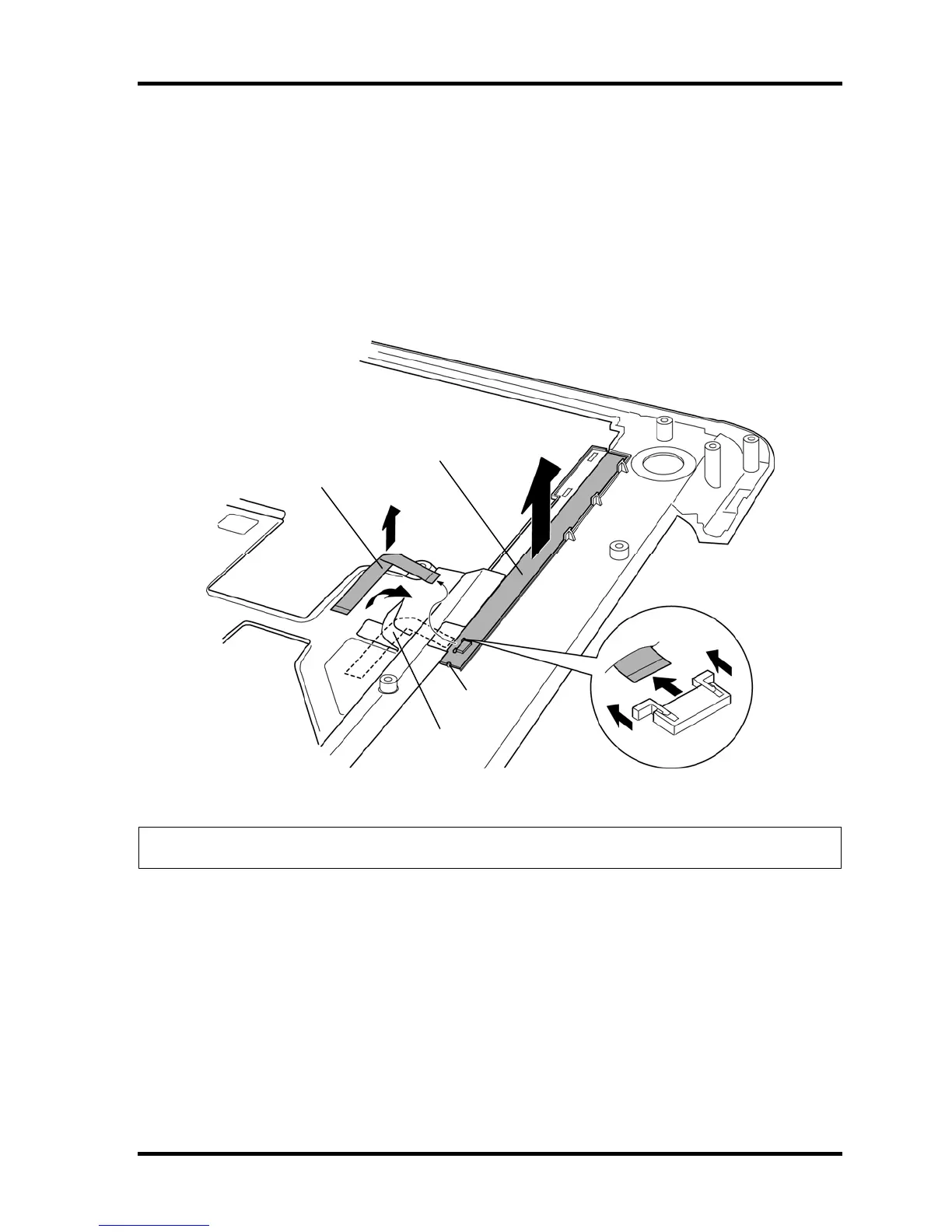

Figure 4-18 Removing the touch sensor
NOTE: Do not reuse the touch sensor. Be sure to use a new touch sensor.
Installing the Touch sensor
To install the Touch sensor, follow the steps below and refer to Figure 4-18.
1. Connect the touch sensor FFC to the connector on a new touch sensor.
2. Stick the touch sensor along the guide and arrange the touch sensor FFC under the
insulator.
