Appendix B Board Layout Appendices
B.3 USB/Sound board (FLEJK*) View
(front)
(back)

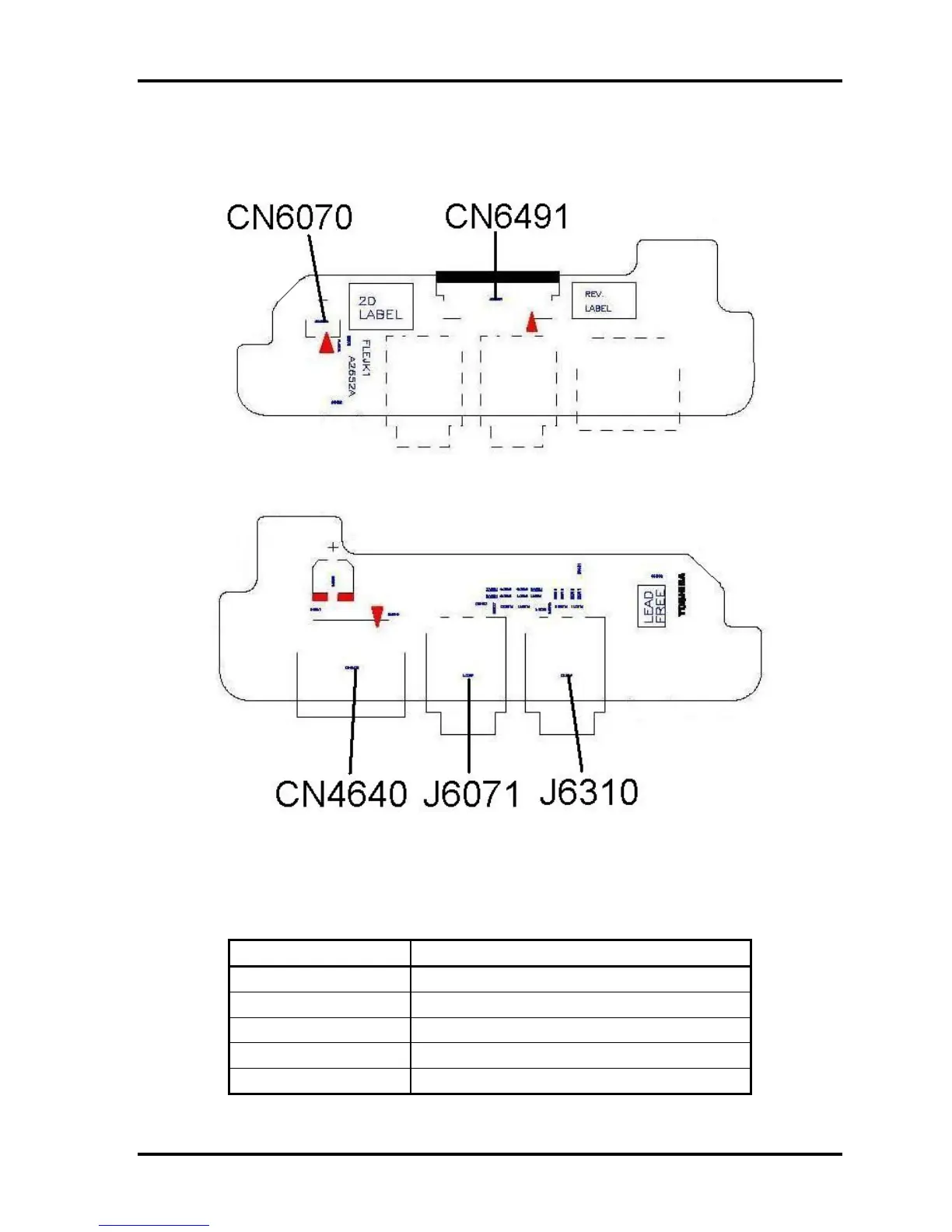

Figure B-3 USB/Sound board (FLEJK*) layout (front/back)
Table B- 3 USB/Sound board (FLEJK*) (FG5SN*) connector
Number Name
CN4640 USB interface connector
J6071 Microphone connector
J6310 Headphone connector
CN6070 Int-Mic interface connector
CN6491 System board interface connector
Qosmio F60 Serie Maintenance Manual (960-796) [CONFIDENTIAL] B-5
