4.16 Bluetooth module
Removing the Bluetooth module
To remove the Bluetooth module, follow the steps below and refer to Figure 4-25.
1. Peel off the acetate tape and disconnect the Bluetooth harness from the connector
CN4440 on the system board.
2. Remove the following screw and Bluetooth holder (with the Bluetooth module).
 M2.04B BIND screw 1
3. Remove the Bluetooth module from the Bluetooth holder.
M2.0x4B BIND
Bluetooth ha
rness
Bluetooth holder
Bluetooth module
A
cetate tape
Guide
CN4440

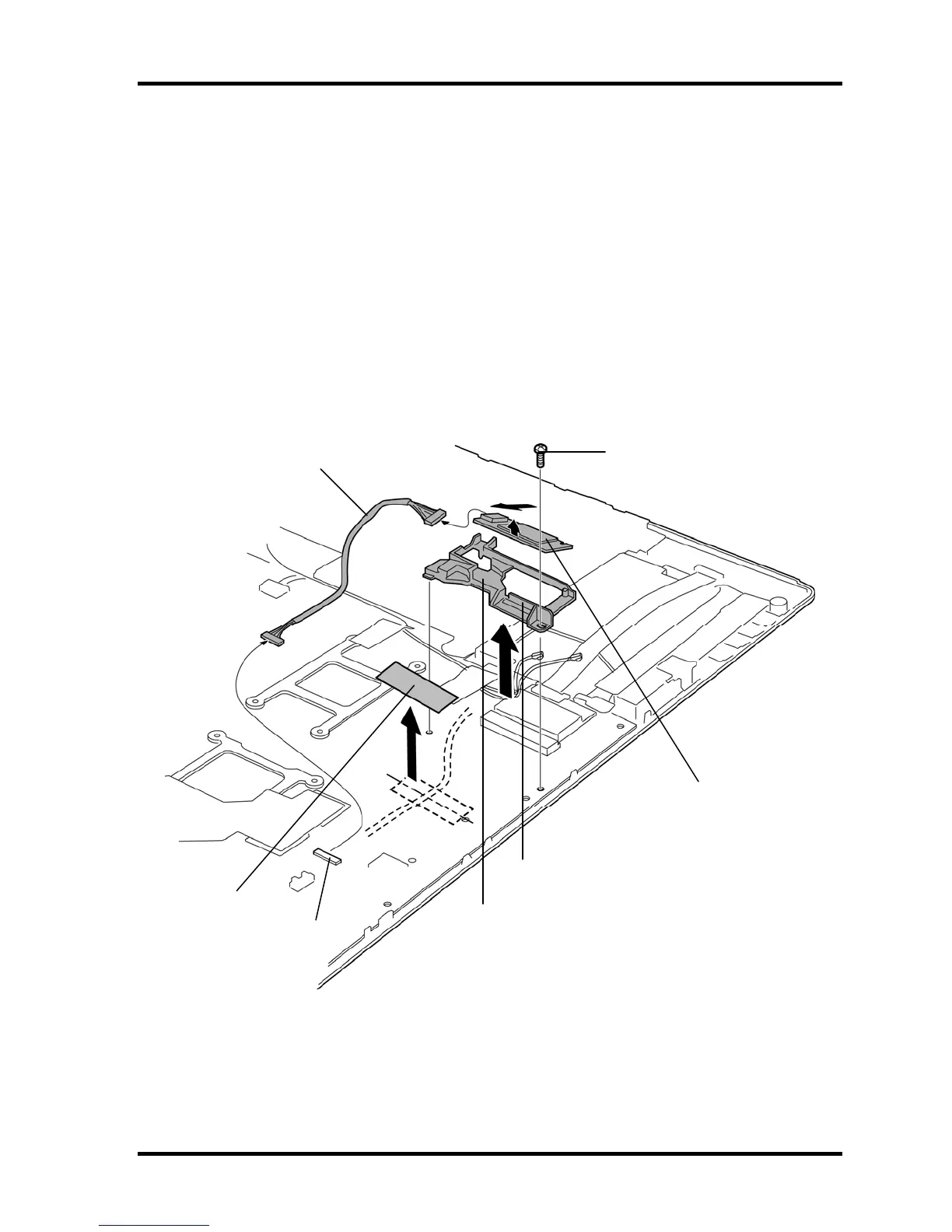

Figure 4-25 Removing the Bluetooth module
4-42 [CONFIDENTIAL] QOSMIO F60 Maintenance Manual (960-796)
