4.19 LCD assembly/Base assembly
Removing the LCD assembly/Base assembly
To remove the LCD assembly/base assembly, follow the steps below and refer to Figure 4-28
and 4-29.
1. Peel off the acetate tapes and insulator (WLAN LOW INSIALATOR) and release
the wireless LAN antenna cables from the guides.
2. Disconnect the LCD harness and camera harness from the connectors CN5300 and
CN9550 on the system board.
3. Turn up the insulator and release the LCD harness.
4. Remove the following screws securing the LCD assembly and base assembly.
 M2.56B FLAT HEAD screw 3
M2.5x6B FLAT HEAD
Camera harness
CN5300
LCD har
ness
Drain wire
M2.5x6B FLAT HEAD
Insulator
M2.5x6B FLAT HEAD
A
cetate tape
Insulator
Wireless LAN antenna c
able
CN9550

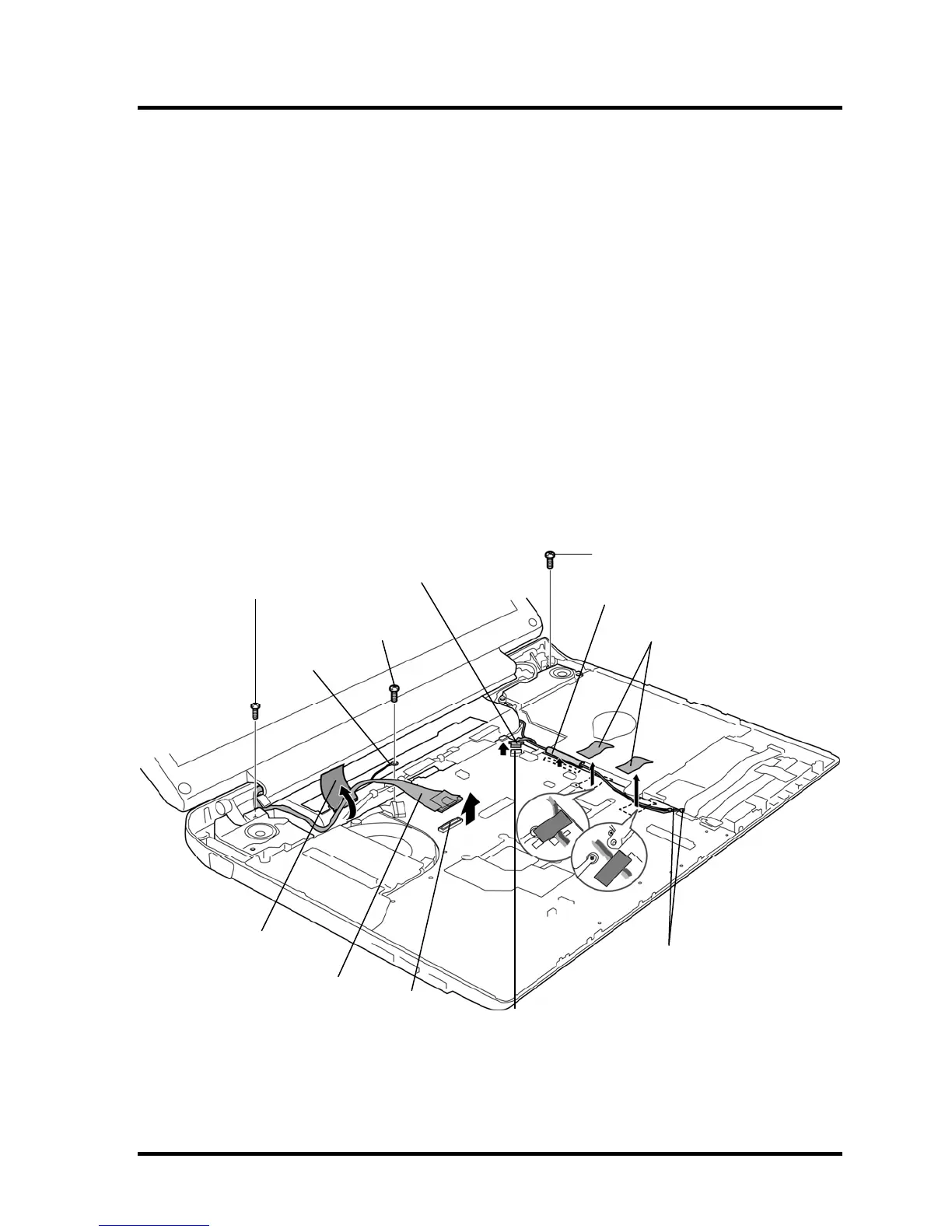

Figure 4-28 Removing the LCD assembly/base assembly (1)
QOSMIO F60 Maintenance Manual (960-796) [CONFIDENTIAL] 4-47
