Disassembling the ODD Drive
NOTE: Do not disassemble the ODD drive when it is working normally. Disassemble or
replace the ODD drive only if it fails.
Disassemble the ODD drive according to the following procedures and Figure 4-11.
1. Remove two M2x3 screws.
2. Remove the bracket.

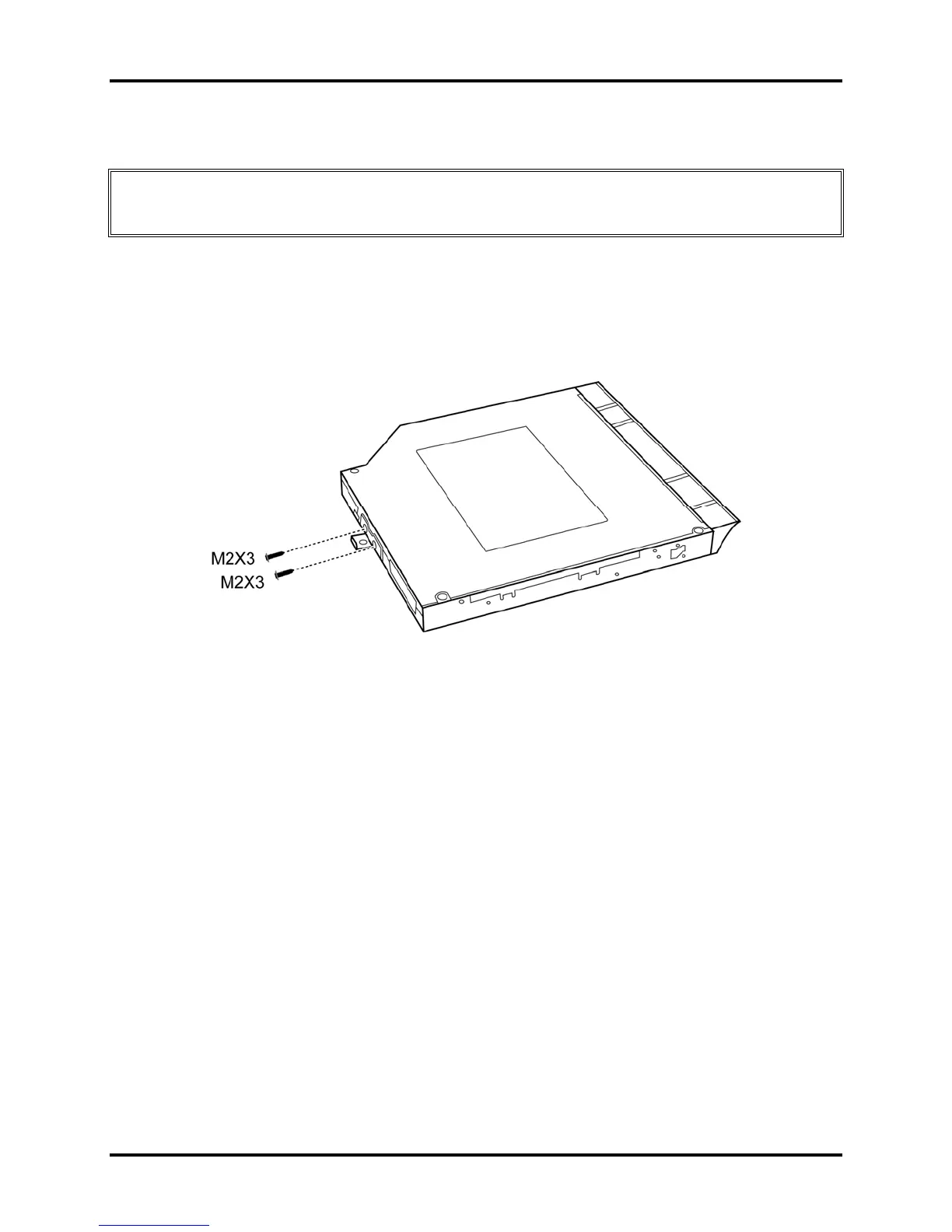

Figure 4-11 Removing the bracket from the ODD drive
3. Take one paper clip insert ODD bezel emergency hole injection the ODD module, then
remove ODD bezel left side snap hook.
Assembling the ODD Drive
Assemble the ODD drive according to the following procedures and Figure 4-11.
1. Place the ODD bracket in the correct position and secure it to the drive.
2. Seat the bracket and secure it with two M2x3 screws.
