4.18 VGA Board and VGA Cooling Module
Removing the VGA Board and VGA Cooling Module
Remove the VGA Board and VGA Cooling Module according to the following procedures and
Figure 4-25.
1. Remove four M2.5x4 screws on the VGA board.

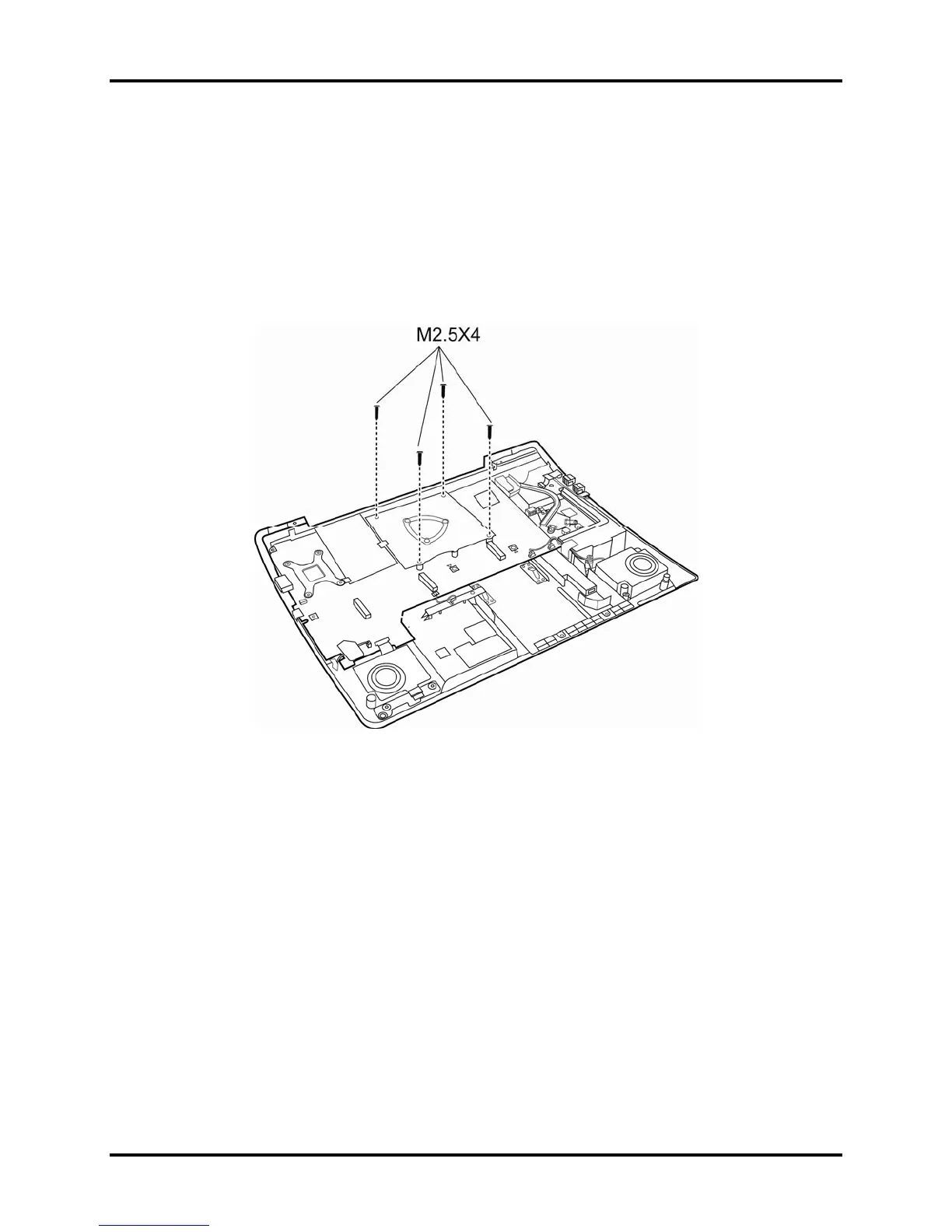

Figure 4-25 Removing VGA board screws
2. Remove three spring screws securing the VGA Cooling Module and VGA Board.
Qosmio X300 Maintenance Manual 4-45
