Error! Style not defined. Error! Style not defined. 4 Replacement Procedures
Installing the VGA Board and VGA Cooling Module
Install the VGA Board and VGA Cooling Module according to the following procedures and
Figure 4-27.
1. Seat the VGA Cooling Module on the VGA board.
2. Secure the VGA board with three spring screws.
3. Secure the VGA board with four M2.5x4 screws.
CAUTION: If you remove the VGA Cooling Module, please use soft cloth with alcohol to
clean the VGA board and VGA Cooling Module. Reapply Shinetsu 7762 grease before
installing the VGA Cooling Module. If you use one new VGA Cooling module, please make
sure remove the release paper firstly.

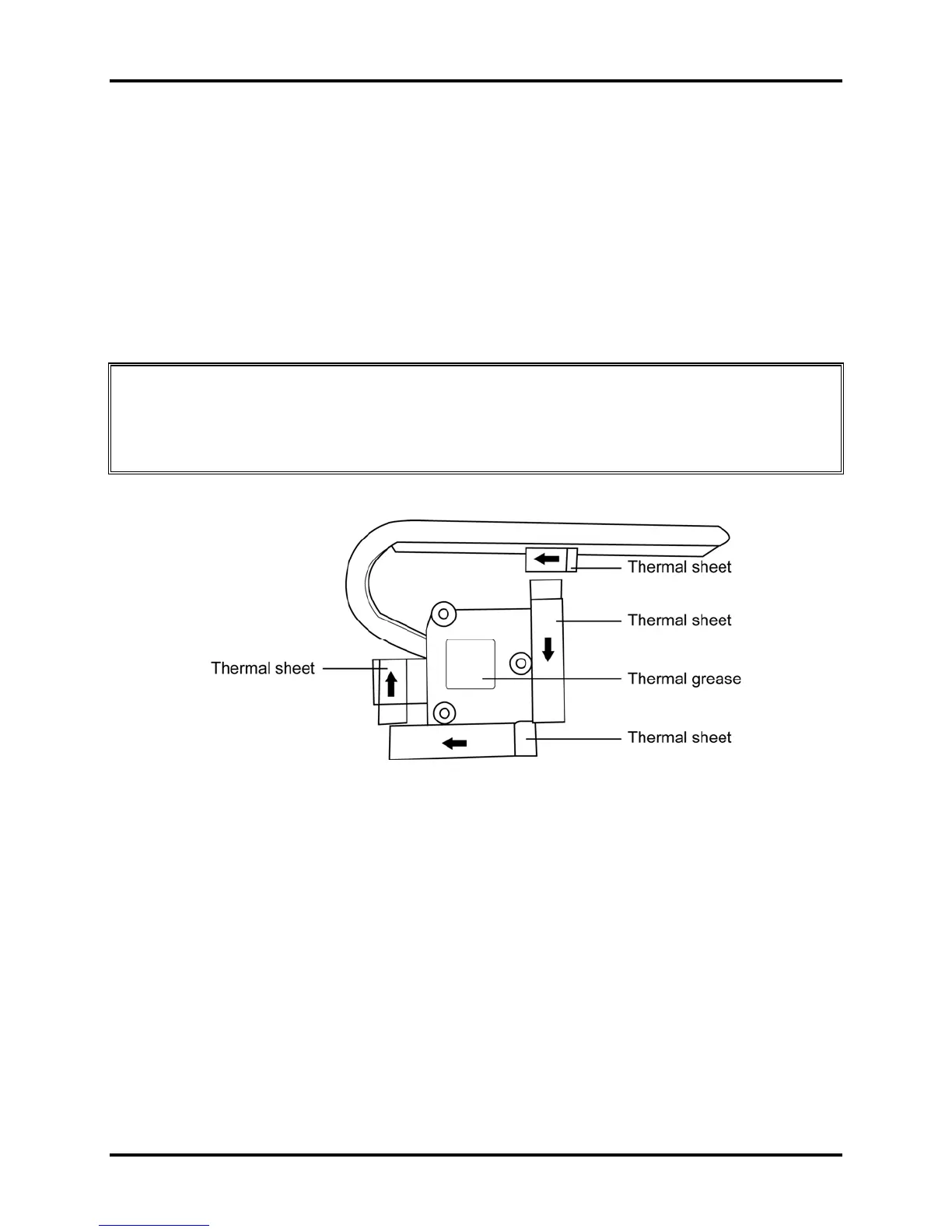

Figure
4-27 Removing the release paper from the VGA Cooling Module
Qosmio X300 Maintenance Manual 4-47
