5. Remove the display module.

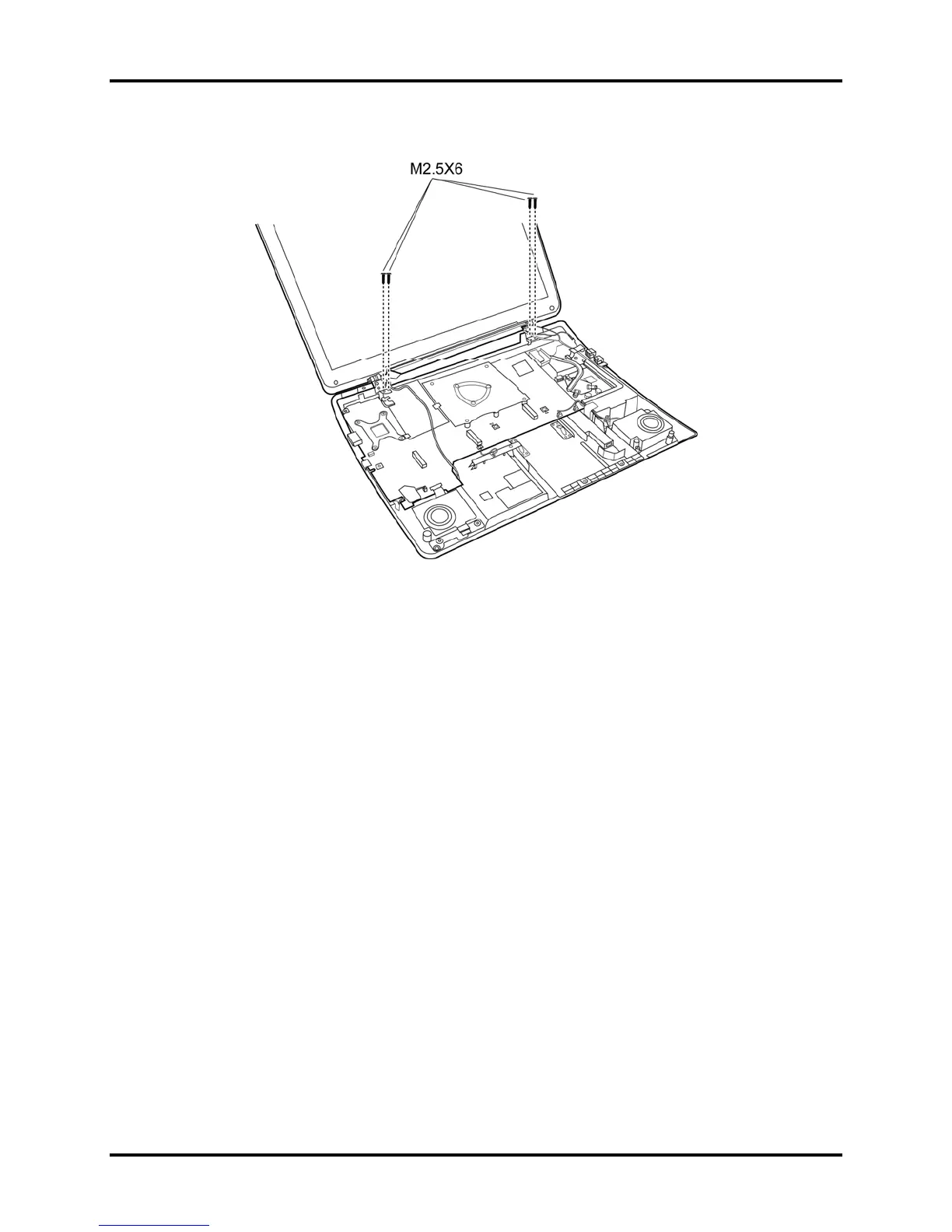

Figure 4-17 Removing the display assembly
Installing the Display Assembly
Install the display assembly according to the following procedures and Figures 4-16, 4-17.
1. Place the display panel in the correct position.
2. Connect the display cables to the system board.
3. Secure the display assembly with four M2.5x6 screws.
4. Close the display panel and turn the computer so the rear is facing you and secure two
M2.5x6 screws.
Qosmio X300 Maintenance Manual 4-33
