4.10 Top Cover
Removing the Top Cover
Remove the top cover according to the following procedures and Figures 4-14 and 4-15.
1. Turn the computer upside down and remove the following 18 screws:
− fourteen M2.5x10 screws
− two M2.5x6 screws
− two M2.5x4 screws

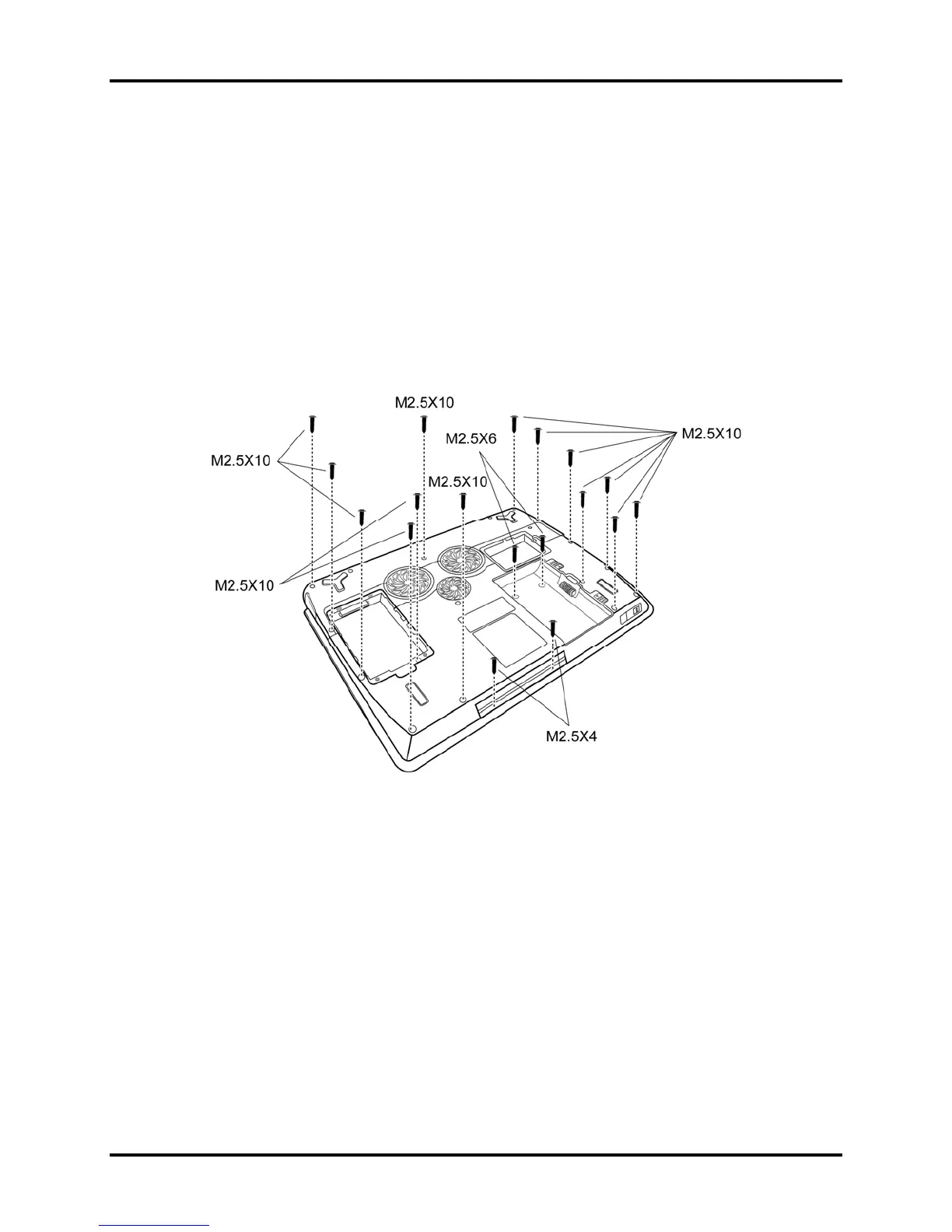

Figure 4-14 Removing the screws from the bottom of the computer
2. Turn the computer right side up.
3. Remove three M2.5x10 black flat head screw.
4. Disconnect the eight cables as indicated by arrow in the following figure.
Qosmio X300 Maintenance Manual 4-29
