4.25 FL Inverter Board
Removing the FL Inverter Board
Remove the FL inverter board according to the following procedures and Figure 4-39.
1. Remove one M2x4 screw and disconnect wires.
2. Lift the LCD module and FL inverter board.

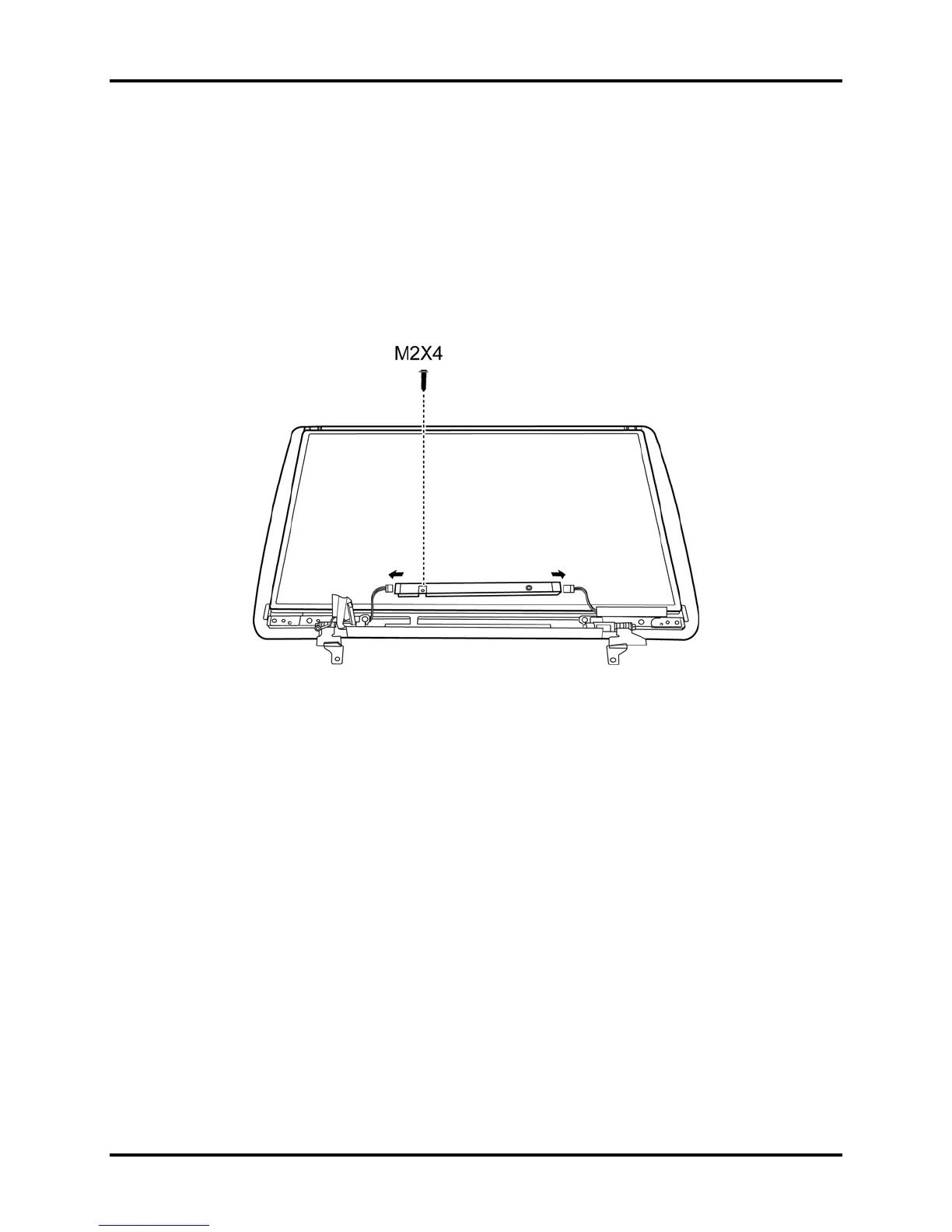

Figure 4-39 Removing the FL Inverter board
Installing the FL Inverter Board
Install the FL inverter board according to the following procedures and Figure 4-39.
1. Seat the LCD module, FL inverter board in the correct position.
2. Secure the FL inverter board with one M2x4 screw and connect the wires.
Qosmio X300 Maintenance Manual 4-60
