4.24 Display Mask
Removing the Display Mask
Remove the display mask according to the following procedures and Figure 4-38.
1. Remove six mask seals from the display mask.
2. Remove six M2.5x6 screws.
3. Follow the direction indicated by arrows in the figure to apply some force to release the
mask from the base.

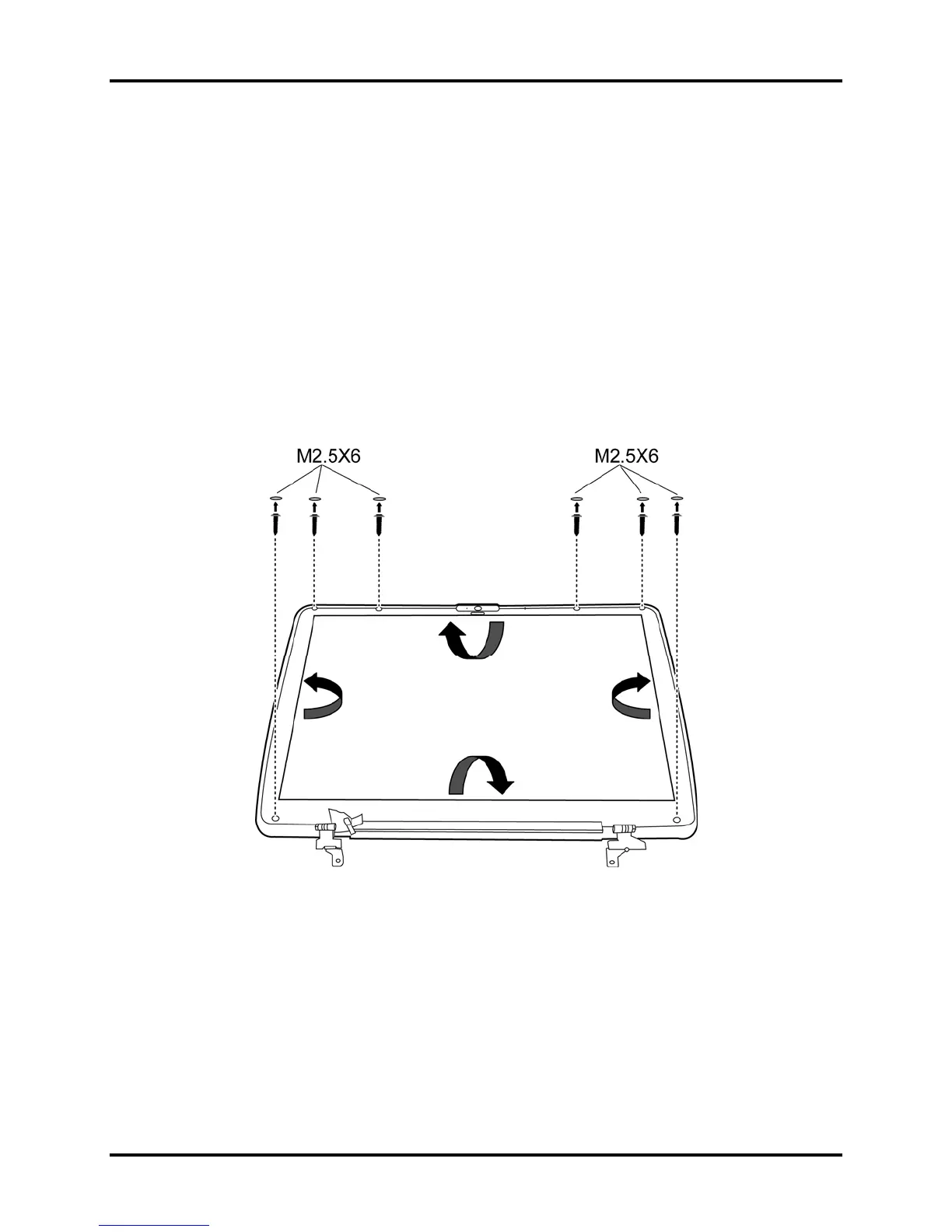

Figure 4-38 Removing the display mask
Qosmio X300 Maintenance Manual 4-58
