4.16 Audio Card
Removing the Audio Card
Remove the audio card according to the following procedures and Figure 4-23.
1. Release one audio card flat cable from the wire guide.
2. Remove one M2.5x4 screw.
3. Separate the card from the top cover.

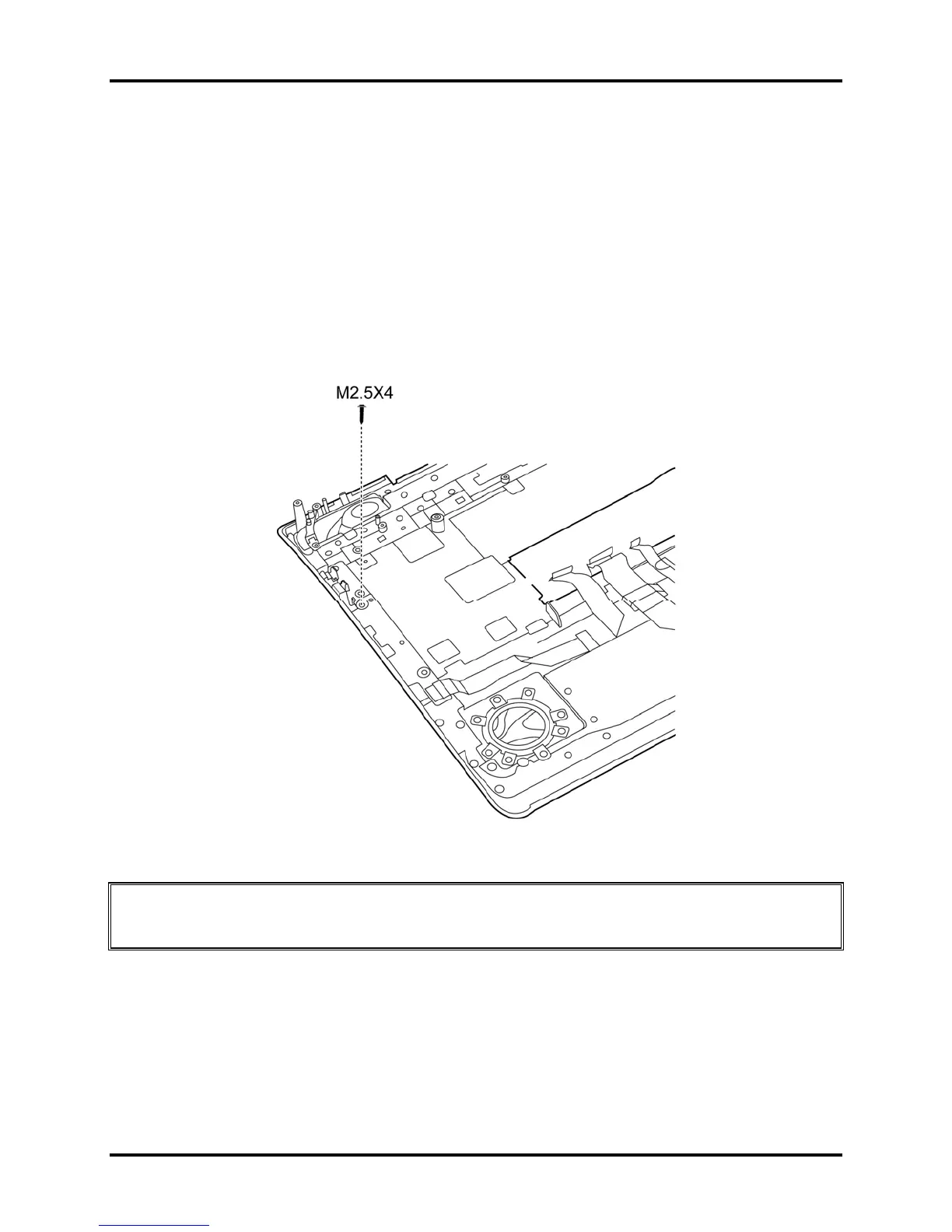

Figure 4-23 Removing the audio card
Note: Be careful of the kill switch button for the audio board. It can be damaged when
installing the audio board. Make sure it is in the correct position.
Qosmio X300 Maintenance Manual 4-41
