4 Replacement Procedures Error! Style not defined. Error! Style not defined.
4.22 Bluetooth, Wi-Fi Switch, and Touch Pad LED Board
Removing Bluetooth, Wi-Fi Switch, and Touch Pad LED Board
Remove Bluetooth, Wi-Fi Switch, and Touch Pad LED Board according to the following
procedures and Figure 4-36.
1. Remove one M2.5x4 screw to separate the Wi-Fi Switch from the board.
2. Remove one M2.5x4 screw to separate the Touch Pad LED board.
3. Remove the Blutooth card by lifting it up from the board with a gentle pull.

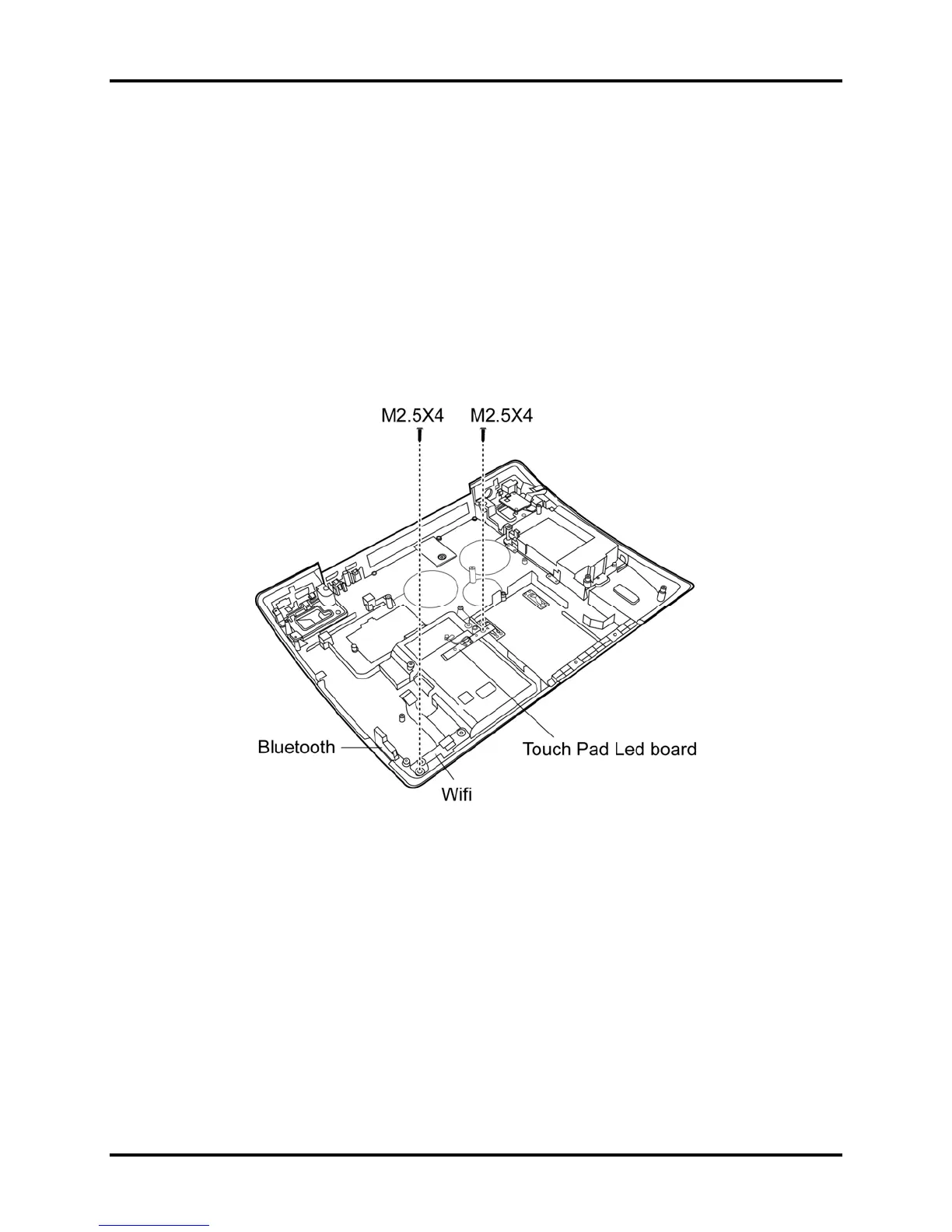

Figure
4-36 Removing Bluetooth, Wi-Fi Switch, and Touch Pad LED Board
Installing Bluetooth, Wi-Fi Switch, and Touch Pad LED Board
Install Bluetooth, Wi-Fi Switch, and Touch Pad LED Board according to the following
procedures and Figure 4-36.
1. Secure the Wi-Fi Switch to the board with one M2.5x4 screw.
2. Secure the Touch Pad LED board to the board with one M2.5x4 screw.
3. Gently push down the Blutooth card into the bluetooth slot on the board.
Qosmio X300 Maintenance Manual 4-56
