Triumph Speed Twin 900 User Manual

MAINTENANCE AND ADJUSTMENT
138
Warning
The battery contains harmful
materials. Always keep children and
pets away from the battery at all
times.

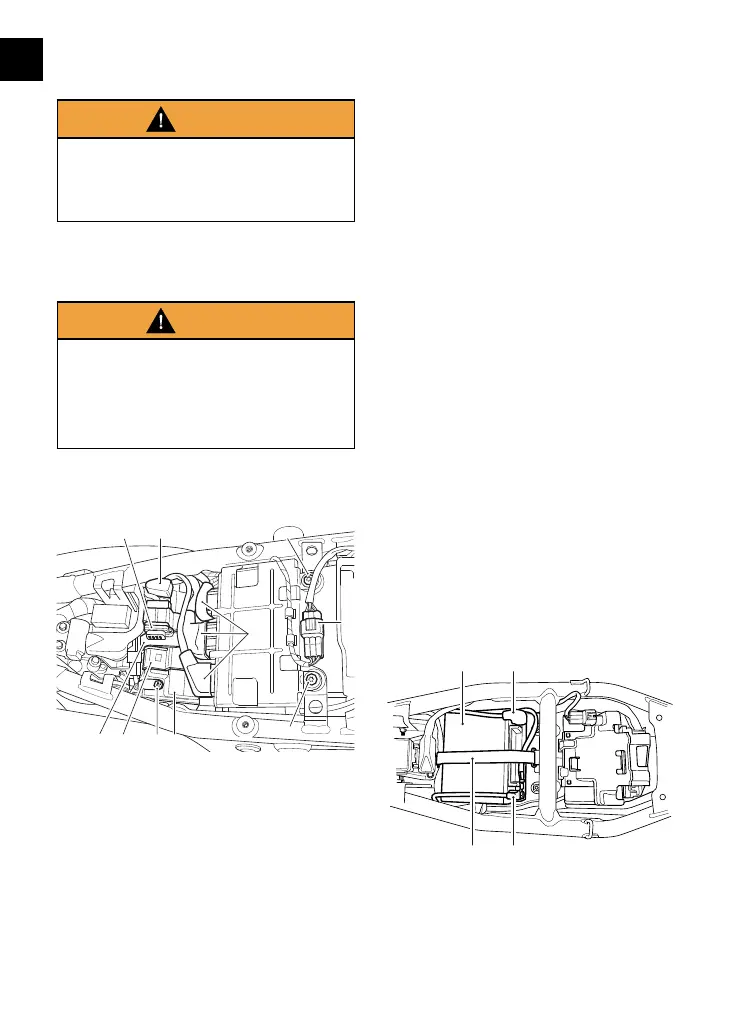

Battery Removal
Warning
Make sure that the battery terminals
do not touch the motorcycle frame.
This may cause a short circuit or spark
which would ignite battery gases
causing a risk of personal injury.
All Models except Speed Twin 1200 and
Thruxton RS
2
4
3
5
1
8
679
3
1. USB socket
2. Positive (+) terminal
3. Engine Control Module (ECM) fasteners
4. Accessory cable
5. Connectors
6. Battery
7. Negative (-) terminal
8. Battery cover
9. Battery strap
To remove the battery:
▼ Remove the seat (see page 71).
▼ Disconnect the battery leads,
negative (black) lead first and then
the positive (red) lead.
▼ Release the accessory connector.
▼ Carefully release the accessory
connector cable from the ECM unit
clips.
▼ Loosen the fasteners on the ECM
unit.
▼ Release the three connectors to the
ECM unit.
▼ Carefully lift the ECM unit and place
to the side allowing access to the
battery.
Note
Make sure that the ECM unit is handled
with care during the battery removal or
installation process.
▼ Detach the USB port socket.
▼ Remove the battery strap.
▼ Remove the battery cover.
▼ Carefully remove the battery from
the motorcycle.
Speed Twin 1200 and Thruxton RS Only
3
12
4
1. Battery
2. Positive (+) terminal
3. Negative (-) terminal
4. Battery strap

Triumph Speed Twin 900 Specifications

General

Displacement	900 cc
Bore x Stroke	84.6 mm x 80 mm
Compression Ratio	11.0:1
Max Power	65 PS / 64.1 bhp (47.8 kW) @ 7, 500 rpm
Max Torque	80 Nm @ 3, 800 rpm
Fuel System	Multipoint sequential electronic fuel injection
Final Drive	Chain
Clutch	Wet, multi-plate assist clutch
Gearbox	5-speed
Frame	Tubular steel, twin cradle frame
Front Tire	100/90-18
Rear Tire	150/70 R17
Engine Type	Liquid-cooled, 8 valve, SOHC, 270° crank angle parallel twin
Exhaust	Brushed 2 into 2 exhaust system with twin silencers
Front Suspension	41mm telescopic forks, 120mm travel
Rear Suspension	Twin shocks, adjustable preload, 120mm rear wheel travel
Front Brakes	Single 310 mm disc, Brembo 4 piston caliper, ABS
Rear Brakes	Single 255mm disc, Nissin 2 piston floating caliper, ABS
Front Wheel	Cast aluminium alloy, 18 x 2.75 in
Rear Wheel	Cast aluminium alloy, 17 x 4.25 in
Seat Height	765 mm
Fuel Tank Capacity	12 litres
Dry Weight	198 kg
Width Handlebars	760 mm
Height Without Mirror	1110 mm
Wheelbase	1450 mm
