MAINTENANCE AND ADJUSTMENT
142

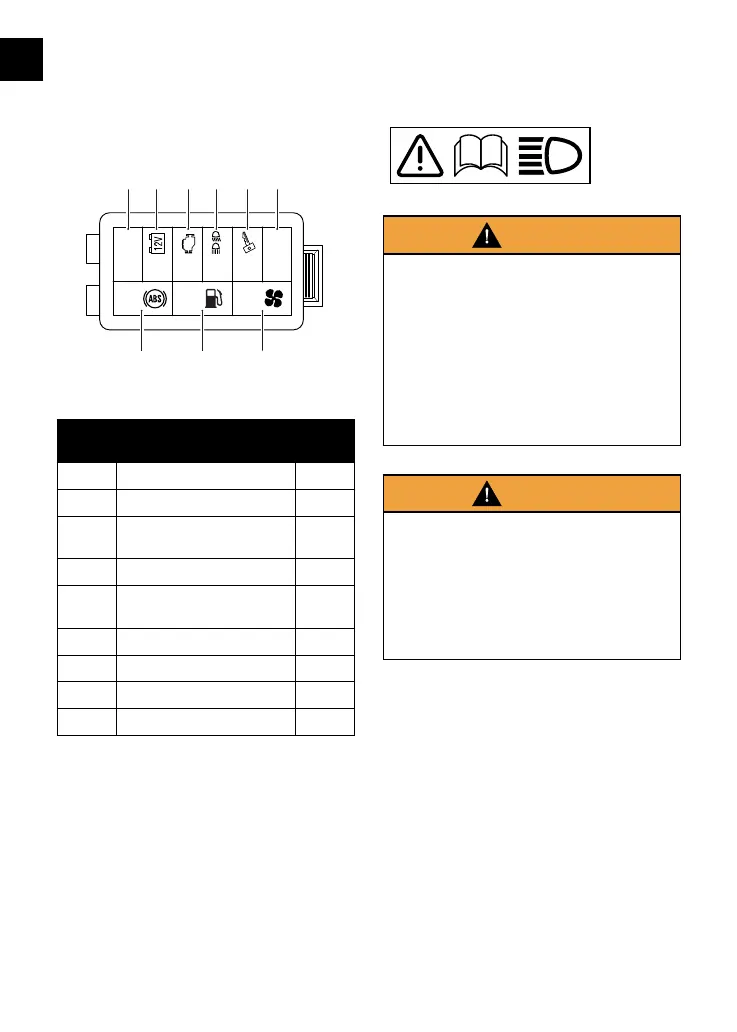

The fuse box is located underneath the
seat. To allow access to the fuse box,
the seat must be removed (see page 71).
.5A ACC
7
15A
15A
15A
.5A
7
5A AUX
25A 10A 15A
15
6
7
2 34
89
Fuse Box
Position Circuit Protected
Rating
(Amps)
1 Accessory socket 7. 5
2 Battery 15
3
Engine Management System
(EMS)
15
4 Lighting 15
5
Ignition switch, starter
circuit
7. 5
6 USB port socket 5
7 ABS 25
8 Fuel pump 10
9 Cooling fan 15
Headlights
Warning
Adjust road speed to suit the visibility
and weather conditions in which the
motorcycle is being operated.
Make sure that the head light beam is
adjusted to illuminate the road surface
sufficiently far ahead without blinding
oncoming traffic.
An incorrectly adjusted headlight may
impair visibility causing an accident.
Warning
Never attempt to adjust a headlight
beam when the motorcycle is in
motion.
Any attempt to adjust a headlight
beam when the motorcycle is in
motion may result in loss of control
and an accident.

Triumph Speed Twin 900 Specifications

General

Displacement	900 cc
Bore x Stroke	84.6 mm x 80 mm
Compression Ratio	11.0:1
Max Power	65 PS / 64.1 bhp (47.8 kW) @ 7, 500 rpm
Max Torque	80 Nm @ 3, 800 rpm
Fuel System	Multipoint sequential electronic fuel injection
Final Drive	Chain
Clutch	Wet, multi-plate assist clutch
Gearbox	5-speed
Frame	Tubular steel, twin cradle frame
Front Tire	100/90-18
Rear Tire	150/70 R17
Engine Type	Liquid-cooled, 8 valve, SOHC, 270° crank angle parallel twin
Exhaust	Brushed 2 into 2 exhaust system with twin silencers
Front Suspension	41mm telescopic forks, 120mm travel
Rear Suspension	Twin shocks, adjustable preload, 120mm rear wheel travel
Front Brakes	Single 310 mm disc, Brembo 4 piston caliper, ABS
Rear Brakes	Single 255mm disc, Nissin 2 piston floating caliper, ABS
Front Wheel	Cast aluminium alloy, 18 x 2.75 in
Rear Wheel	Cast aluminium alloy, 17 x 4.25 in
Seat Height	765 mm
Fuel Tank Capacity	12 litres
Dry Weight	198 kg
Width Handlebars	760 mm
Height Without Mirror	1110 mm
Wheelbase	1450 mm
