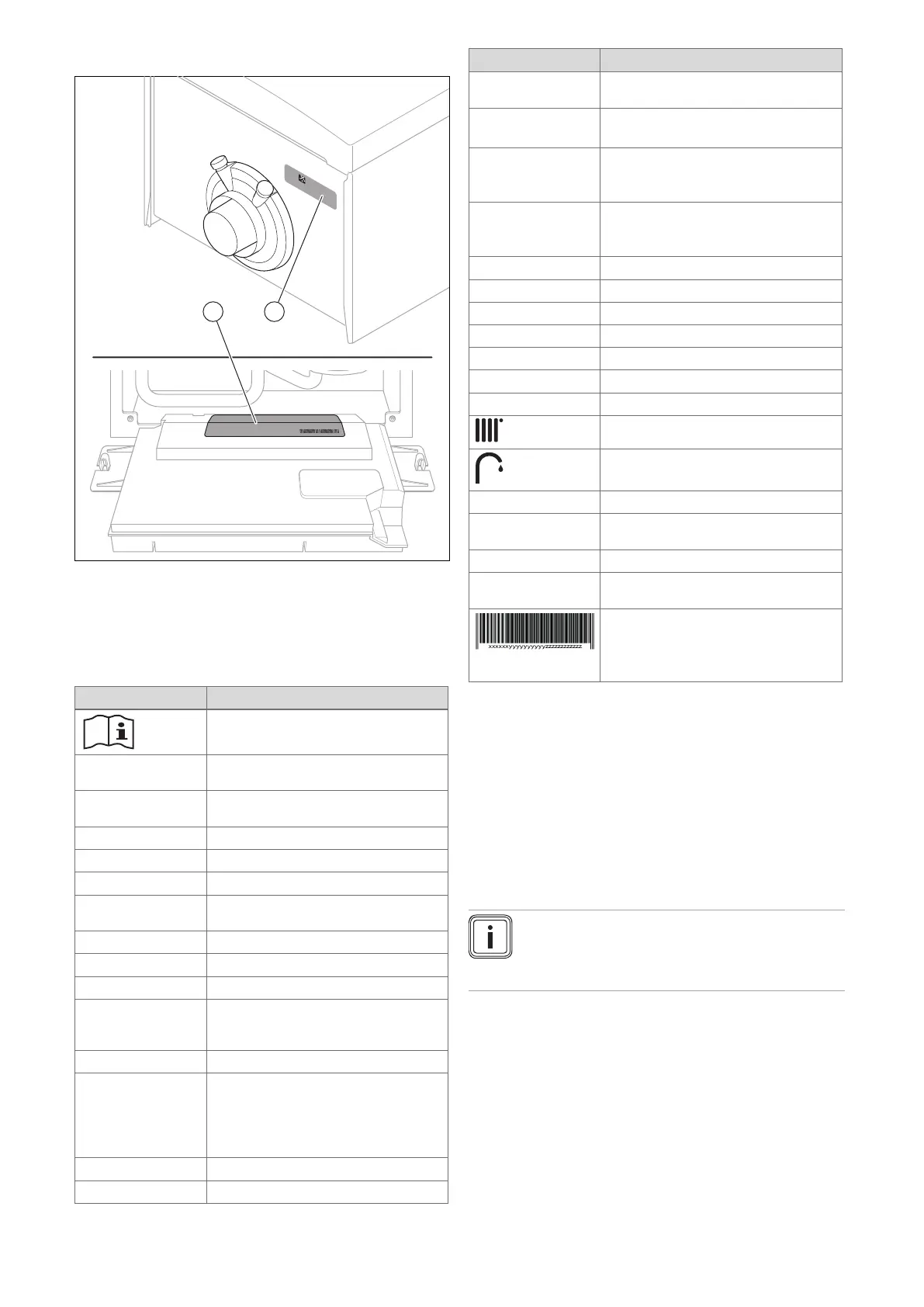

5.5 Data plate
Two data plates are attached to the product at the factory.
The data plate on the top of the unit (2) is always accessible
and contains the basic information for the chimney sweep.
The main data plate (1) with all of the information is attached
to the rear of the electronics box. Any information that is not
listed here can be found in separate sections.
Information Meaning
Read the instructions.
E.g. VC, VU, VM,
VHR S
Product without integrated domestic hot
water generation (boiler)
E.g. VCW, VUW,
VMW, VHR
Product with integrated domestic hot
water generation (combi boiler)
10 - 43 Nominal heat output
C Condensing boiler
S Stainless steel heat exchanger
F ExtraCondense, stainless steel heat
exchanger
/1 Product generation
-5 Product equipment
E.g. N, E Gas group
E.g. AT, BE, CH,
DE, DK, ES, FR, IT,
NL, NO, PL, SE
Designated country
ecoTEC plus Marketing name
E.g. I2N, 2N, I2EL-
wLs, I2H, G20/G27 –
20 mbar (2.0 kPa)
E.g. I3P, G31 –
37 mbar (3.7 kPa)
Gas group and gas connection pressure
as set at the factory
Kat. Gas boiler category
Type Unit types
Information Meaning
PMS Permissible operating pressure, heating
mode
Pnw
(For boiler only)
Maximum output power
PMW
(For combi boiler
only)
Permissible operating pressure for do-
mestic hot water mode
D
(For combi boiler
only)
Specific domestic hot water flow rate
value
DSN Device specific number
NOx-class NOx class (nitrogen oxide emissions)
T
max
Maximum flow temperature
V Mains voltage
Hz Mains frequency
W Maximum electrical power consumption
IP IP rating
Heating mode
DHW mode
P
n
Nominal heat output range (80/60 °C)
P
nc
Condensing nominal heat output range
(50/30 °C)
Q
n
Heat input range
Q
nw
Heat input range for domestic hot water
generation
Barcode with serial number
3rd to 6th digits = production date
(year/week)
7th to 16th digit = product article number
5.6 Serial number
The serial numbers are located on the underside of the front
panel and on the data plate.
5.7 Sitherm Pro™ technology
The intelligent combustion regulation is based on the adapt-
ive Siemens Sitherm Pro™ combustion optimisation.
5.8 Display of the energy consumption, energy
yields and efficiencies
Note
When replacing the PCB, the values recorded up
to that point are completely reset in the product
and system control.
The product, the system control and the app show approx-
imate values for energy consumption, energy yields and ef-
ficiencies, which are extrapolated based on calculation al-
gorithms.
The values that are displayed in the app may differ from the
other display options due to staggered transfer intervals.
The determined values depend on:
– Installation and system of the heating installation
– User behaviour
