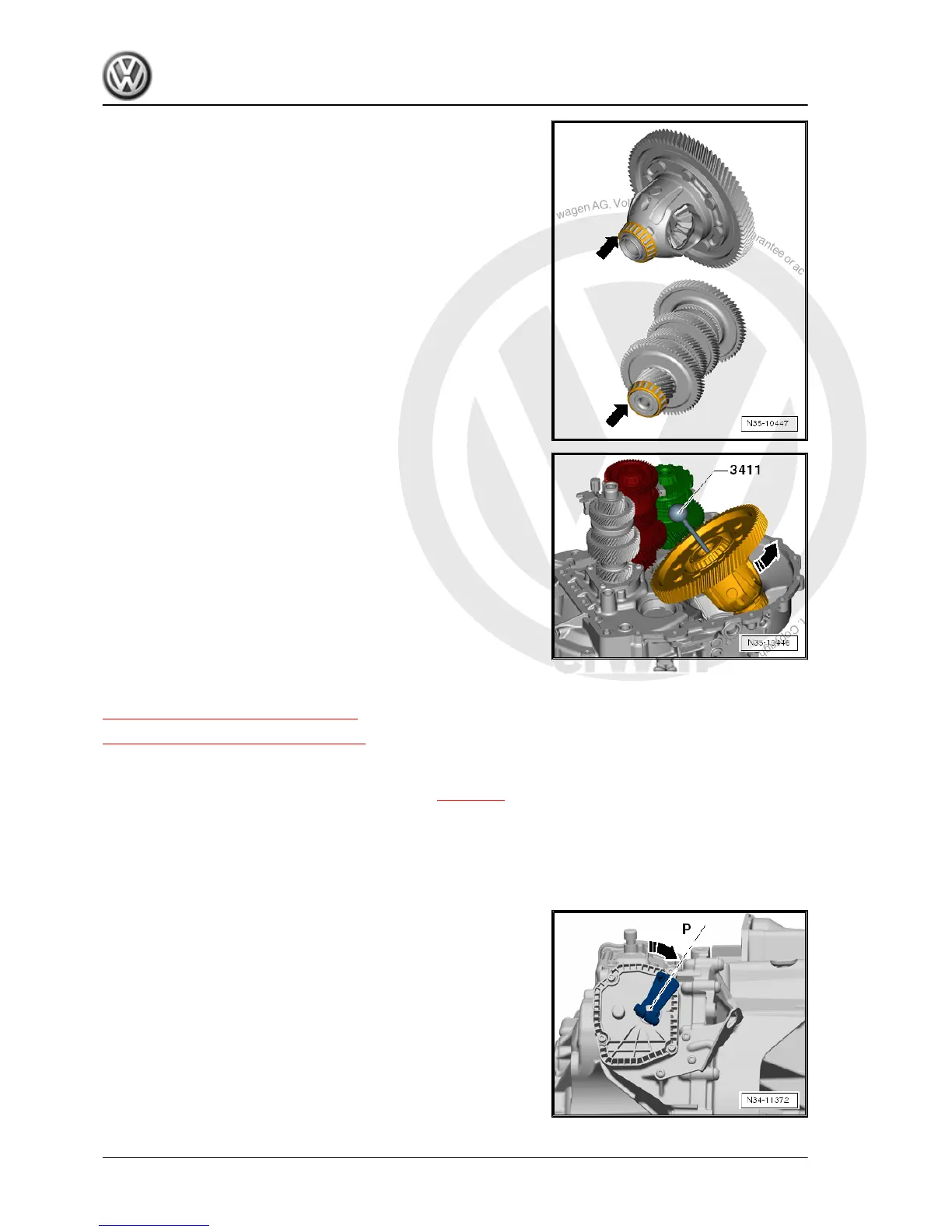

For every installation on shafts, always check »lower« bearing. It
is easy for bearing cages to become bent and damaged by
»bumping«.
Bearing races are not allowed to be swapped over. They are
paired with the bearing.
Always renew the bearings on a shaft together.
Example:
Always use guide pins -3411- to install differential. Take care not
to bump lower bearing.
6.2 Dismantling and assembling gearbox
⇒ “6.2.1 Dismantling gearbox”, page 96
⇒ “6.2.2 Assembling gearbox”, page 103
6.2.1 Dismantling gearbox
– Secure gearbox on engine and gearbox support ⇒ page 93 .
Prerequisites
• Clutch is removed
• Mechatronic unit is removed
• Gear oil is drained
– Engage parking lock.
Golf 2013 ➤
7-speed dual clutch gearbox 0CW - Edition 10.2012
96 Rep. gr.34 - Controls, housing
