35 – Gears, shafts
1 Input shaft
⇒ “1.1 Dismantling and assembling input shaft”, page 123
1.1 Dismantling and assembling input shaft
⇒ “1.1.1 Dismantling and assembling outer input shaft”,
page 123
⇒ “1.1.2 Dismantling and assembling inner input shaft”,
page 124

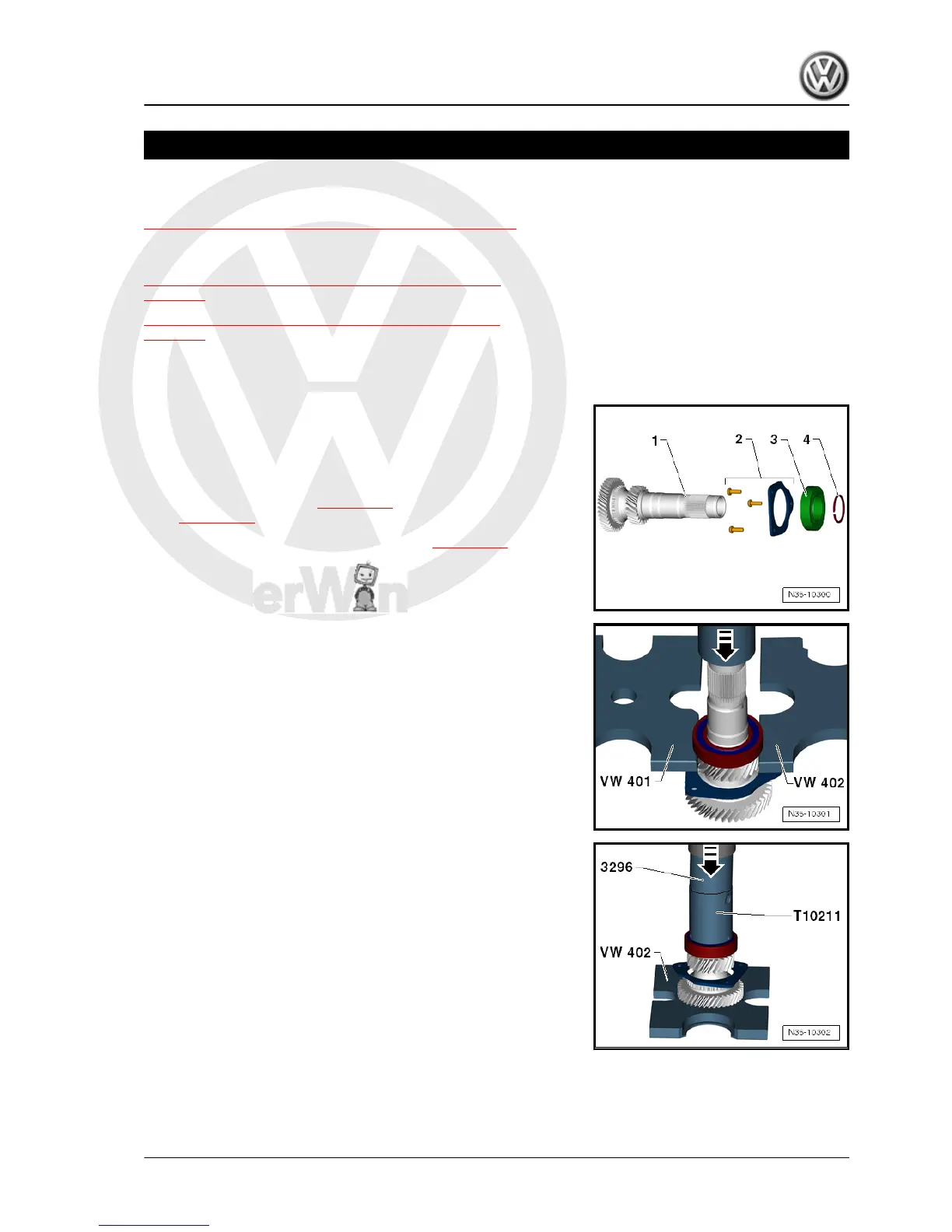

1.1.1 Dismantling and assembling outer input
shaft
Overview
1 - Outer input shaft
2 - Retaining plate with bolts: lettering faces the gears - smooth
side towards the bearing
3 - Bearing: pressing off ⇒ page 123 ; pressing on
⇒ page 123
4 - Determining thickness of retaining ring ⇒ page 124
Outer input shaft - pressing off bearing
The bearing is destroyed during pressing off and must be re‐
newed.
Outer input shaft - pressing on new bearing to stop
– Press bearing only over inner ring.
• Lettering on plate faces towards gears.
Golf 2013 ➤
7-speed dual clutch gearbox 0CW - Edition 10.2012
1. Input shaft 123
