13 - Bolts
❑ Always renew after removing.
❑ 8 Nm +90°
14 - Lower section of bushing
❑ Small small engaging lever “K 2”
❑ Is removed and installed together with small engaging lever and upper section of bushing
15 - Oil seal for inner input shaft
❑ Renewing ⇒ page 22
16 - Input shaft seal
❑ Renewing ⇒ page 20
1.2 Removing dual clutch
Special tools and workshop
equipment required

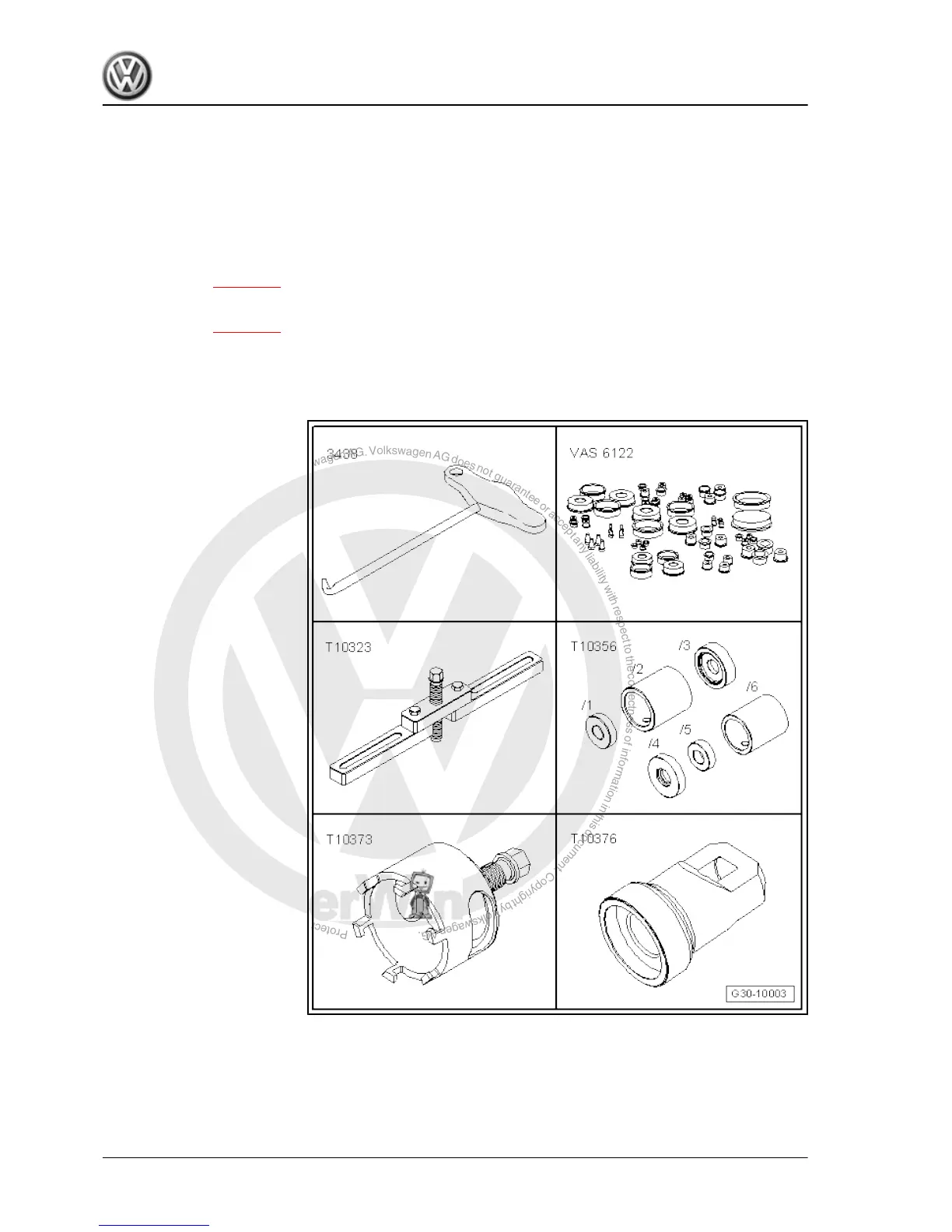

♦ Hook -3438-
♦ Engine bung set -VAS
6122-
♦ Support device -T10323-
♦ -T10356/5- from assembly
tool -T10356-
♦ Puller -T10373-
♦ Thrust piece -T10376-
♦ 1 x sealing cap -0AM 325
120 A- and 1 x sealing cap
-02M 409 120- , as an al‐
ternative to engine bung set
-VAS 6122-
Golf 2013 ➤
7-speed dual clutch gearbox 0CW - Edition 10.2012
12 Rep. gr.30 - Clutch
