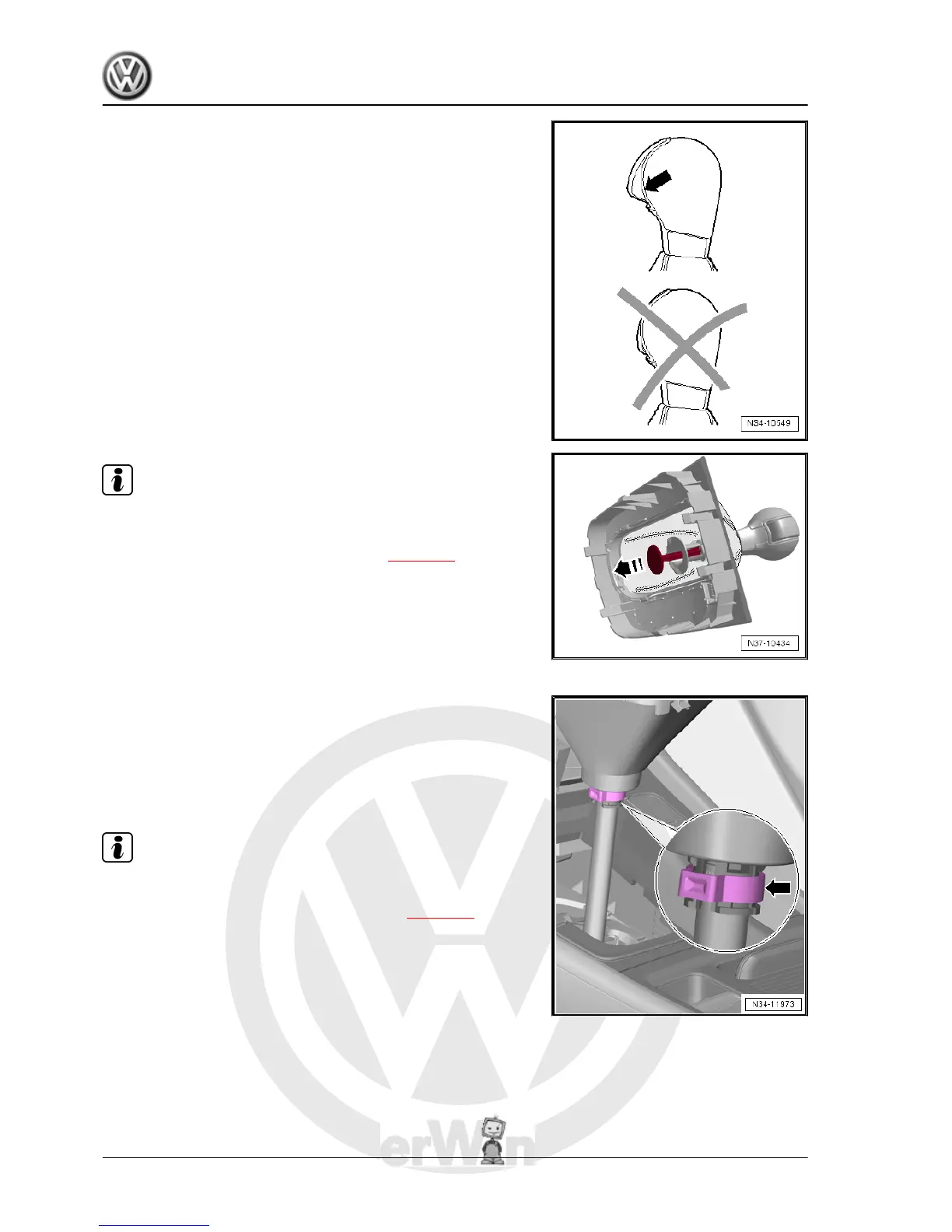

Note
♦ It is possible for the push button in the handle to be pressed.
Never install a handle with the push button pressed in.
♦ Move push button to installation position ⇒ page 60 .
♦ New handle is supplied with installation guard. Do not remove
guard until just before installing. To remove, pull out in direc‐
tion of -arrow-.
– Push handle fully onto selector lever and lock.
– Push sleeve downwards to lock.
Handle with clamp
– Push on handle with new clamp -arrow- onto stop.
– Secure clip with hose clip pliers -V.A.G 1275- .
– Connect electrical connector.
– Push push button after installing it.
Note
If not installed correctly, push button remains inserted in handle
after being pressed. If this happens, remove handle again and
move push button to installation position again ⇒ page 60 .
Then, fit the handle again.
– Clip cover in position.
2.4 Moving push button to installation posi‐
tion in the handle
If the push-button was pressed by mistake, the installation posi‐
tion can be restored.
Golf 2013 ➤
7-speed dual clutch gearbox 0CW - Edition 10.2012
60 Rep. gr.34 - Controls, housing
