– Renew needle bearing in crankshaft ⇒ Rep. gr. 13 ; Crank‐
shaft; Renewing needle bearing in crankshaft .
Transporting gearbox ⇒ page 90 .
Secure gearbox to assembly stand ⇒ page 93 .
Installing gearbox ⇒ page 86 .

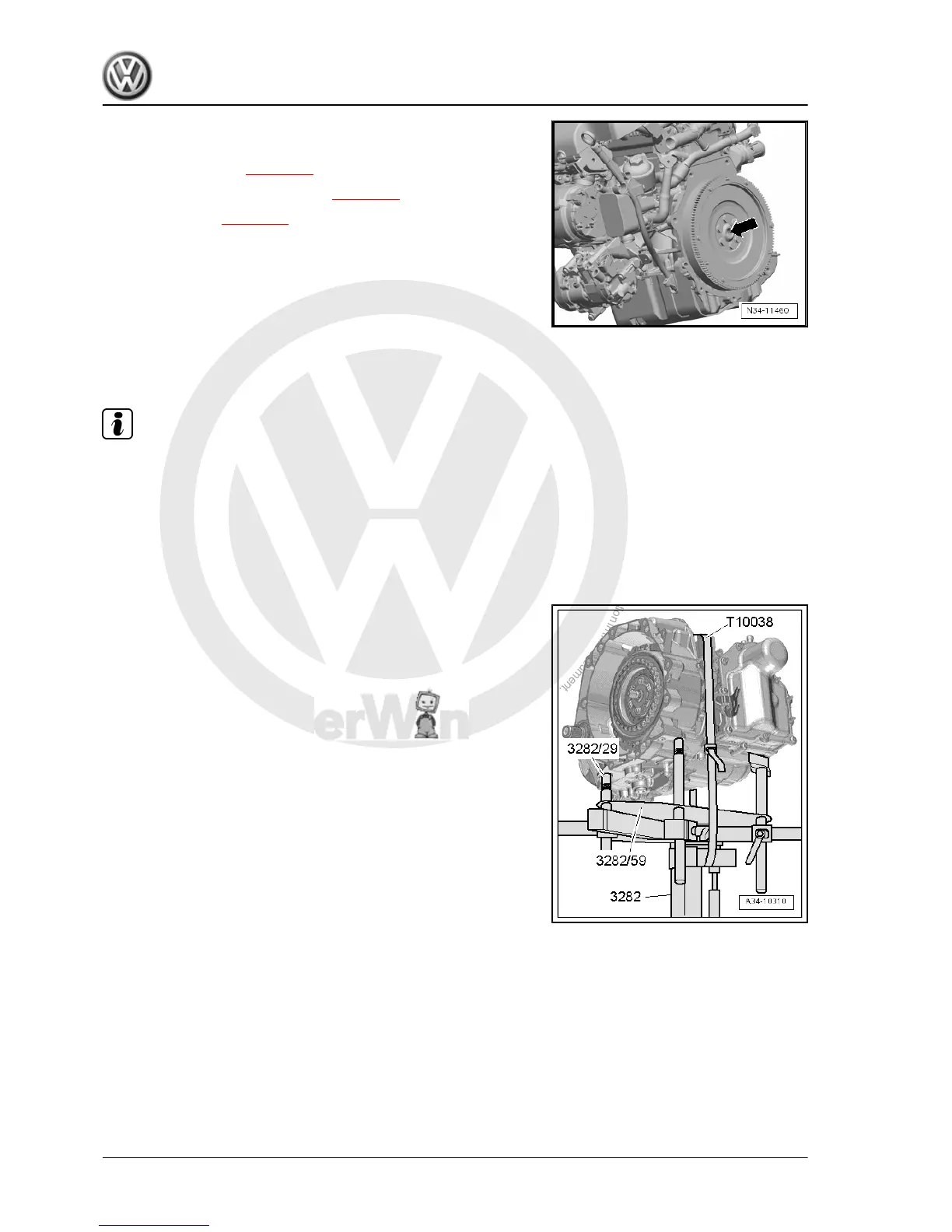

3.2 Installing gearbox
Install in reverse order of removal, observing the following:
Note
♦ Renew bolts which are tightened by turning through a speci‐
fied angle.
♦ Renew self-locking nuts and bolts, and seals, O-rings and
gaskets.
♦ Secure all hose connections with the correct type of hose clips
(same as original equipment) ⇒ Electronic Parts Catalog .
♦ Fit all cable ties in the original position when installing.
– Fit gearbox onto gearbox support -3282- and secure it in place.
– Clean input shaft splines and splines of torsional damper, re‐
move corrosion and lubricate splines with only a very thin
coating of grease ⇒ Electronic Parts Catalog (ETKA) . Re‐
move excessive grease.
Golf 2013 ➤
7-speed dual clutch gearbox 0CW - Edition 10.2012
86 Rep. gr.34 - Controls, housing
