2 Selector mechanism
⇒ “2.1 Assembly overview - selector mechanism”, page 57
⇒ “2.2 Emergency release from position P”, page 58
⇒ “2.3 Removing and installing selector lever handle”,
page 59
⇒ “2.4 Moving push button to installation position in the handle”,
page 60
⇒ “2.5 Removing and installing selector mechanism”, page 62
⇒ “2.6 Removing and installing selector lever cable”, page 66
⇒ “2.7 Checking selector mechanism”, page 68
⇒ “2.8 Checking and adjusting selector lever cable”, page 69
⇒ “2.9 Renewing oil seal for selector shaft”, page 71

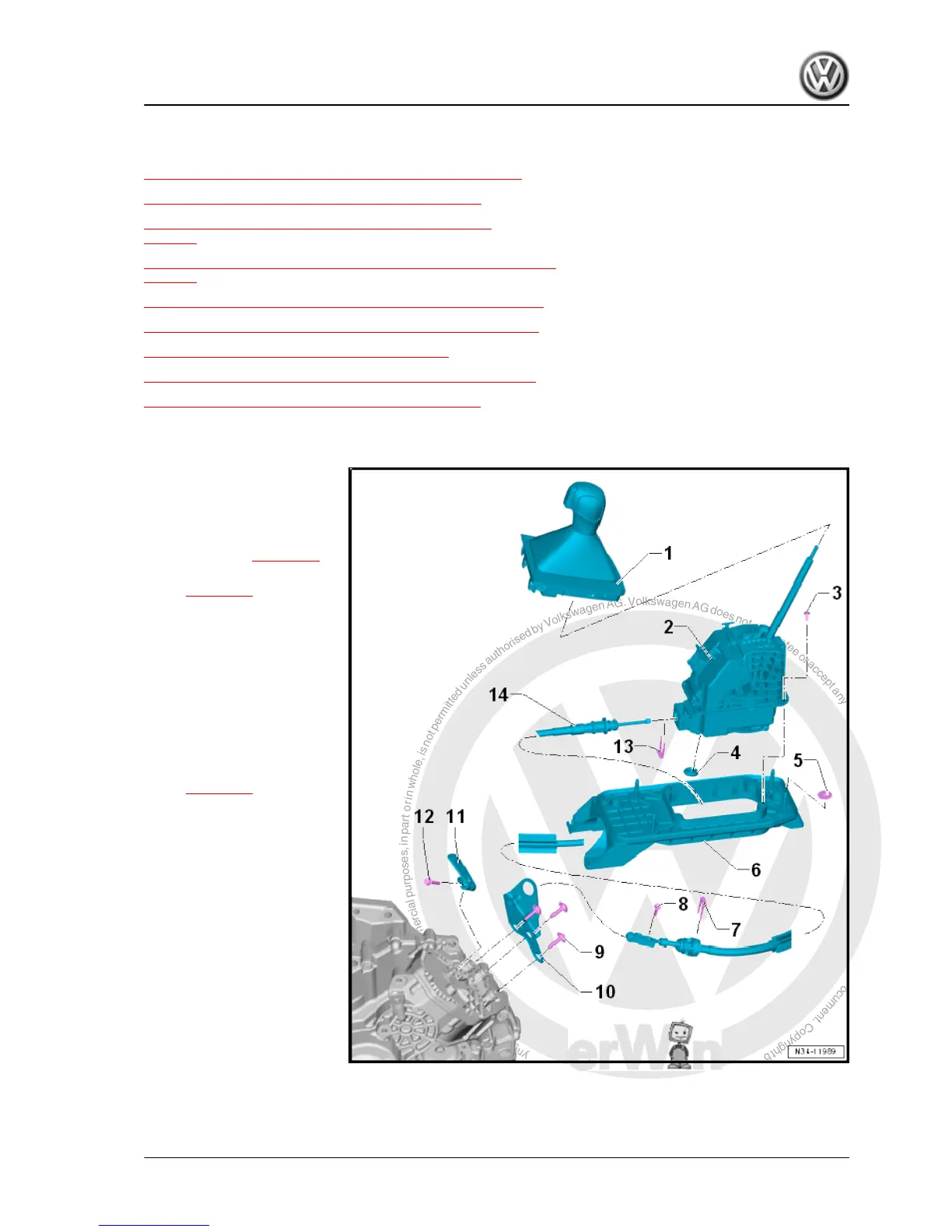

2.1 Assembly overview - selector mechanism
1 - Handle with selector cover
❑ Do not remove handle
without reason. For
emergency release, on‐
ly the cover needs to be
unclipped ⇒ page 58 .
❑ Removing and installing
⇒ page 59 .
2 - Selector mechanism
❑ With integrated selector
lever sensor control unit
-J587- with selector lev‐
er -E313- , Tiptronic
switch -F189- , switch
for selector lever locked
in P -F319- and selector
lever lock solenoid -
N110-
❑ Removing and installing
⇒ page 62 .
3 - Bolt
❑ Secures selector mech‐
anism to selector hous‐
ing
❑ Qty. 4
❑ 4 Nm
4 - Plug
5 - Hexagon flange nut
❑ Qty. 4
❑ M6 - 8 Nm
❑ M8 - 20 Nm
6 - Selector housing
7 - Securing clip
❑ Always renew.
8 - Bolt
❑ Adjustment screw for selector lever cable.
Golf 2013 ➤
7-speed dual clutch gearbox 0CW - Edition 10.2012
2. Selector mechanism 57
