Driving in differential bearing race
A second mechanic is required for driving in.
– Place thrust piece -T10380- on edge of workbench. Position
gearbox housing with area of bearing point on thrust piece,
and hold housing firmly like that.
– Second mechanic inserts oil ring and shim. 2nd mechanic
drives bearing in as far as stop.

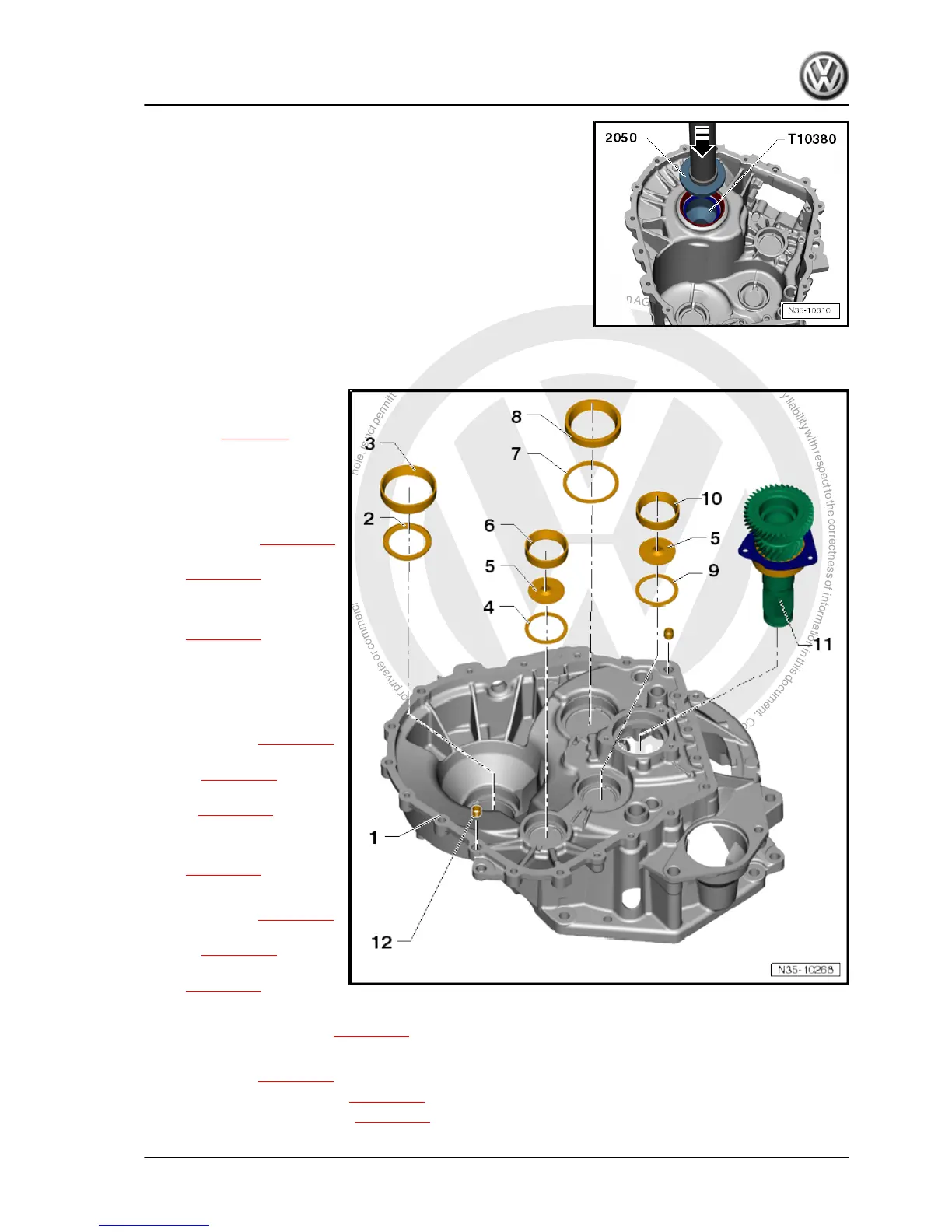

7.2 Repairing clutch housing
1 - Clutch housing
❑ Remove outer input
shaft ⇒ page 96
2 - Baffle plate
❑ Smooth side faces out‐
wards
3 - Differential bearing race
❑ Driving out ⇒ page 119
❑ Pressing in
⇒ page 119
4 - Output shaft shim 3
❑ Determining thickness
⇒ page 150 .
5 - Oil deflector
❑ Always renew a de‐
formed plate
6 - Output shaft bearing race 3
❑ Pulling out ⇒ page 120
❑ Preparing for pressing
in ⇒ page 118
❑ Pressing in output shaft
3 ⇒ page 118
7 - Output shaft shim 1
❑ Determining thickness
⇒ page 150 .
8 - Output shaft bearing race 1
❑ Pulling out ⇒ page 119
❑ Preparing for pressing
in ⇒ page 120
❑ Pressing in
⇒ page 120
9 - Output shaft shim 2
❑ Determining thickness ⇒ page 150 .
10 - Output shaft bearing race 2
❑ Pulling out ⇒ page 120
❑ Preparing for pressing in ⇒ page 118
❑ Pressing in output shaft 2 ⇒ page 118
Golf 2013 ➤
7-speed dual clutch gearbox 0CW - Edition 10.2012
7. Gearbox housing, clutch housing 117
