2.2 Dismantling and assembling output
shaft 1
⇒ “2.2.1 Dismantling output shaft 1 partially”, page 131
⇒ “2.2.2 Dismantling output shaft 1 completely”, page 132
⇒ “2.2.3 Assembling output shaft 1”, page 133
⇒ “2.2.4 Dismantling and assembling locking collars and synchro-
hubs of output shaft 1”, page 139

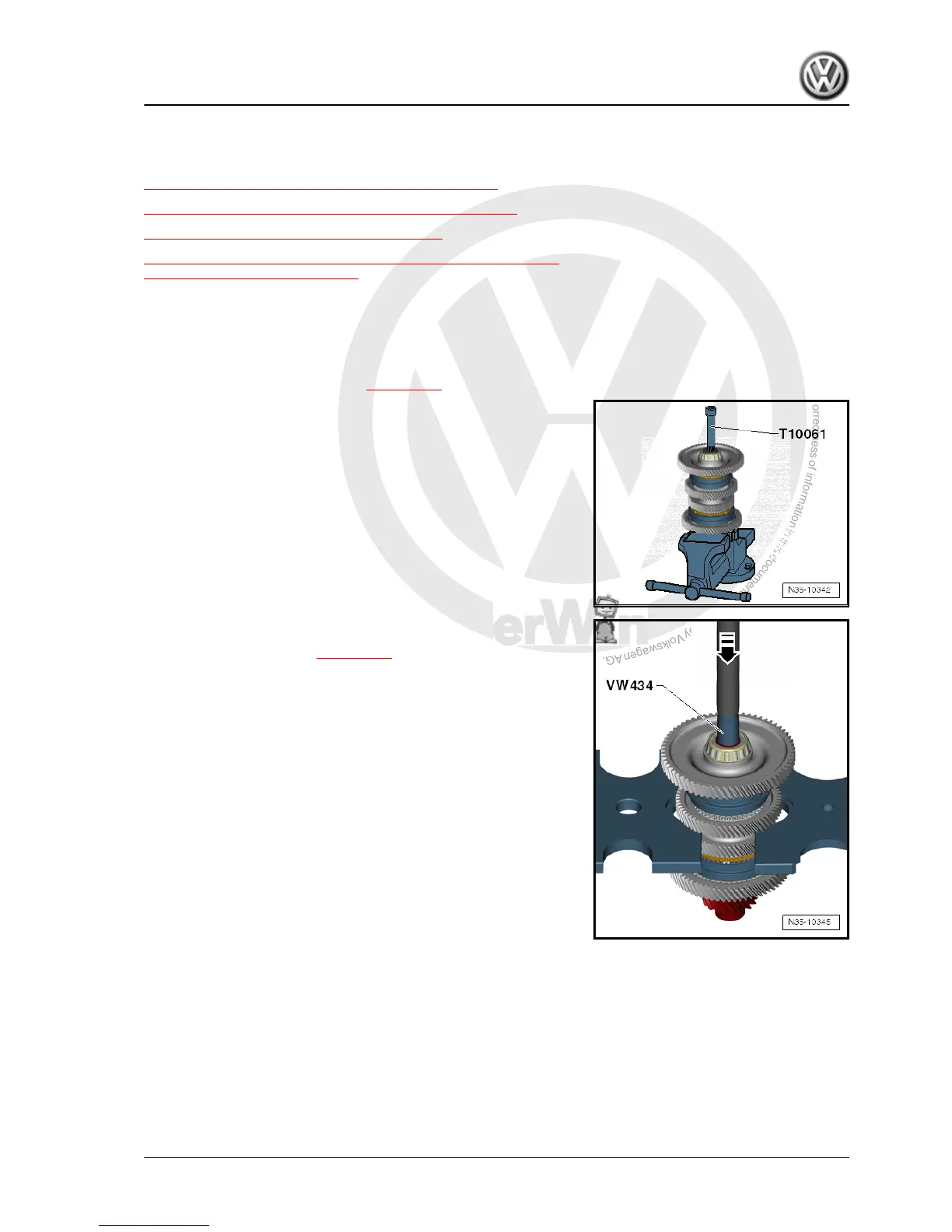

2.2.1 Dismantling output shaft 1 partially
Output shaft 1 only needs to be dismantled partially in order to
adjust gearbox.
Dismantle output shaft completely if gearbox is to be cleaned or
if parts of shaft are to be renewed ⇒ page 132 .
– Remove bolt.
Special wrench -T10035- can also be used.
– Press out output shaft.
Assembling output shaft 1 ⇒ page 133 .
Golf 2013 ➤
7-speed dual clutch gearbox 0CW - Edition 10.2012
2. Output shaft 131
