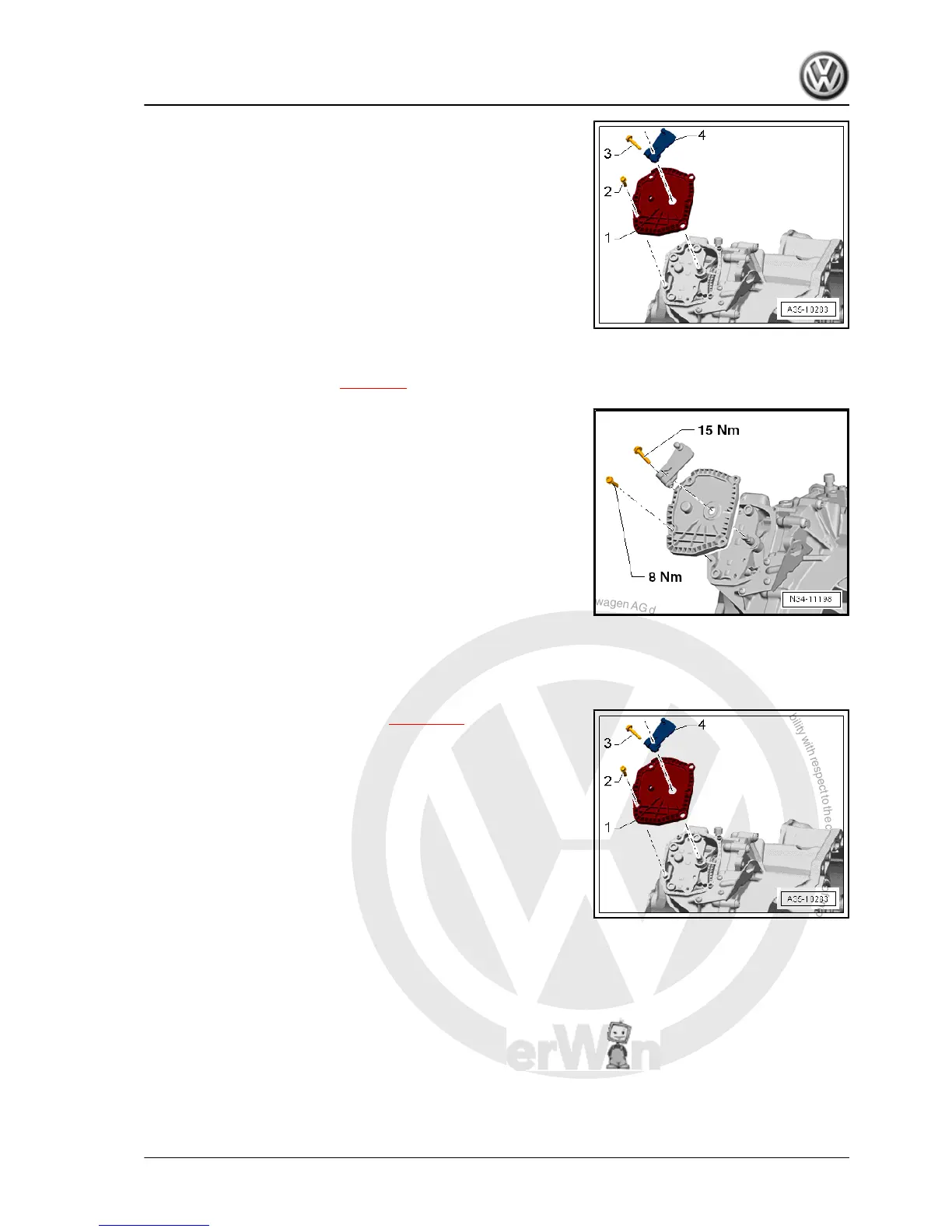

– Unscrew bolt -3- and detach gearbox selector lever -4-.
– Unscrew bolts -2- and remove parking lock cover -1-.
Installing
Cover for parking lock must be renewed if seal for selector shaft
or seal on cover for parking lock is leaking.
– Clean sealing surface and cover for parking lock -1-.
– Fit parking lock cover -1- and screw in bolts -2-.
– Fit gearbox selector lever -4- and screw in bolt -3-.
Continue installation in reverse order of removal.
– Install battery and battery tray ⇒ Electrical system; Rep. gr.
27 ; Battery; Removing and installing battery .
– Adjust selector lever cable ⇒ page 69 .
Specified torque settings:
3.2 Removing and installing parking lock
Removing
• Gearbox is installed.
– Remove cover for parking lock -1- ⇒ page 180 .
Golf 2013 ➤
7-speed dual clutch gearbox 0CW - Edition 10.2012
3. Parking lock 181
