1.3 Moving mechatronic unit for dual clutch gearbox -J743- into removal posi‐
tion by hand
Note
Only if you cannot set the mechatronic unit to removal position with the vehicle diagnostic tester , you must
move the unit by hand to this position.

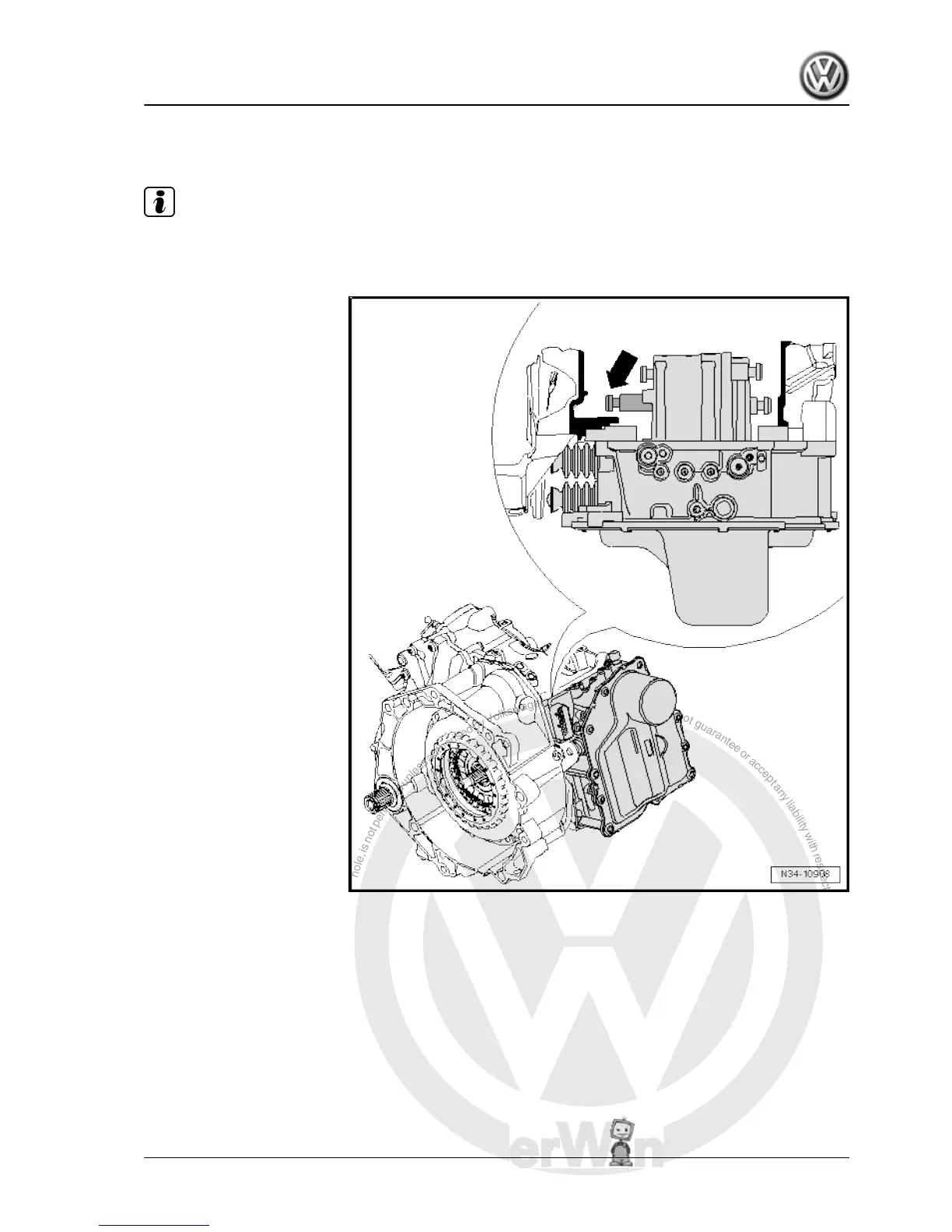

Sometimes, the mechatronic unit cannot be removed. In this
case, the gear actuator is »caught« at the »top left« of the gearbox
housing -arrow-.
The »sticking« gear actuator must now be pressed by hand into
a »removal position«. The cover on the selector shaft must be
removed for this.
– Reinsert mechatronic unit completely into gearbox and secure
it with a bolt.
– Move selector lever to “P” position.
Golf 2013 ➤
7-speed dual clutch gearbox 0CW - Edition 10.2012
1. Mechatronic unit 55
