7 Gearbox housing, clutch housing
⇒ “7.1 Repairing gearbox housing”, page 114
⇒ “7.2 Repairing clutch housing”, page 117
7.1 Repairing gearbox housing

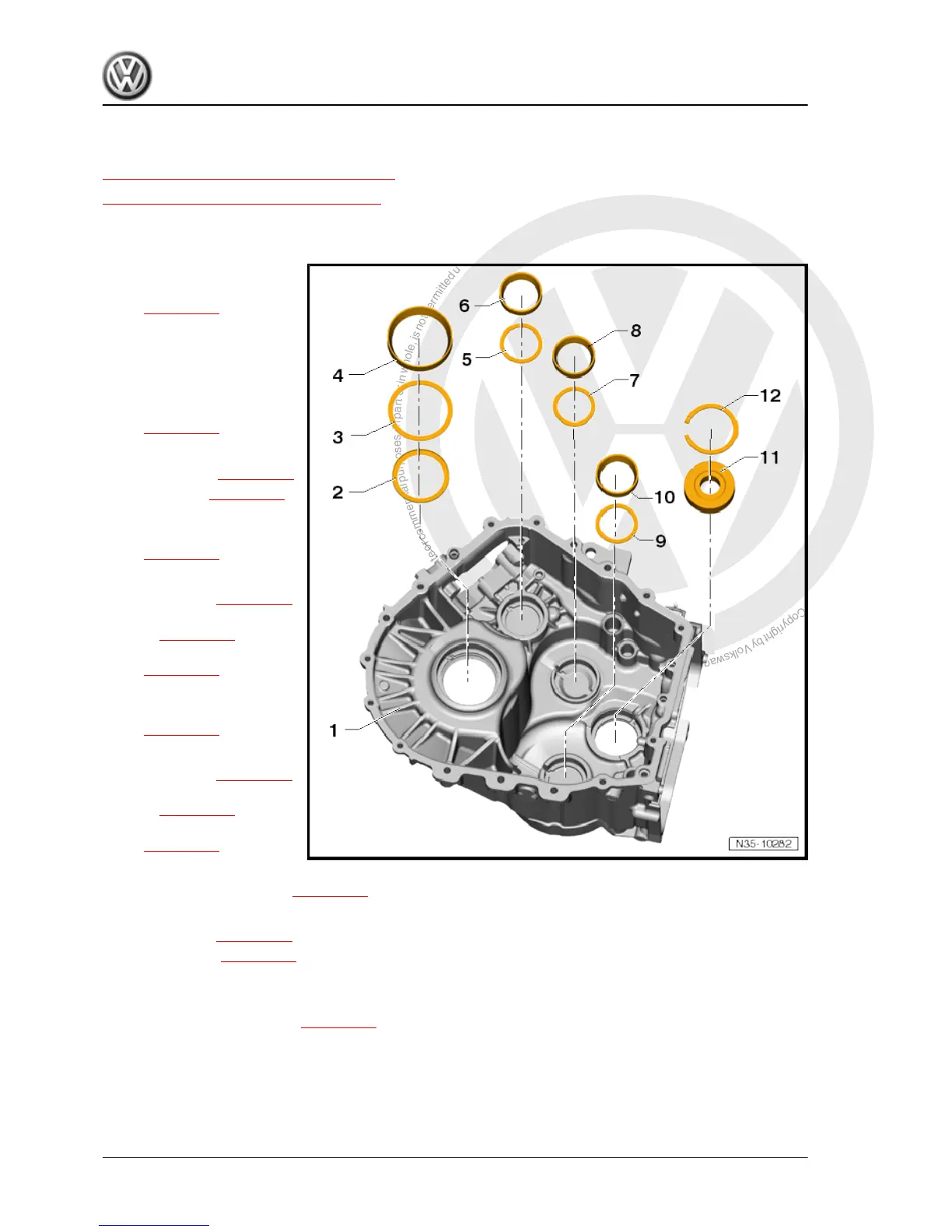

1 - Gearbox housing
❑ With oil guide
⇒ page 115
2 - Baffle plate
❑ Smooth side faces out‐
wards
3 - Differential shim
❑ Determining thickness
⇒ page 161 .
4 - Differential bearing race
❑ Driving out ⇒ page 116
❑ Driving in ⇒ page 117
5 - Output shaft shim 3
❑ Determining thickness
⇒ page 161 .
6 - Output shaft bearing race 3
❑ Pulling out ⇒ page 115
❑ Preparing for pressing
in ⇒ page 116
❑ Pressing in
⇒ page 116
7 - Output shaft shim 2
❑ Determining thickness
⇒ page 161 .
8 - Output shaft bearing race 2
❑ Pulling out ⇒ page 115
❑ Preparing for pressing
in ⇒ page 116
❑ Pressing in
⇒ page 116
9 - Output shaft shim 1
❑ Determining thickness ⇒ page 161 .
10 - Output shaft bearing race 1
❑ Pulling out ⇒ page 115
❑ Pressing in ⇒ page 115
11 - Bearing for the inner input shaft
❑ Remove to press out retaining ring
❑ Press in »new« bearing ⇒ page 115
12 - Retaining ring
❑ Always renew.
Golf 2013 ➤
7-speed dual clutch gearbox 0CW - Edition 10.2012
114 Rep. gr.34 - Controls, housing
