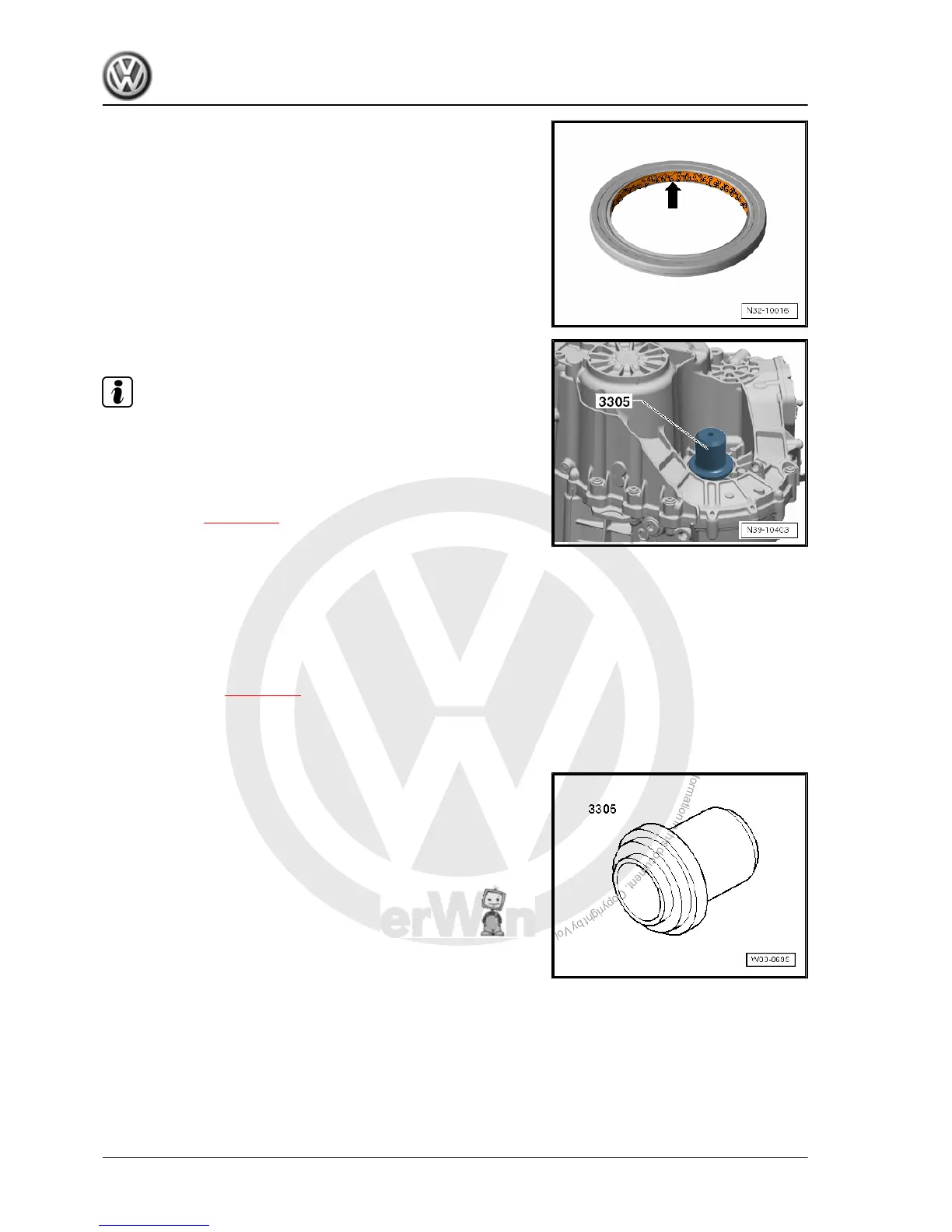

– Fill space between sealing lip and dust lip -arrow- with sealing
grease ⇒ Electronic Parts Catalog (ETKA) .
– Drive in new oil seal to stop, being careful not to cant oil seal.
Note
♦ Renew flange shaft countersunk bolt.
♦ Press flange shaft against spring force into gearbox so that
bolt engages in threaded piece of differential.
– Fit flange shaft and secure with new countersunk bolt. Speci‐
fied torques ⇒ page 183
– Install drive shaft ⇒ Running gear, axles, steering; Rep. gr.
40 ; Drive shaft; Removing and installing drive shaft .
– Install front left wheel housing liner ⇒ General body repairs,
exterior; Rep. gr. 66 ; Wheel housing liner; Removing and
installing front wheel housing liner .
– Install noise insulation ⇒ General body repairs, exterior; Rep.
gr. 66 ; Noise insulation; Assembly overview - noise insula‐
tion .
– Top up gear oil ⇒ page 121 .
1.3 Renewing right oil seal
Special tools and workshop equipment required
♦ Thrust piece -3305-
Golf 2013 ➤
7-speed dual clutch gearbox 0CW - Edition 10.2012
186 Rep. gr.39 - Final drive - differential
