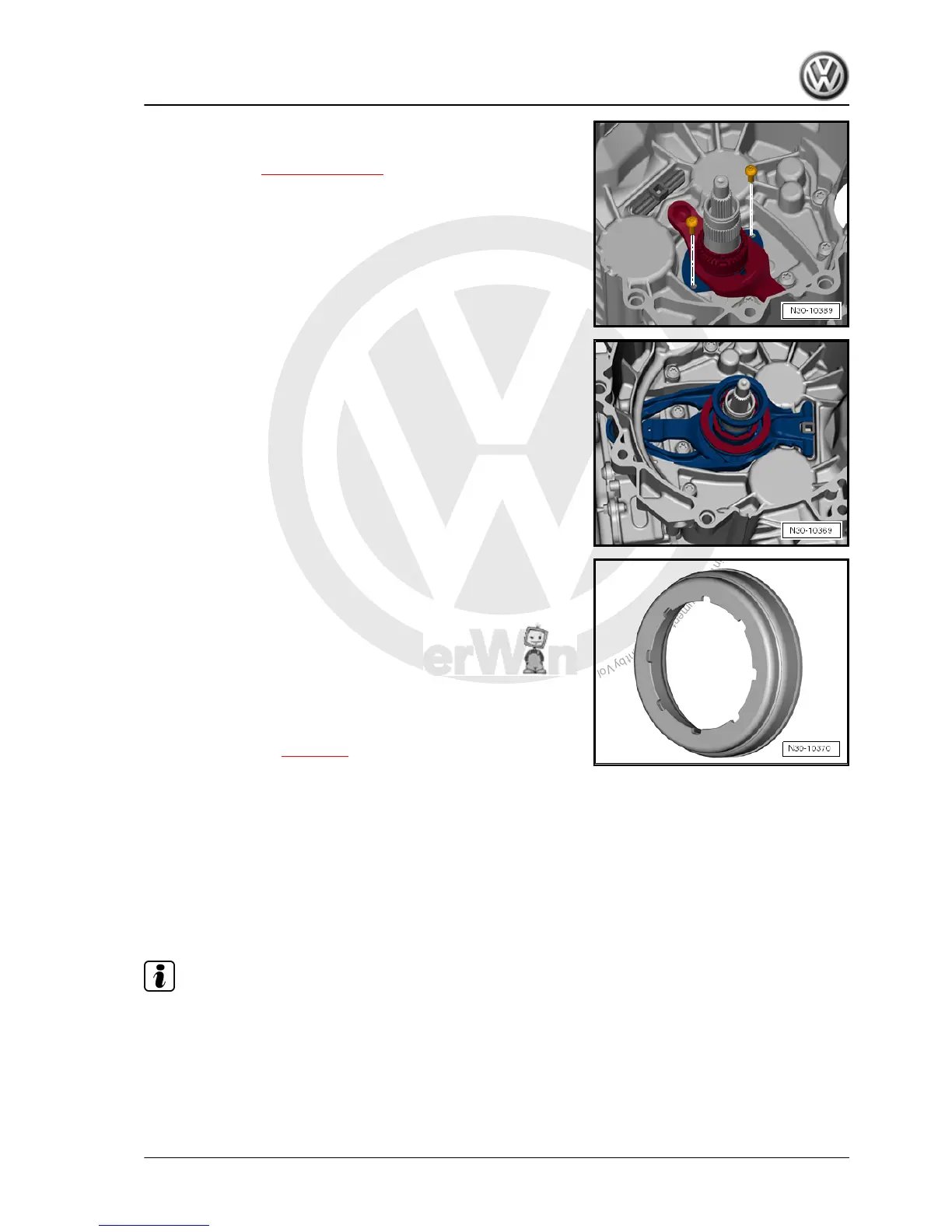

– Install »small« engagement lever together with upper and low‐
er section of bushing. Insert and tighten new bolts.
Specified torques ⇒ Item 9 (page 25)
– Insert »large« engaging lever with measured shims for “K 1”
and “K 2” and with small engagement bearing.
• The large shim is inserted into the large engagement bearing,
with the hemispherical side of the shim facing downwards.
• The small shim goes under the small engagement bearing.
Therefore, insert shim first.
• The shim and the small engagement bearing only fit in one
position due to the 8 grooves.
– By turning, check that parts have been installed correctly and
that grooves are seated correctly.
– Check both engaging levers are seated correctly.
– Install dual clutch ⇒ page 16 .
2.3 Adjusting clutch engagement
The position of the engagement bearings “K 1” and “K 2” must
only be adjusted after the following work:
♦ Clutch has been renewed.
♦ Engaging levers were renewed.
♦ Small ball pin for engaging lever “K 2” has been renewed.
♦ Engagement bearings were renewed.
Note
♦ There is no need to adjust anything if all the named parts have
only been removed and reinstalled.
♦ The retaining ring must be renewed in each case.
Special tools and workshop equipment required
♦ Depth gauge, digital 300 mm -VAS 6594-
Golf 2013 ➤
7-speed dual clutch gearbox 0CW - Edition 10.2012
2. Clutch operation 29
