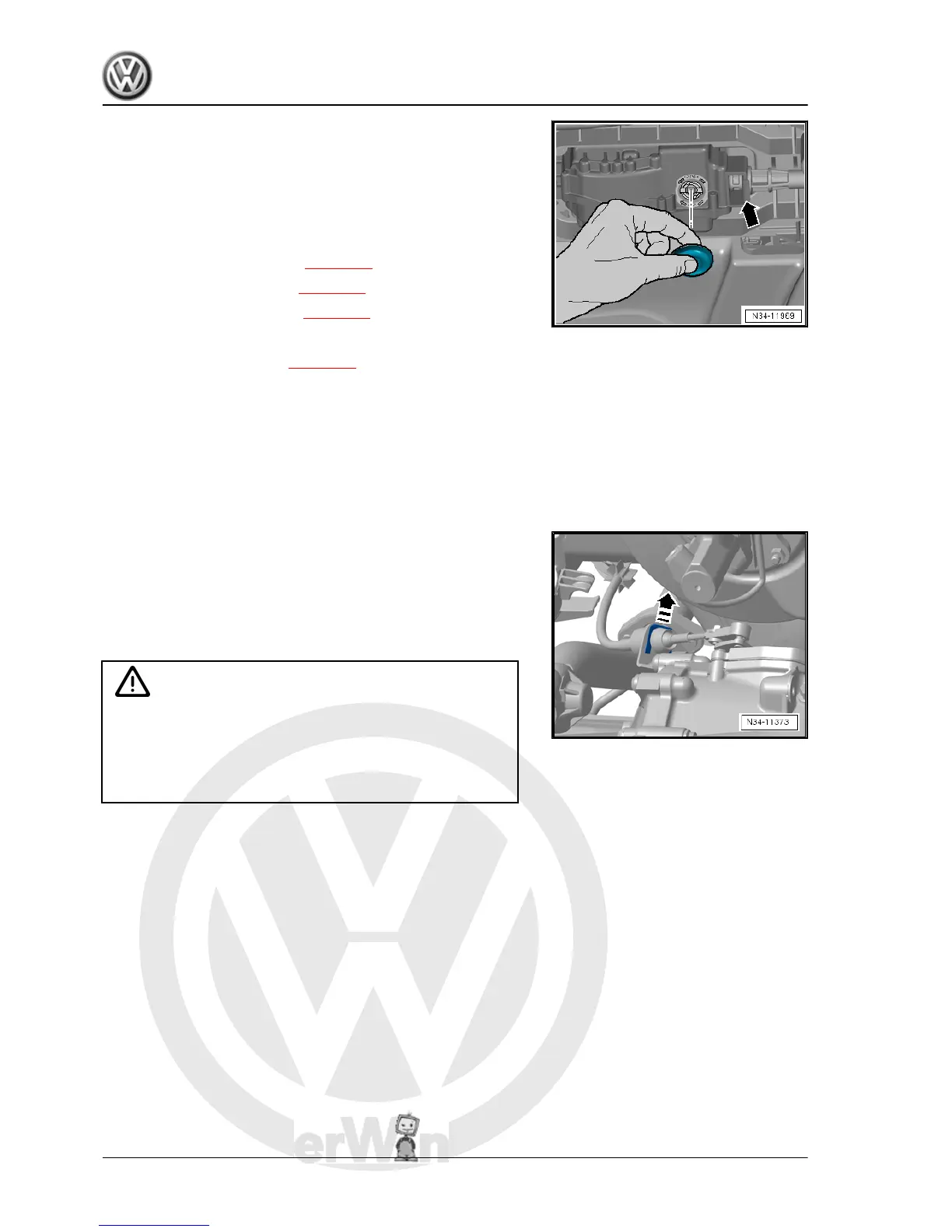

– Install new securing clip -arrow- and insert plug.
– Install heat shield below selector mechanism ⇒ General body
repairs, exterior; Rep. gr. 66 ; Mouldings/trims/extensions;
Assembly overview - heat shield .
– Install centre console ⇒ General body repairs, interior; Rep.
gr. 68 ; Centre console; Removing and installing centre con‐
sole .
– Install selector lever handle ⇒ page 59 .
– Adjust selector lever cable ⇒ page 69 .
– Check selector mechanism ⇒ page 68 .
Specified torques
♦ Selector housing to body ⇒ page 57
2.6 Removing and installing selector lever
cable
Vehicles with diesel engine:
– Remove air filter housing ⇒ Rep. gr. 23 ; Air filter; Removing
and installing air filter housing .
Continued for all vehicles:
– Remove securing clip.
Use pliers to remove the securing clip on the cable support brack‐
et. Do not use a sharp-edged lever. The selector lever cable could
otherwise be damaged.
Securing clips for selector lever cable must always be renewed.
– Remove cable from ball head.
Caution
Risk of damage to selector lever cable.
♦ Do not push selector lever cable backwards out of cable
support bracket. The selector lever cable is not detached
from the cable support bracket until the selector mecha‐
nism is removed.
Securing clips for selector lever cable must always be renewed.
– Shift selector lever on selector mechanism to position “N”. On‐
ly in this position the selector lever cable can be released from
selector mechanism.
– Remove heat shield for centre tunnel below selector mecha‐
nism ⇒ General body repairs, exterior; Rep. gr. 66 ; Mould‐
ings/trims/extensions; Assembly overview - heat shield .
Golf 2013 ➤
7-speed dual clutch gearbox 0CW - Edition 10.2012
66 Rep. gr.34 - Controls, housing
