4 Disconnecting and connecting bat‐
tery -A-
4.1 Disconnecting and connecting battery -
A- ( battery -A- in engine compartment)
WARNING
Danger of injury! Observe warning notices and safety regula‐
tions ⇒ page 1 !
Disconnect battery -A- ⇒ page 5
Reconnecting battery -A- ⇒ page 5 .

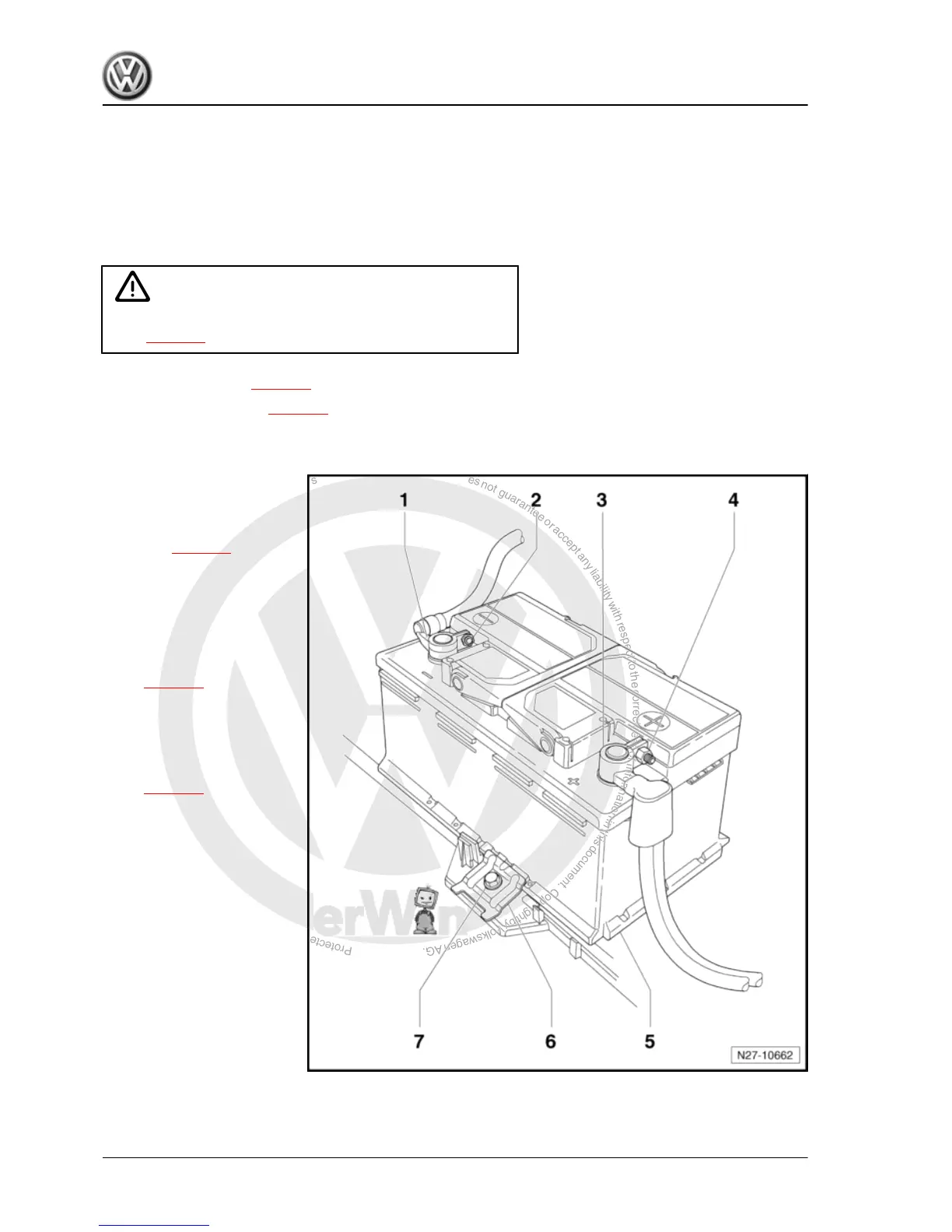

4.1.1 Assembly overview - battery -A-
1 - Earth wire battery terminal
clamp
❑ Observe notes for bat‐
tery pole terminal clamp
bolt ⇒ page 1 .
2 - Nut
❑ 6 Nm
3 - Positive wire battery termi‐
nal clamp
❑ Observe notes for bat‐
tery terminal clamp bolt
⇒ page 1 .
4 - Nut
❑ 6 Nm
5 - Battery -A-
❑ Removing and installing
⇒ page 7
6 - Clamping plate
7 - Bolt
❑ 35 Nm
Golf Variant 2007 ➤ , Golf Variant 2010 ➤ , Jetta 2005 ➤
Electrical system - Edition 07.2010
4 Rep. gr.27 - Starter, current supply, CCS
