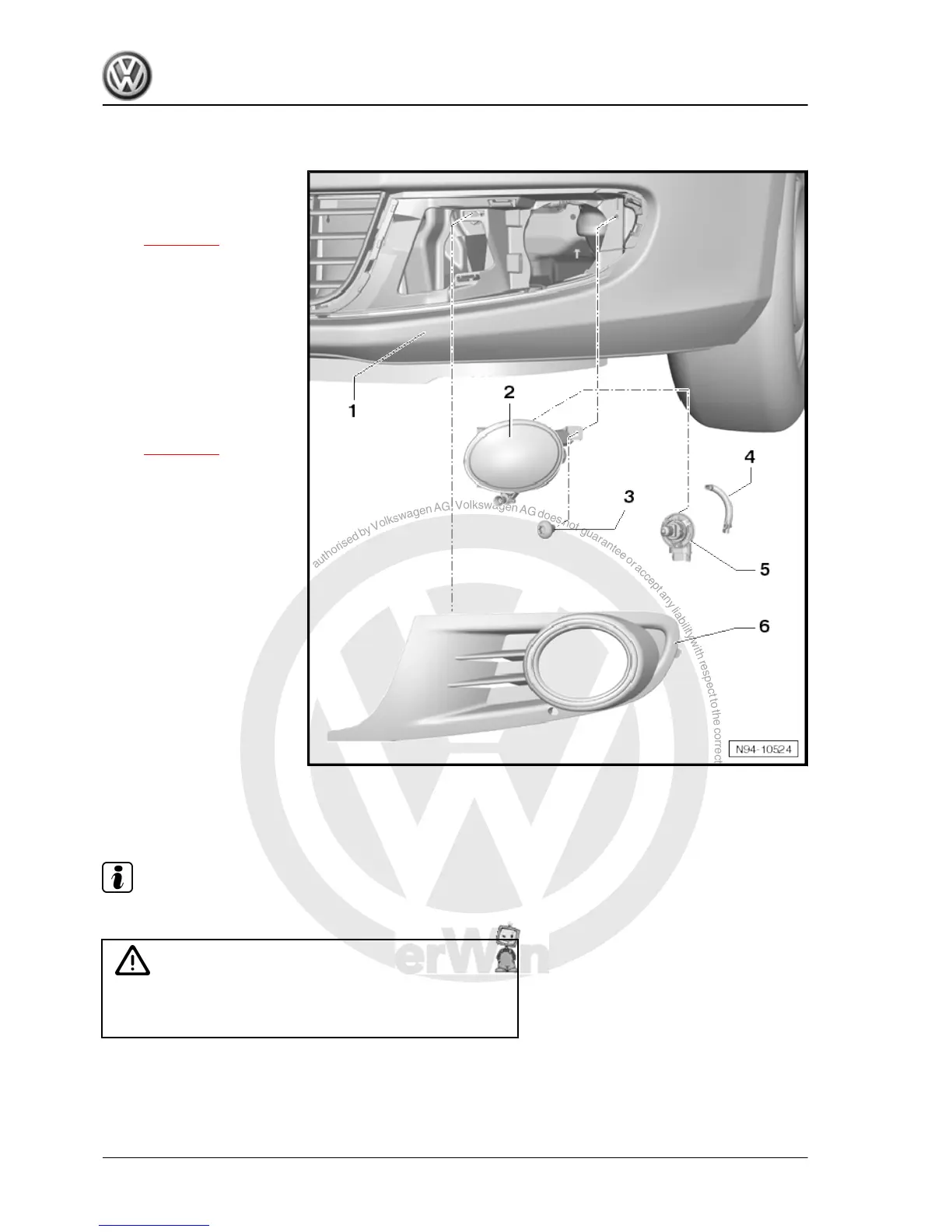

5.2 Assembly overview - fog lights (from MY2010)
1 - Front bumper cover
2 - Fog light housing
❑ Removing and installing
⇒ page 299
3 - Bolt
❑ 2 Nm
4 - Vent hose
5 - Left fog light bulb -L22- /
right fog light bulb -L23- / left
cornering light bulb -L148- /
right cornering light bulb -
L149-
❑ Bulb: HB4 12 V/51 W
❑ Removing and installing
⇒ page 300
6 - Cover cap
5.3 Removing and installing fog lights (up to
MY2009)
Note
The illustrations show removal and installation for the left fog light.
Caution
♦ Switch off ignition and all electrical consumers
♦ Remove the ignition key.
Removing
– Remove bolt -2-.
Golf Variant 2007 ➤ , Golf Variant 2010 ➤ , Jetta 2005 ➤
Electrical system - Edition 07.2010
298 Rep. gr.94 - Lights, bulbs, switches - exterior
