7.10 Alternator -C- 2.0l TFSI engine

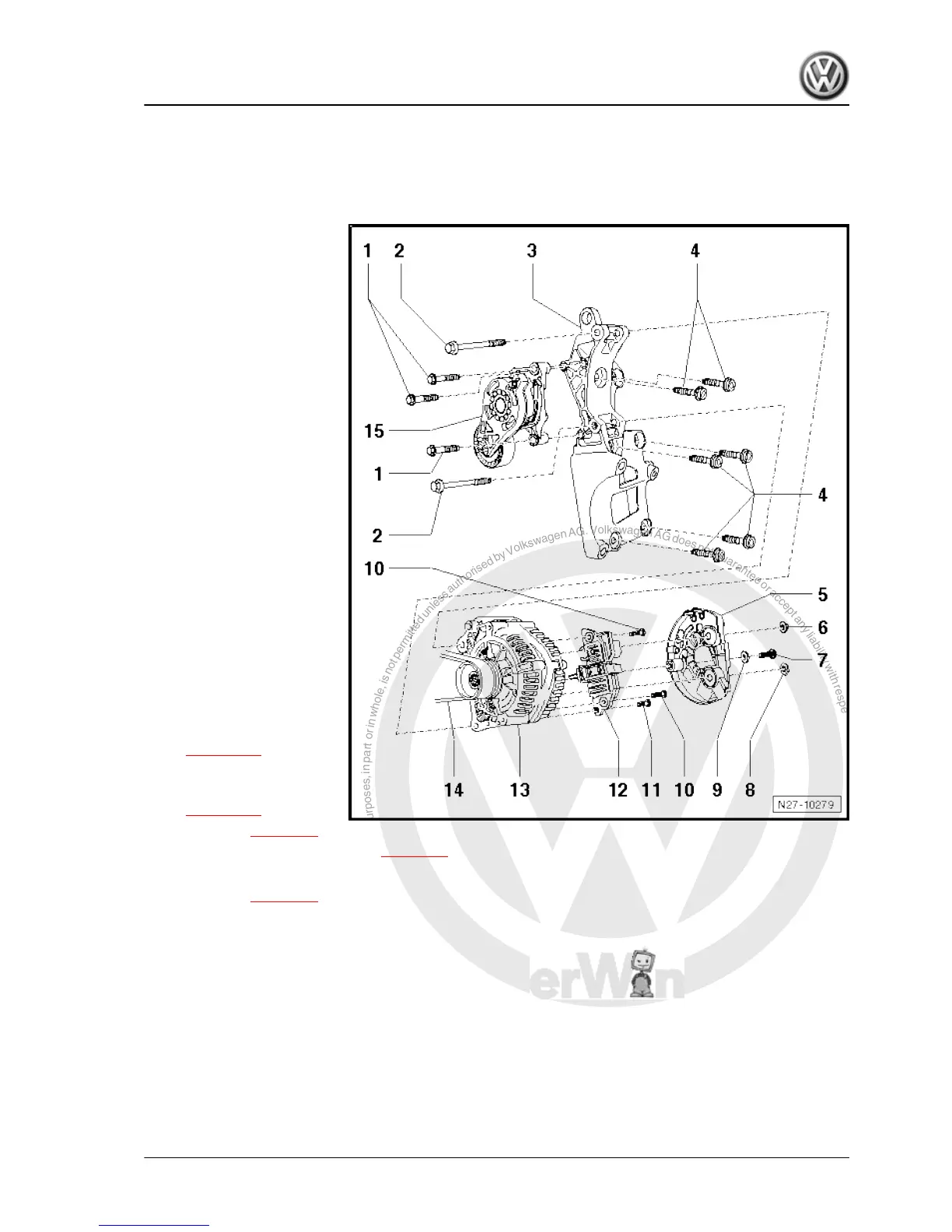

7.10.1 Assembly overview
1 - Hexagon head flange bolts
❑ 23 Nm
2 - Hexagon head flange bolts
❑ 23 Nm
3 - Ancillary bracket
❑ For alternator -C- and
air conditioner compres‐
sor
❑ Tightening sequence ⇒
Engine; Rep. gr. 13
4 - Hexagon head flange bolts
❑ 45 Nm
5 - Protective cap
6 - Hexagon flange nut
7 - Cross-head screw
❑ 4.5 Nm
8 - Hexagon nut
9 - Washer
10 - Cross-head screws
❑ 2 Nm
11 - Cross-head screw
❑ 2 Nm
12 - Voltage regulator -C1-
❑ Removing and installing
⇒ page 168
13 - Alternator -C-
❑ Removing and installing
⇒ page 122
❑ Checking ⇒ page 89
❑ Securing battery positive wire ⇒ page 88
14 - Poly V-belt
❑ Checking ⇒ page 88
❑ Removing and installing ⇒ Engine; Rep. gr. 13
❑ Poly V-belt routing ⇒ Engine; Rep. gr. 13
15 - Poly V-belt tensioning element
Not illustrated
♦ Nut of B+ wire on rear of alternator: 15 Nm
♦ Nut of wire holder on back of alternator : 3.2 Nm
♦ Poly V-belt pulley without freewheel: 65 Nm
♦ Poly V-belt pulley with freewheel: 80 Nm
Golf Variant 2007 ➤ , Golf Variant 2010 ➤ , Jetta 2005 ➤
Electrical system - Edition 07.2010
7. Alternator C 121
