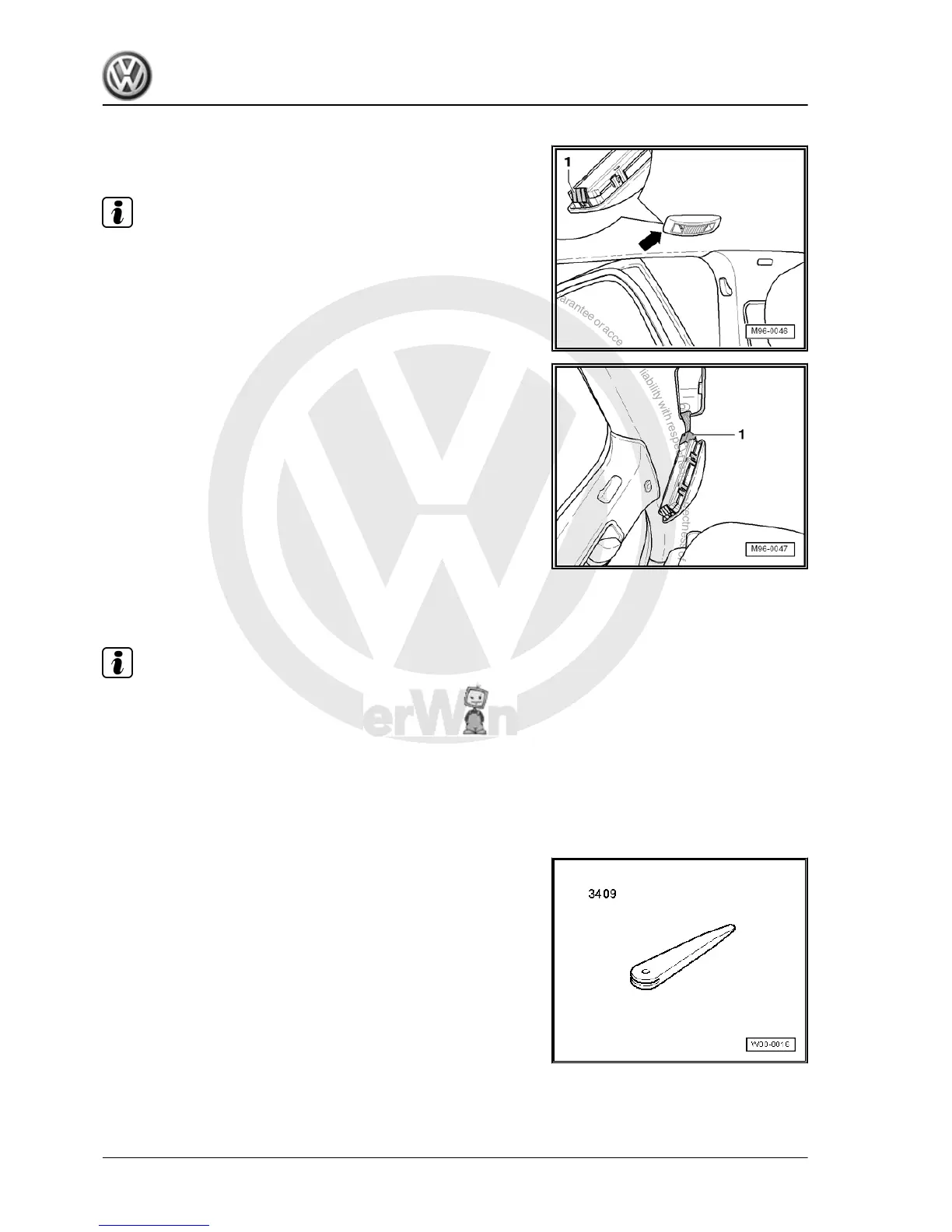

Removing
– Use removal wedge -VAS 3409- to unclip anti-theft alarm ul‐
trasonic sensor -G209- -arrow-.
Note
Clip -1- which holds anti-theft alarm ultrasonic sensor -G209- in
place has three legs. Press three legs of clip to release anti-theft
alarm ultrasonic sensor -G209- , otherwise anti-theft alarm ultra‐
sonic sensor -G209- will not come out.
– Pull off anti-theft alarm ultrasonic sensor -G209- .
– Detach connector -1- from anti-theft alarm ultrasonic sensor -
G209- .
Installing
Installation is carried out in reverse order of removal.
9.5 Anti-theft alarm sensor -G578- (from
MY2010)
Note
♦ The anti-theft alarm sensor -G578- includes the vehicle incli‐
nation sender -G384- and the interior monitoring sensor -
G273- (two sensors).
♦ The anti-theft alarm sensor -G578- cannot be dismantled.
9.5.1 Removing and installing anti-theft alarm
sensor -G578-
Special tools and workshop equipment required
♦ Removal wedge -3409-
Golf Variant 2007 ➤ , Golf Variant 2010 ➤ , Jetta 2005 ➤
Electrical system - Edition 07.2010
432 Rep. gr.96 - Lights, bulbs, switches - interior
