2.5 Removing and installing warning lamp
for airbag deactivated on front passen‐
ger side -K145-
WARNING
Comply with the safety precautions when working on the airbag
⇒ General body repairs, interior; Rep. gr. 69 .
Caution
♦ Switch off ignition and all electrical consumers.
♦ Remove the ignition key.
♦ When removing and installing components that are in view
(switches, covers, trim), mask off areas where tools ( re‐
moval wedge -VAS 3409- , screwdriver) are used to lever
out those components using commercially available
masking tape.

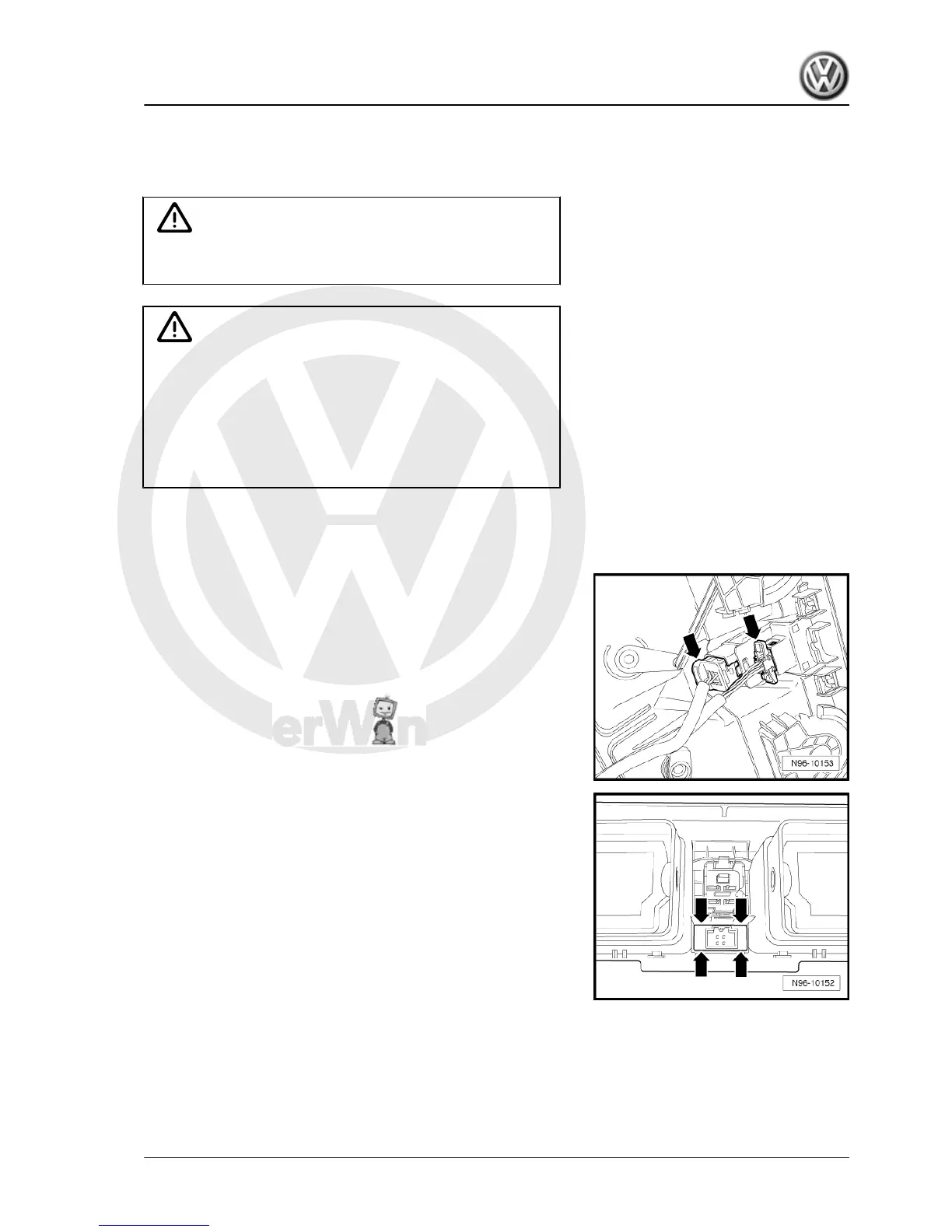

Removing
– Remove centre vents ⇒ Heating, air conditioning system;
Rep. gr. 80 .
– Disconnect connectors -arrows-.
– Release locking lugs -arrows- and remove airbag warning
lamp from passenger side -K145- .
Installing
Installation is carried out in reverse order of removal.
Golf Variant 2007 ➤ , Golf Variant 2010 ➤ , Jetta 2005 ➤
Electrical system - Edition 07.2010
2. Lights and switches in dash panel 387
