5 Removing and installing battery -A-
5.1 Removing and installing battery -A-
( battery -A- in engine compartment)
WARNING
Danger of injury! Observe warning notices and safety regula‐
tions ⇒ page 1 !
Vehicles with a petrol engine ⇒ page 7
Vehicles with a diesel engine ⇒ page 9

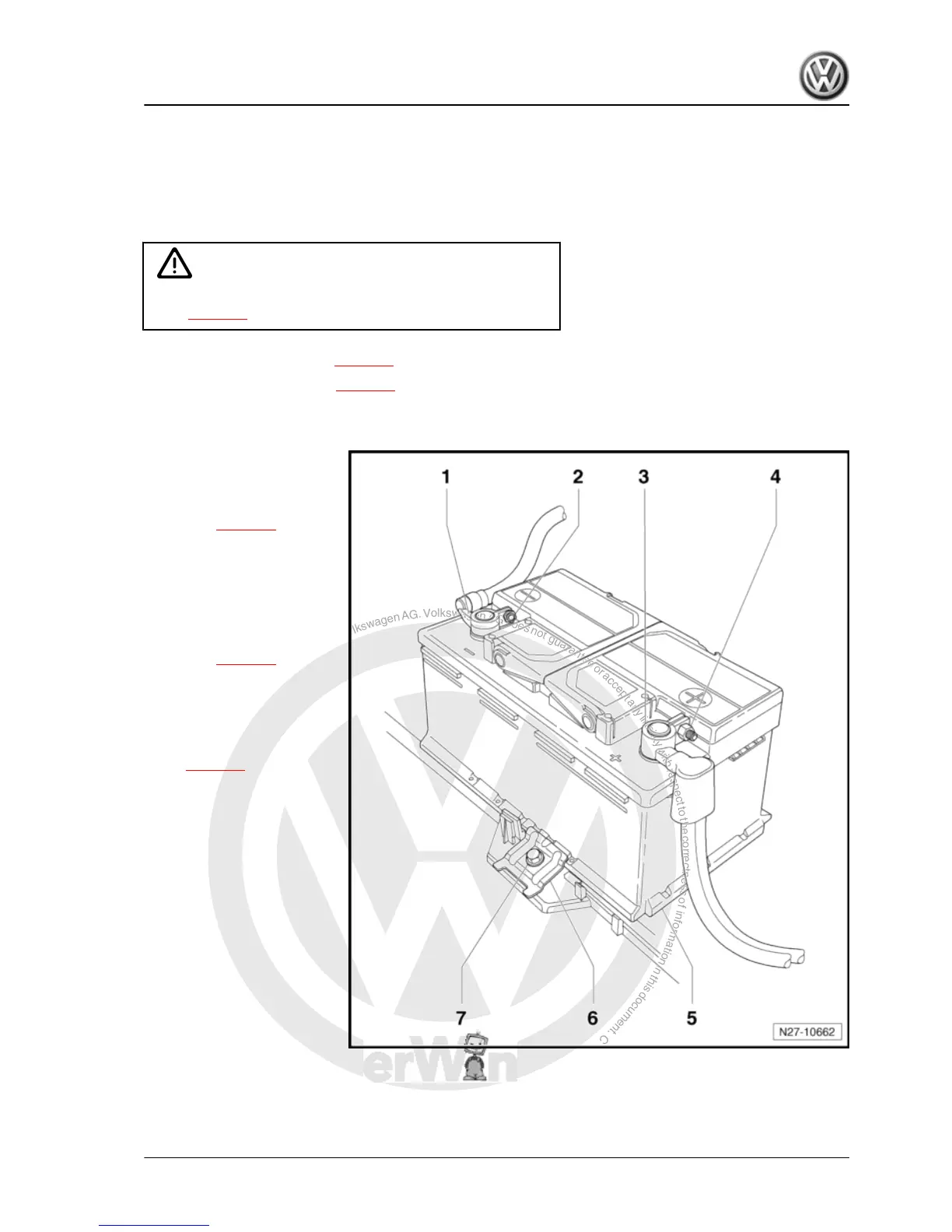

5.1.1 Assembly overview - battery -A-
1 - Earth wire battery terminal
clamp
Notes on bolted connec‐
tion of the battery termi‐
nals ⇒ page 1
2 - Nut
6 Nm
3 - Positive wire battery termi‐
nal clamp
Notes on bolted connec‐
tion of the battery termi‐
nals ⇒ page 1
4 - Nut
6 Nm
5 - Battery -A-
Removing and installing
⇒ page 7
6 - Clamping plate
7 - Bolt
35 Nm
5.1.2 Vehicles with a petrol engine
Special tools and workshop equipment required
Golf Variant 2007 ➤ , Golf Variant 2010 ➤ , Jetta 2005 ➤
Electrical system - Edition 07.2010
5. Removing and installing battery A 7
