6 Bulb for turn signal repeater light and
entry light in exterior mirror
General description
The driver side turn signal repeater bulb in exterior mirror -L131- /
passenger side turn signal repeater bulb in exterior mirror -L132-
(side-mounted turn signals) are integrated in the exterior mirror
housings.
In addition, there is one driver side entry light in exterior mirror -
W52- / front passenger side entry light in exterior mirror -W53- in
each of the exterior mirror housings, which illuminate the entry
area around the open driver and front passenger door in the dark.

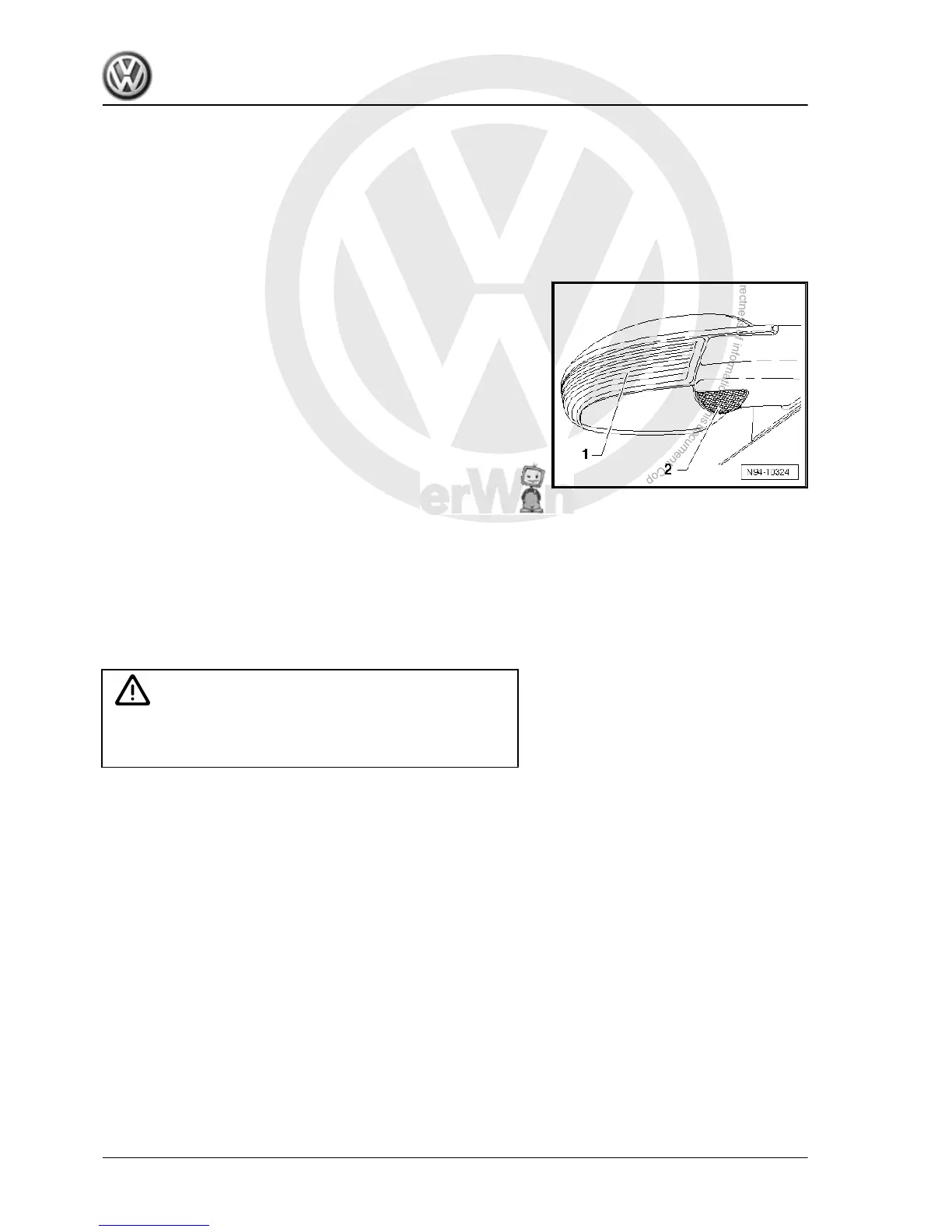

1 - Driver side turn signal repeater bulb in exterior mirror -L131- /
passenger side turn signal repeater bulb in exterior mirror -L132-
2 - Driver side entry light in exterior mirror -W52- / front passenger
side entry light in exterior mirror -W53-
Fault detection and fault display
The onboard supply control unit is equipped with self-diagnosis.
For fault finding, use vehicle diagnosis, testing and information
system -VAS 5051B- in „Guided fault finding“ mode.
6.1 Removing and installing turn signal bulb
The driver side turn signal repeater bulb in exterior mirror -L131- /
passenger side turn signal repeater bulb -L132- are installed in
the left/right exterior mirror housing respectively.
In the event of damage, the complete driver side turn signal lamp
in exterior mirror -L131- / passenger side turn signal lamp in ex‐
terior mirror -L132- must be renewed.
Caution
♦ Switch off ignition and all electrical consumers.
♦ Remove the ignition key.
Removing
– Remove driver side turn signal repeater bulb in exterior mirror
-L131- / passenger side turn signal repeater bulb in exterior
mirror -L132- ⇒ General body repairs, exterior; Rep. gr. 66
Installing
– Install driver side turn signal repeater bulb in exterior mirror -
L131- / passenger side turn signal repeater bulb in exterior
mirror -L132- ⇒ General body repairs, exterior; Rep. gr. 66
6.2 Removing and installing entry light in ex‐
terior mirror
The driver side entry light in exterior mirror -W52- / front passen‐
ger side entry light in exterior mirror -W53- are installed in the left
and right exterior mirror housing respectively.
There is no need to remove exterior mirror to remove and install
driver side entry light in exterior mirror -W52- / front passenger
side entry light in exterior mirror -W53- .
The procedure for removal and installation of the driver side entry
light in exterior mirror -W52- and front passenger side entry light
Golf Variant 2007 ➤ , Golf Variant 2010 ➤ , Jetta 2005 ➤
Electrical system - Edition 07.2010
302 Rep. gr.94 - Lights, bulbs, switches - exterior
