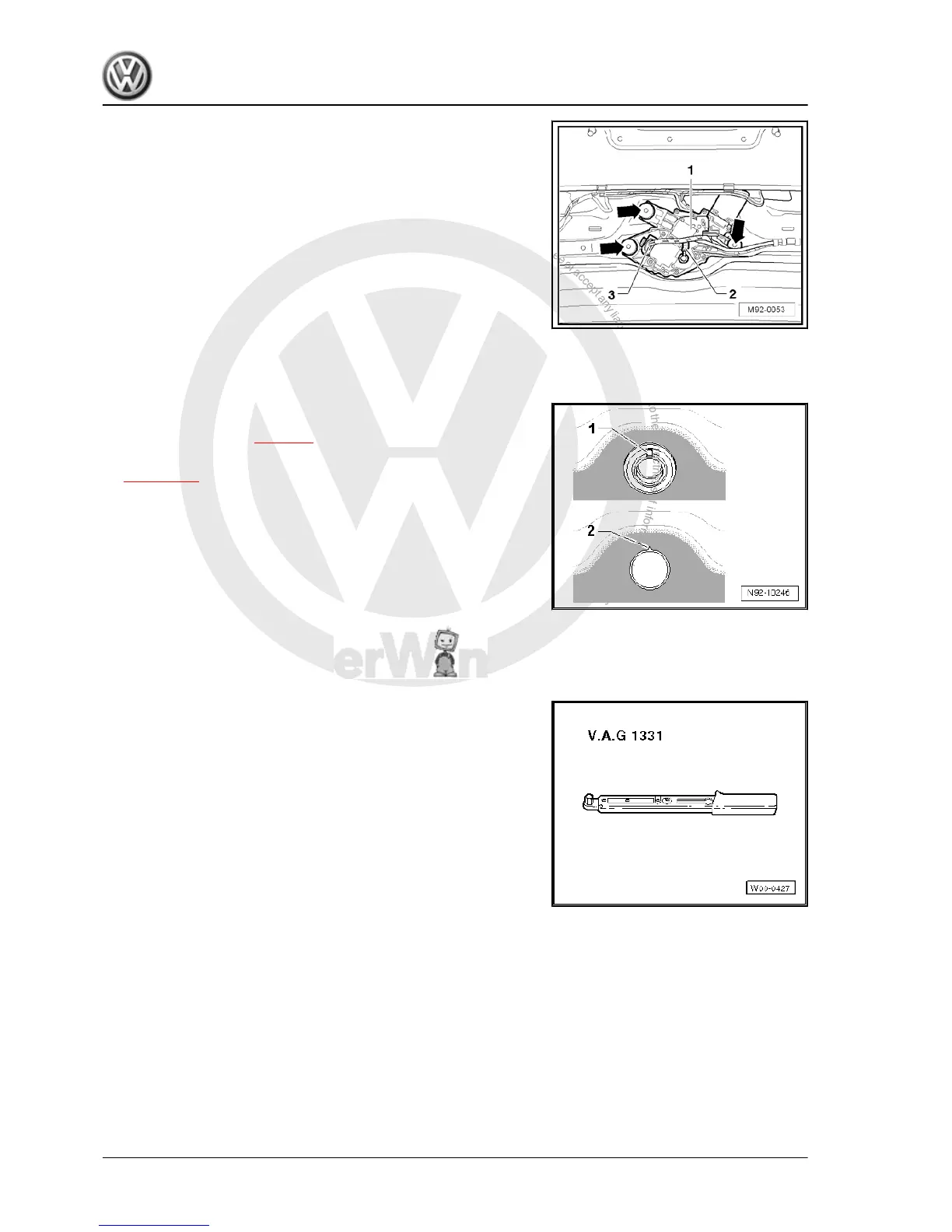

– Release and disconnect connector -3-.
– Release hose connection -2- by pulling securing ring upwards
and pull hose off connection on rear window wiper motor -V12-
-1-.
– Unscrew hexagon nuts -arrows-.
– Carefully pull rear window wiper motor -V12- off rear lid.
Installing
Install in the reverse order of removal. When doing this, note the
following:
– Before installing rear window wiper motor -V12- , moisten in‐
ner side of seal in rear window with a rubber and plastic
compatible lubricant (polyethylene glycol).
– Check seal is seated correctly in opening of rear window.
Mark -1- on seal must align with mark -2- on rear window.
– Connect battery -A- ⇒ page 4 .
– Tighten threaded connections to specified torques
⇒ page 200 .
3.3 Adjusting rear window wiper park posi‐
tion
Special tools and workshop equipment required
♦ Torque wrench -V.A.G 1331-
Golf Variant 2007 ➤ , Golf Variant 2010 ➤ , Jetta 2005 ➤
Electrical system - Edition 07.2010
202 Rep. gr.92 - Windscreen wash/wipe system
