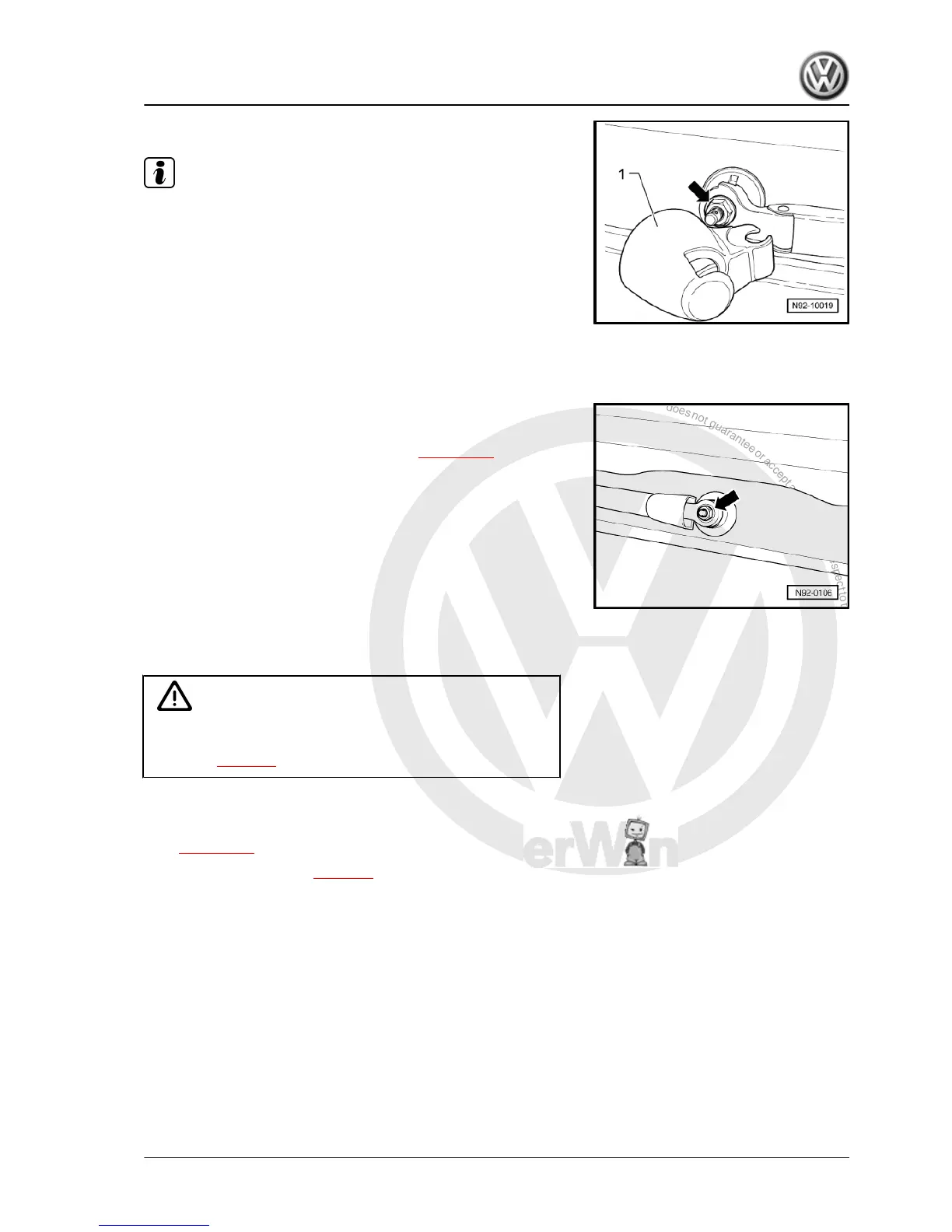

– Loosen hexagon nut -arrow- without removing it completely.
Note
Aerodynamic wipers are very flexible. To lift the wiper blade off
the rear window, grasp it only in the area in which the wiper blade
is attached to the wiper.
– Lift up wiper arm and free off from taper by rocking from side
to side.
– Unscrew nut -arrow- and remove from wiper arm.
Installing
– With ignition switched on, switch rear window wiper on and off
to run rear window wiper motor -V12- to its rest position.
– Fit wiper arm in approximate park position on wiper arm shaft
and tighten nut -arrow- by hand.
– Adjust rear window wiper park position ⇒ page 202 .
3.2.2 Removing and installing rear window
wiper motor -V12-
Caution
When battery -A- is disconnected and reconnected, the pro‐
cedure described in the workshop manual must be strictly
observed ⇒ page 4 .
Removing
Remove wiper arm before removing rear window wiper motor -
V12- ⇒ page 200 .
– Disconnect battery -A- ⇒ page 4 .
– Removing lower trim of rear lid ⇒ General body repairs, inte‐
rior; Rep. gr. 70 .
Golf Variant 2007 ➤ , Golf Variant 2010 ➤ , Jetta 2005 ➤
Electrical system - Edition 07.2010
3. Rear window wiper system 201
