7.16 Alternator -C- 2.0l CR diesel engine

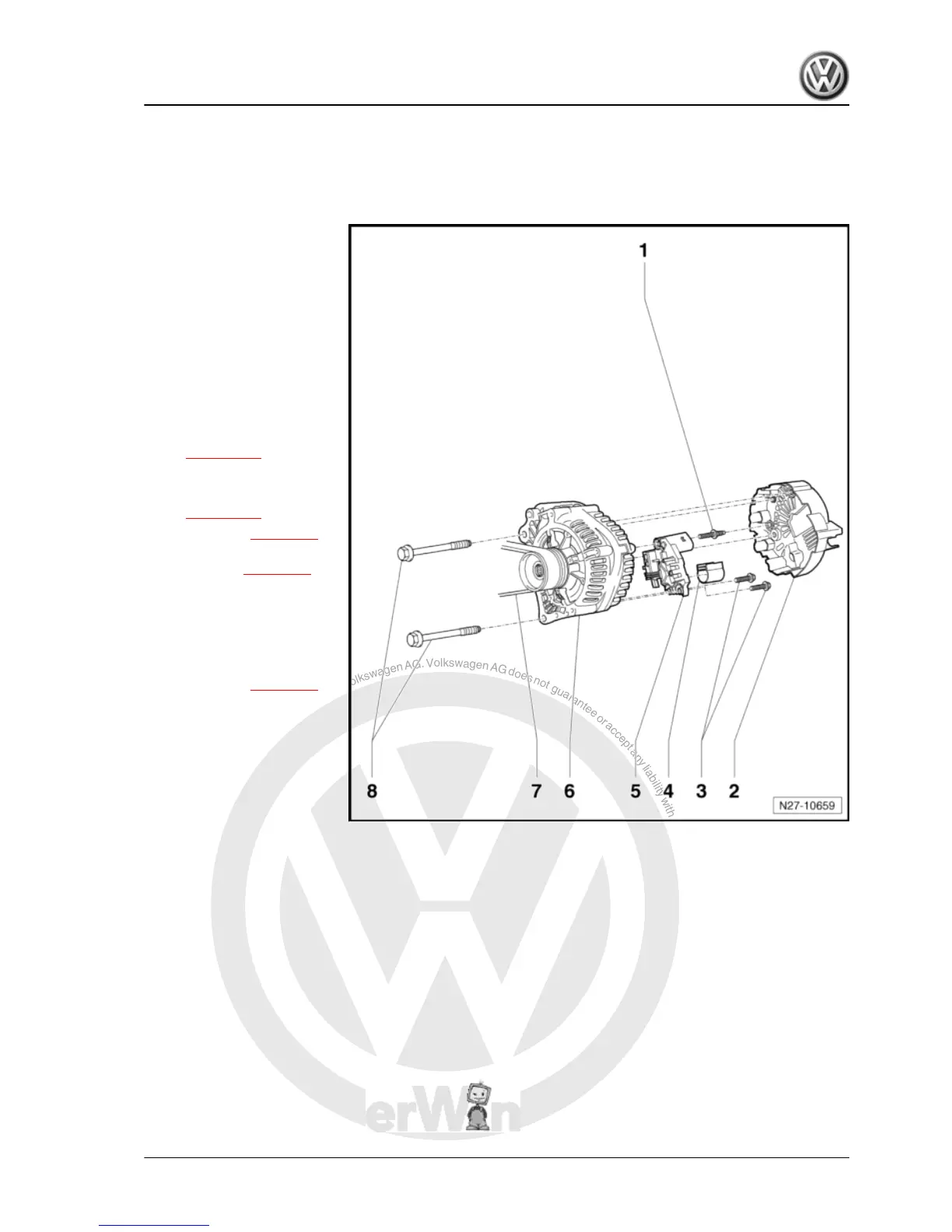

7.16.1 Assembly overview
1 - Hexagon bolt with washer
and threaded element
❑ 2 Nm
2 - Protective cap for alternator
-C-
3 - Cross-head screws
❑ 2 Nm
4 - Protective cap for carbon
brushes
5 - Voltage regulator -C1-
❑ Removing and installing
⇒ page 168
6 - Alternator -C-
❑ Removing and installing
⇒ page 153
❑ Checking ⇒ page 89
❑ Securing battery posi‐
tive wire ⇒ page 88
7 - Poly V-belt
❑ Removing and installing
⇒ Engine; Rep. gr. 13
❑ Poly V-belt routing ⇒
Engine; Rep. gr. 13
❑ Checking ⇒ page 88
8 - Hexagon head flange bolts
❑ 20 Nm
Not illustrated
♦ Nut of B+ wire on rear of alternator: 15 Nm
♦ Nut of wire holder on back of alternator : 3.2 Nm
♦ Poly V-belt pulley without freewheel: 65 Nm
♦ Poly V-belt pulley with freewheel: 80 Nm
♦ Removing and installing ancillary bracket ⇒ Engine; Rep. gr.
13
7.16.2 Removing and installing alternator -C-
Special tools and workshop equipment required
Golf Variant 2007 ➤ , Golf Variant 2010 ➤ , Jetta 2005 ➤
Electrical system - Edition 07.2010
7. Alternator C 153
