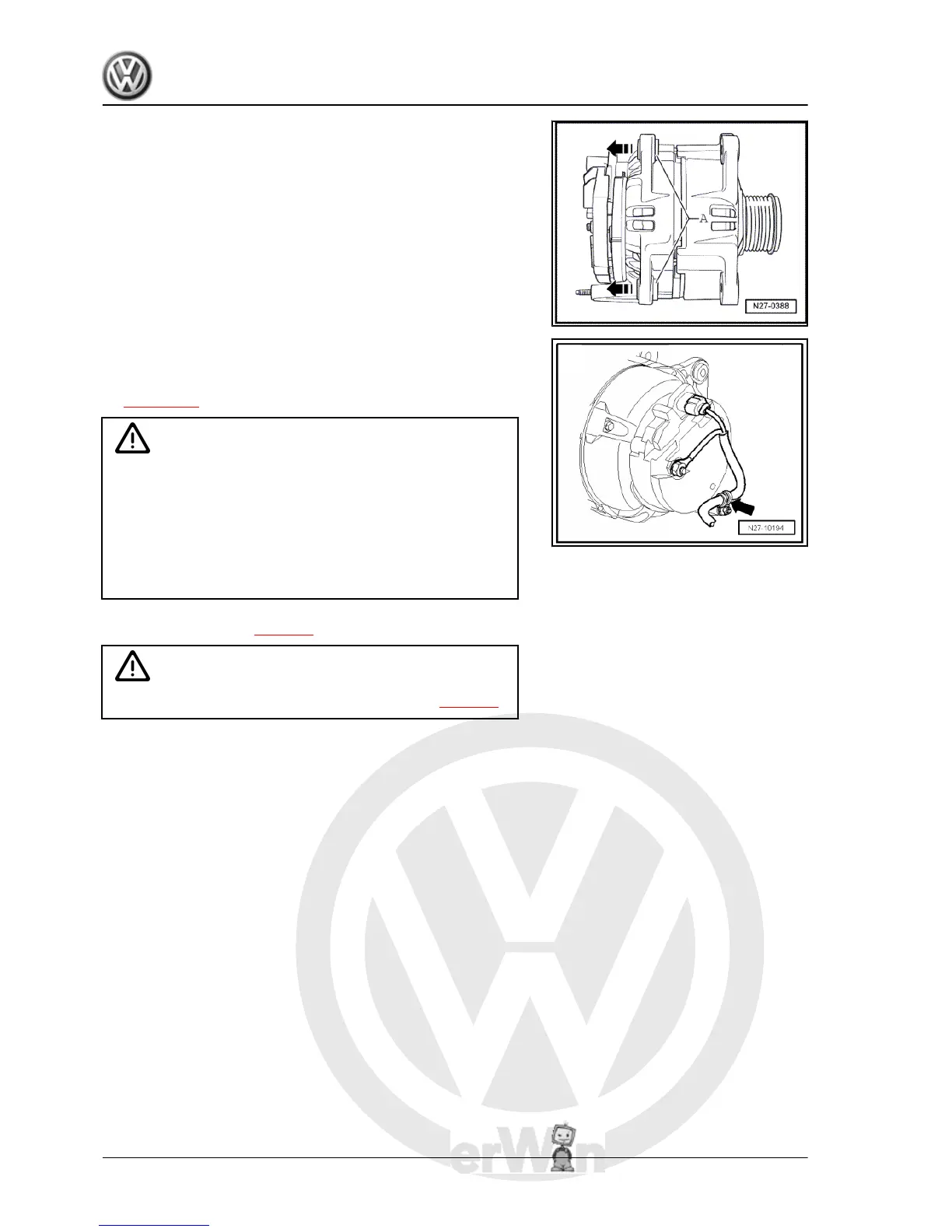

– Drive threaded sleeves -A- roughly 4 mm in
-direction of arrow- out of alternator -C- housing.
– Secure wire holder -arrow- on back of alternator -C- in 12
o'clock position.
– Tighten threaded connections to specified torques
⇒ page 114 .
Caution
♦ When installing used poly V-belts observe the direction of
rotation marked on removal!
♦ Before installing poly V-belt, make sure all assemblies
( alternator -C- / air conditioner compressor) are firmly in
position.
♦ When fitting belt, ensure that poly V-belt seats correctly in
pulleys!
– Connect battery -A- ⇒ page 4 .
Caution
Observe notes for battery pole terminal clamp bolt ⇒ page 1 .
– Start engine and check belt is running correctly.
– Switch off engine.
Golf Variant 2007 ➤ , Golf Variant 2010 ➤ , Jetta 2005 ➤
Electrical system - Edition 07.2010
120 Rep. gr.27 - Starter, current supply, CCS
