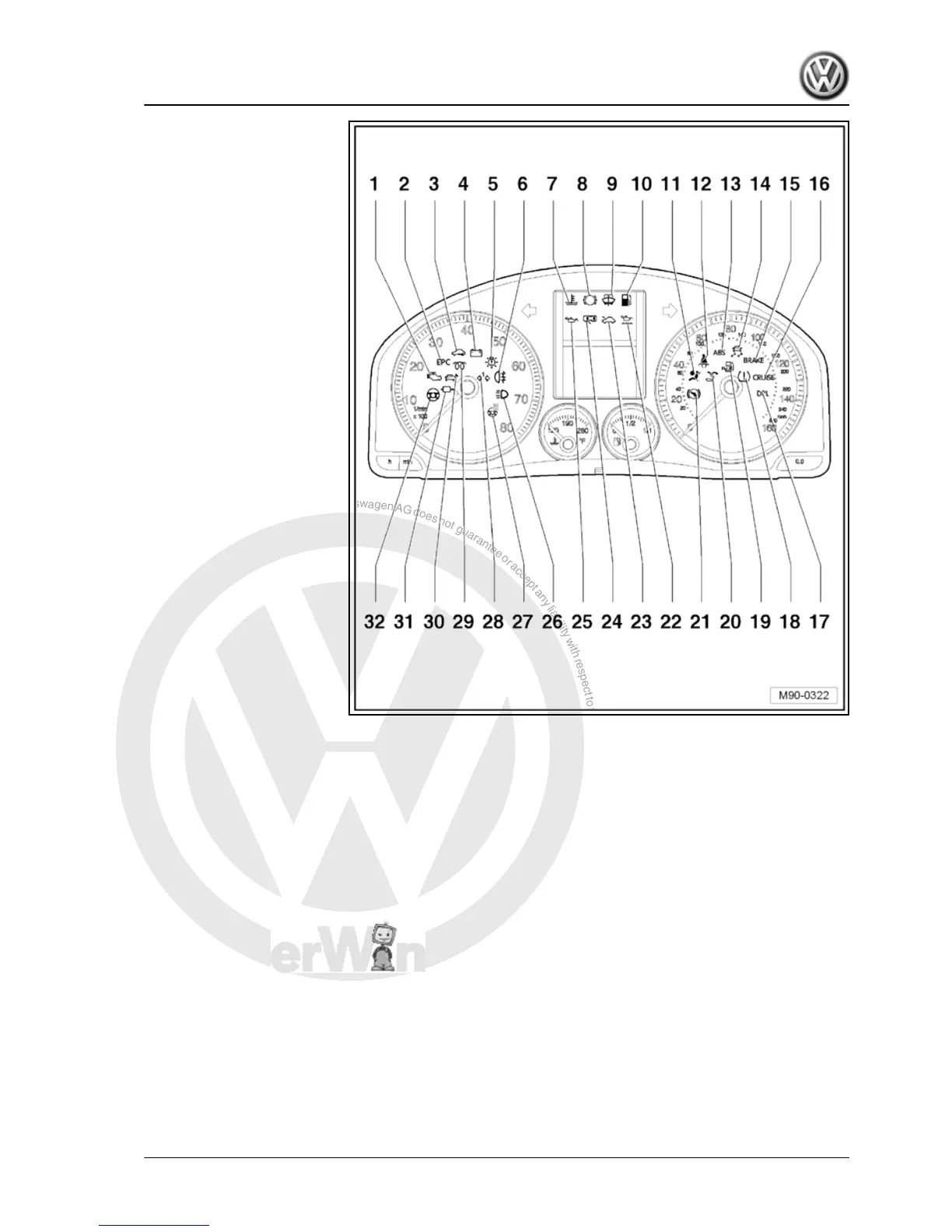

1 - Emissions warning lamp -
K83-
2 - Fault warning lamp for elec‐
tric accelerator mechanism -
K132-
❑ Only vehicles with petrol
engine
3 - immobiliser warning lamp -
K115-
4 - Warning lamp for alternator
-K2-
5 - Bulb failure warning lamp -
K170-
6 - Warning lamp for rear fog
light -K13-
7 - Coolant shortage warning
lamp -K36-
8 - Brake pad warning lamp -
K32-
9 - Washer fluid level warning
lamp -K37-
10 - Reserve fuel warning lamp
-K16-
11 - Airbag warning lamp -K75-
12 - Seat belt warning system
warning lamp -K19-
13 - ABS warning lamp -K47-
14 - ESP and TCS warning
lamp -K155-
15 - Brake system warning
lamp -K118-
16 - Cruise control system warning lamp -K31-
17 - Warning lamp for daytime running lights -K205-
18 - Tyre pressure monitor warning lamp -K220-
19 - Water in fuel
20 - Rear seat backrest lock warning lamp -K193-
21 - Selector lever lock warning lamp -K169-
❑ only on vehicles with automatic gearbox
22 - Oil level warning lamp -K38-
23 - Bonnet open warning lamp -K171-
24 - Door open warning lamp -K166-
25 - Oil pressure warning lamp -K3-
26 - Main beam warning lamp -K1-
27 - Steering wheel heating
28 - Warning lamp for trailer operation -K18-
29 - Glow period warning lamp -K29-
❑ Only vehicles with diesel engine
Golf Variant 2007 ➤ , Golf Variant 2010 ➤ , Jetta 2005 ➤
Electrical system - Edition 07.2010
1. Dash panel insert 177
