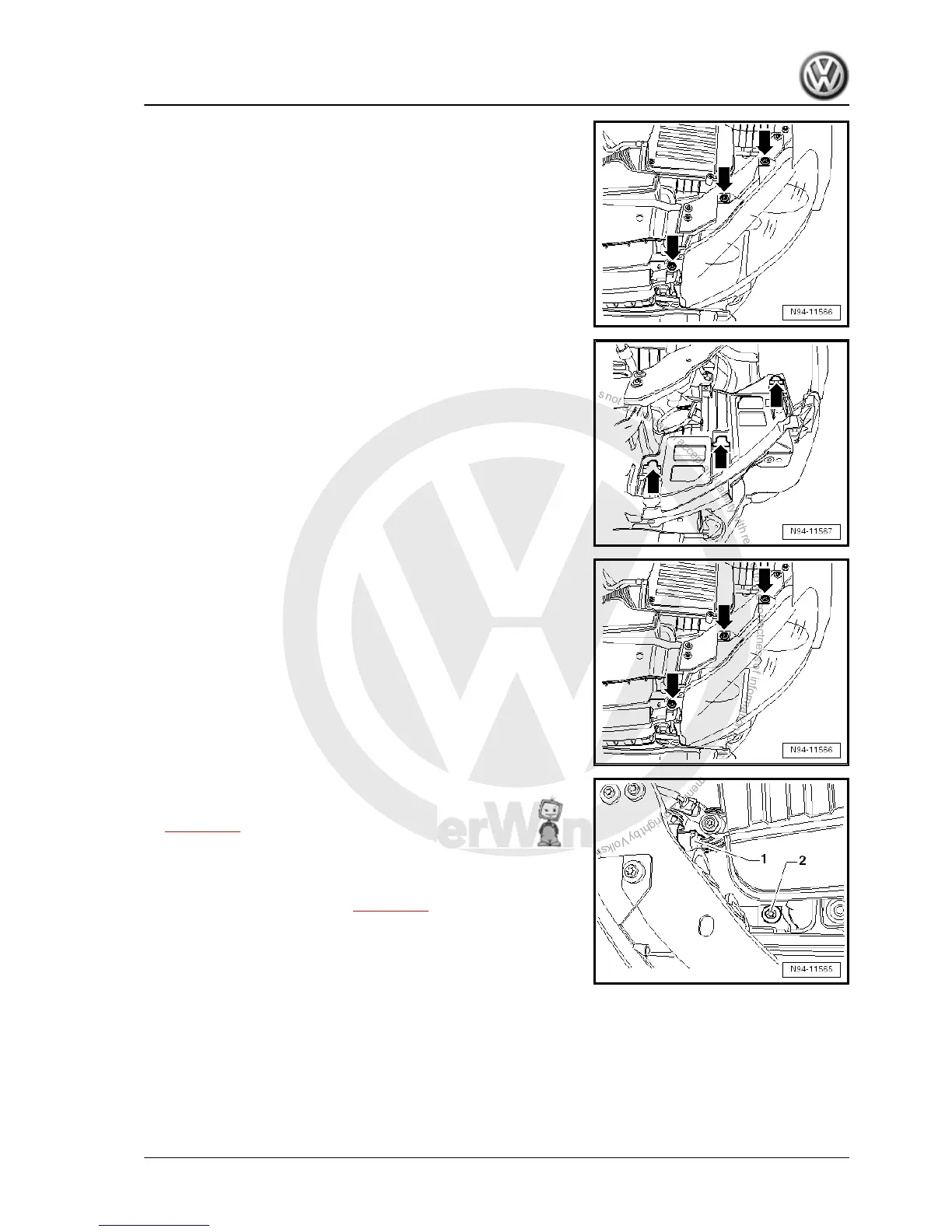

– Unscrew the three bolts -arrows-.
– Pull headlight forwards and straight out of body aperture.
Installing
Carry out installation in the reverse sequence, noting the follow‐
ing:
– Insert headlight with the three guides on underside into mount‐
ings -arrows- on guide and push into body aperture.
– First, screw in the three bolts -arrows-.
– Then, screw in bolt -2- on rear of headlight.
– Tighten all threaded connections to specified torques
⇒ page 236 .
– Check headlight installation position is central, i.e. shut lines/
gaps are equal around headlight.
If the shut lines/gaps around the headlight are uneven, the instal‐
lation position must be adjusted ⇒ page 217 .
– Check headlight functions.
– Check headlight settings and adjust headlights if necessary
⇒ Maintenance ; Booklet 20.1 ; Descriptions of work .
