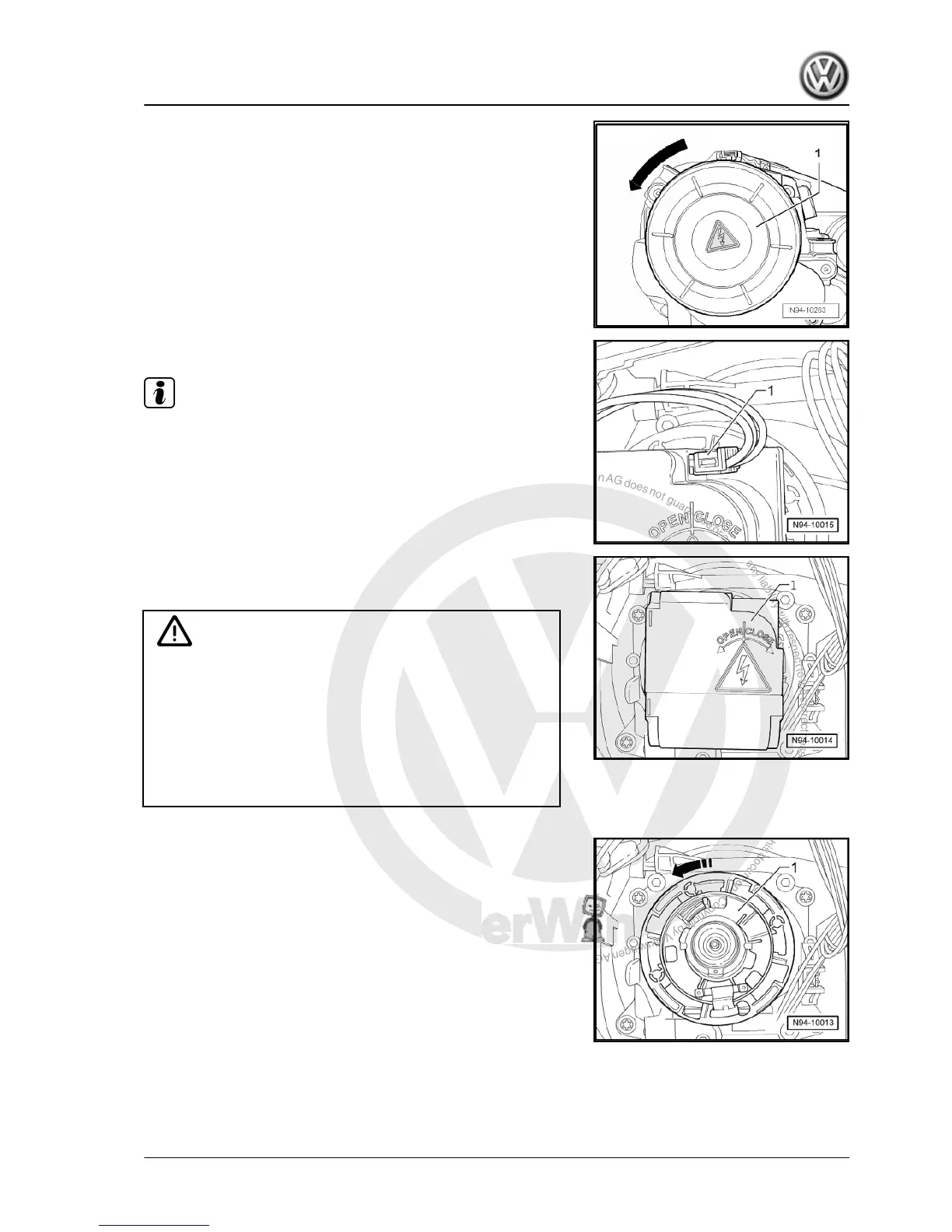

– Turn cover cap -1- in -direction of arrow- and remove.
– Pull off connector -1-.
Note
The connector is ejected automatically when the gas discharge
bulb starter unit -N195- is removed.
– Turn gas discharge light starter unit -N195- -1- in direction of
lettering „OPEN“ and pull gas discharge light starter unit -
N195- off headlight.
WARNING
♦ In the bulb glass of the left gas discharge bulb -L13- ,
pressures can range from between 7 bar (cold) and 100
bar (hot). Temperatures can reach up to 700 degrees Cel‐
sius on the glass bulb.
♦ Should the glass envelope explode, there is a risk of injury
from burning.
♦ Always wear safety goggles and gloves when removing
and installing left gas discharge (xenon) bulb -L13- .
– Turn bulb retainer -1- in direction of -arrow- and remove bulb
retainer.
Golf Variant 2007 ➤ , Golf Variant 2010 ➤ , Jetta 2005 ➤
Electrical system - Edition 07.2010
3. Headlights with gas discharge bulbs (up to MY2009) 263
