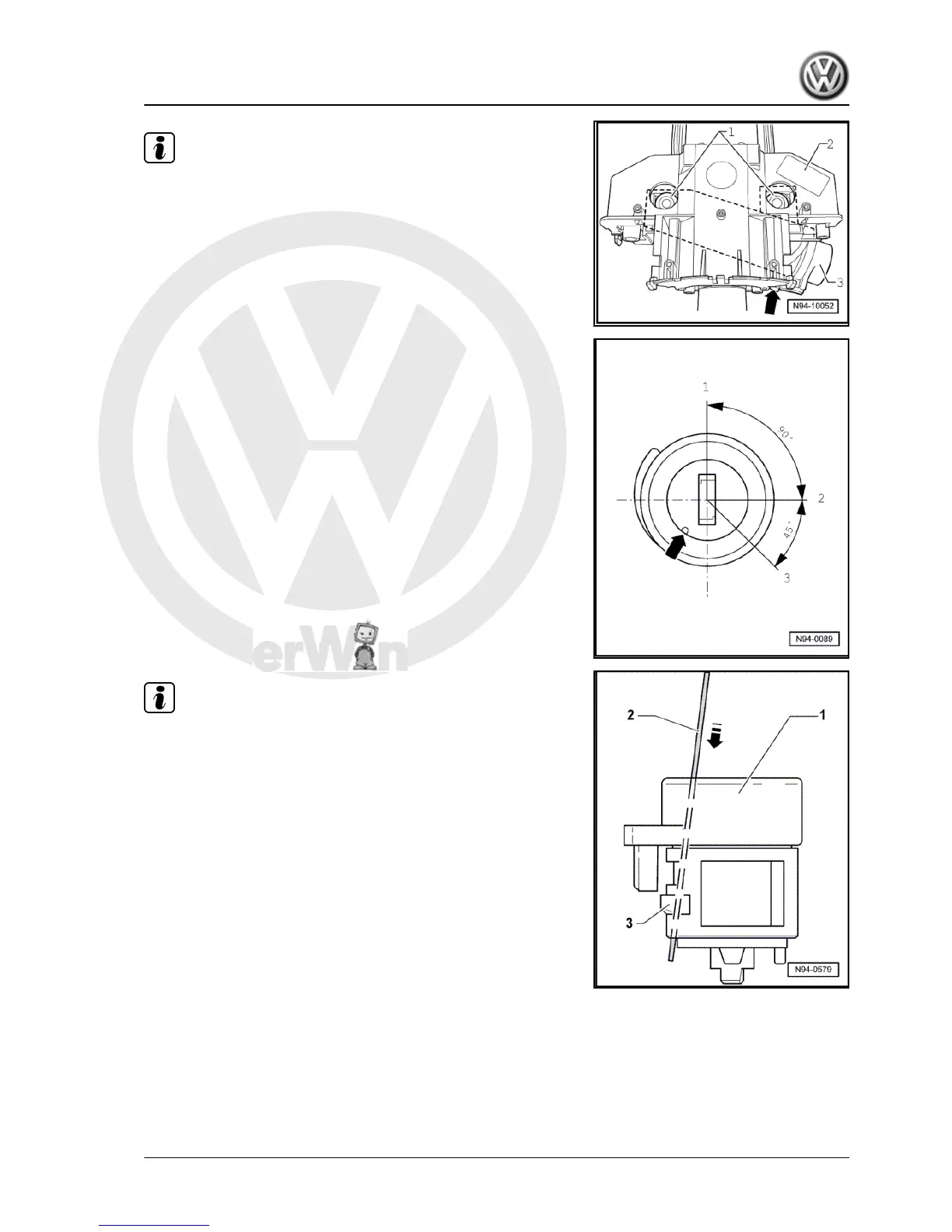

Note
♦ There is no need to remove the switches in order to remove
the lock cylinder.
♦ The immobiliser reader coil -D2- is secured to the lock cylinder
and cannot be changed individually.
– Pull connector -arrow- off immobiliser reader coil -D2- .
– Insert ignition key in lock cylinder and turn to position „Drive“.
Positions for key in lock cylinder:
1 - Position „Stop“
2 - Position „Drive“
3 - Position „Start“
Note
For reasons of clarity, the lock cylinder is shown in the following
illustration without ignition key.
– Insert steel wire (∅ 1.2 mm) into hole -arrow- adjacent to ig‐
nition key.
– Using steel wire -2- release -arrow- locking lever -3- of lock
cylinder -1-.
– Pull lock cylinder -1- out of steering lock housing.
Golf Variant 2007 ➤ , Golf Variant 2010 ➤ , Jetta 2005 ➤
Electrical system - Edition 07.2010
13. Ignition/starter switch and lock cylinder 331
