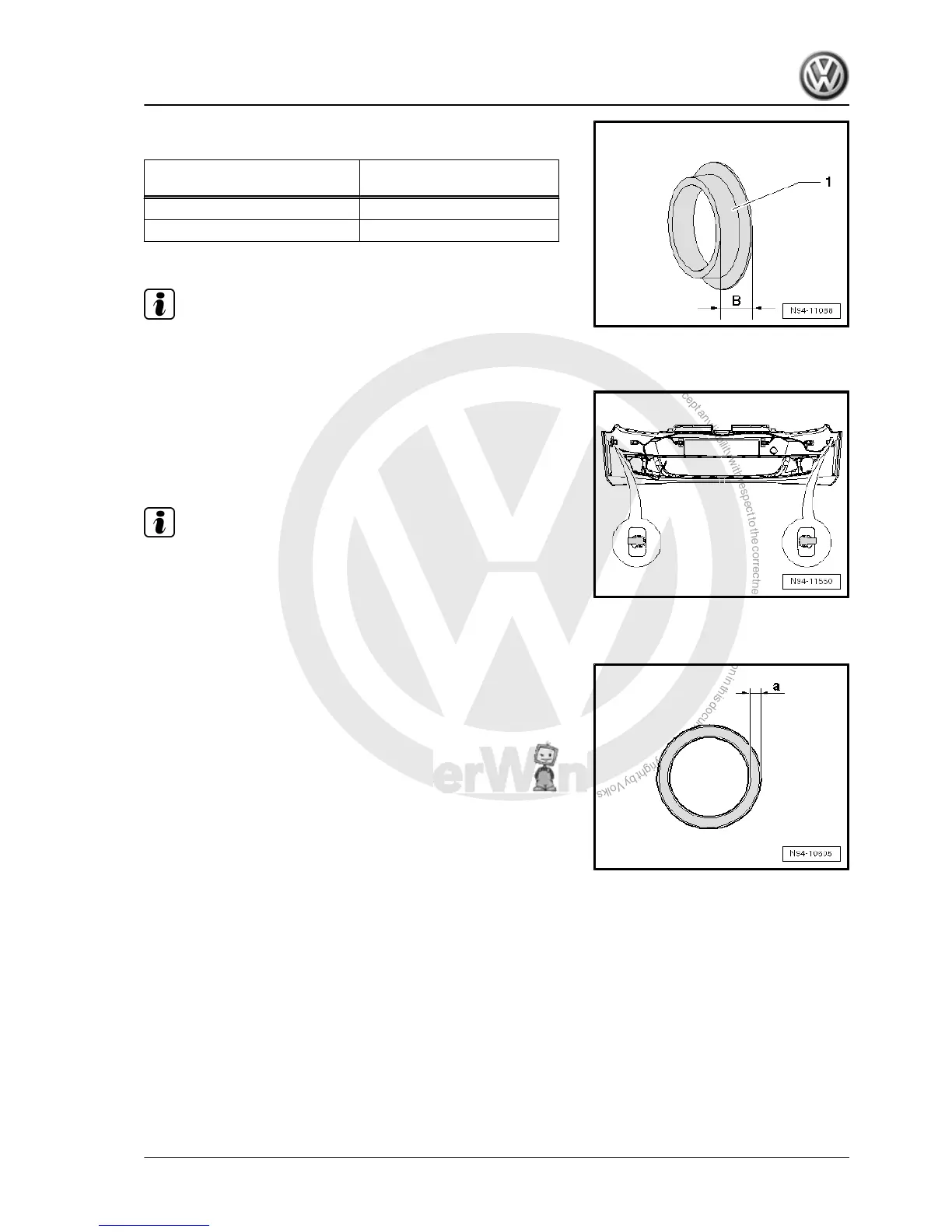

– Check whether the correct isolation ring is installed on the
sender head.
Type of sender Isolation ring height dimen‐
sion -B-
Front parking aid senders 5.7 mm
Park assist steering senders 9.05 mm
– Renew the sender isolation ring -1-.
Note
When installing senders, note position of electrical connections
of senders.
Assignment of senders on inside of front bumper cover:
A - FLS - bracket for front left sender for park assist steering on
left side of vehicle -G568-
B - FRS - bracket for front right sender for park assist steering on
right side of vehicle -G569-
Note
♦ When mounting the sender, make sure that the isolation ring
is correctly mounted on the sender head and does not ride or
roll up on insertion into the sender holder.
♦ Both locking lugs of sender holder must audibly engage when
installing the sender.
– After installing the sender, check that the sender is correctly
seated in the bracket. Visible on the outer side of the bumper,
dimension -a- of the ring gap between the sender head and
bumper cover must be even all around.
15.4.2 Checking parking aid sender/park assist
steering sender
Special tools and workshop equipment required
Golf Variant 2007 ➤ , Golf Variant 2010 ➤ , Jetta 2005 ➤
Electrical system - Edition 07.2010
15. Park assist steering 365
