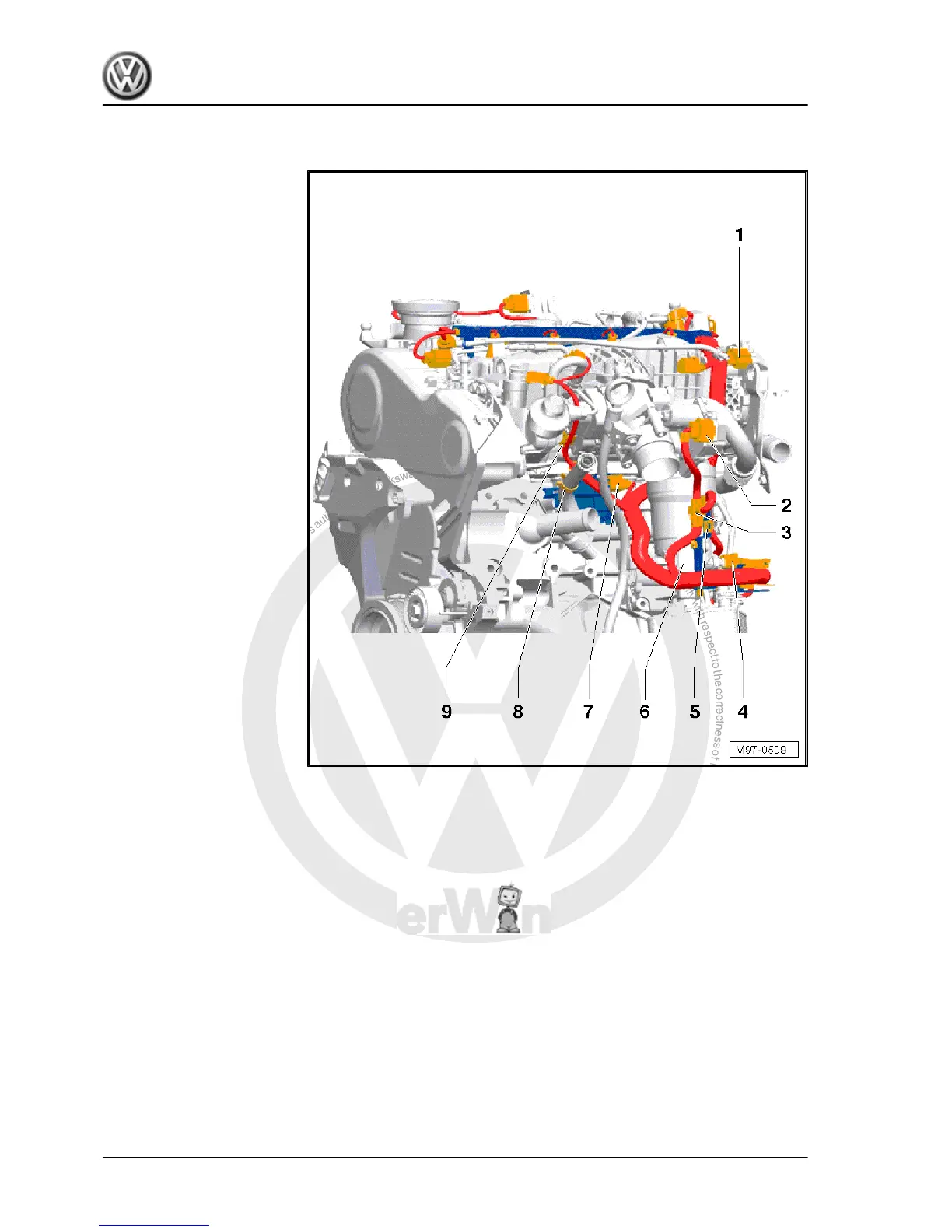

7.3.3 Assembly overview - engine wiring harness, intake side
1 - Intake manifold flap motor -
V157- connector, 5-pin
❑ Note ⇒ 4-cyl. diesel en‐
gine (2.0 l engine, com‐
mon rail); Rep. gr. 23
2 - Throttle valve module -
J338- connector, 50-pin
❑ Note ⇒ 4-cyl. diesel en‐
gine (2.0 l engine, com‐
mon rail); Rep. gr. 23
3 - Insertion foot
❑ Note installation posi‐
tion
4 - Oil pressure switch -F1-
connector, 1-pin
❑ Note ⇒ 4-cyl. diesel en‐
gine (2.0 l engine, com‐
mon rail); Rep. gr. 17
5 - Bracket on oil filter bracket
❑ For wiring harness
❑ Note installation posi‐
tion
6 - Engine speed sender -G28-
connector, 3-pin
❑ Note ⇒ 4-cyl. diesel en‐
gine (2.0 l engine, com‐
mon rail); Rep. gr. 13
7 - Hall sender -G40- connec‐
tor, 3-pin
❑ Note ⇒ 4-cyl. diesel en‐
gine (2.0 l engine, com‐
mon rail); Rep. gr. 15
8 - Engine speed sender -G28-
bracket on cylinder head
❑ For wiring harness
9 - Mechanical exhaust gas recirculation valve -N18- connector, 6-pin
❑ Note ⇒ 4-cyl. diesel engine (2.0 l engine, common rail); Rep. gr. 23
Golf Variant 2007 ➤ , Golf Variant 2010 ➤ , Jetta 2005 ➤
Electrical system - Edition 07.2010
496 Rep. gr.97 - Wiring
