Parts of the Printer
This section includes:
• Front View ...........................................................................................................................................................................24
• Duplex Automatic Document Feeder........................................................................................................................25
• Control Panel ......................................................................................................................................................................26
• Internal Parts ......................................................................................................................................................................28
• Rear View .............................................................................................................................................................................29
• Configurations and Options .........................................................................................................................................30

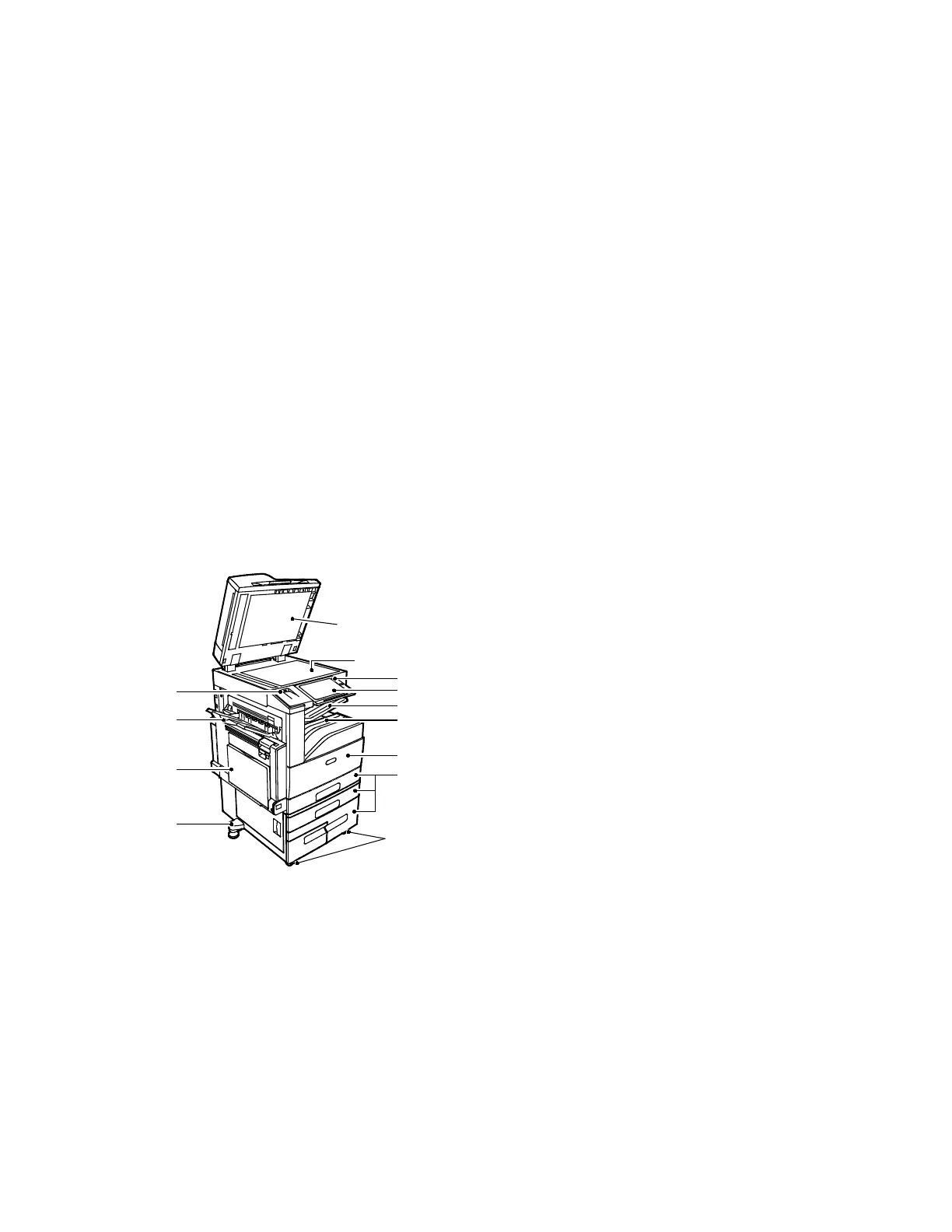

Front View
1. Leveler Foot
2. Tray 5
3. Left Tray
4. USB Port
5. Document Cover
6. Document Glass
7. Power/Wake Button
8. Control Panel
9. Center Output Tray
10. Center Bottom Tray
11. Main Power Switch behind Front Door
12. Trays 1–4
13. Locking Casters
10
7
11
12
13
2
5
8
9
6
3
4
1
