Phaser 3300MFP Service Manual 8-7
Service Parts Disassembly

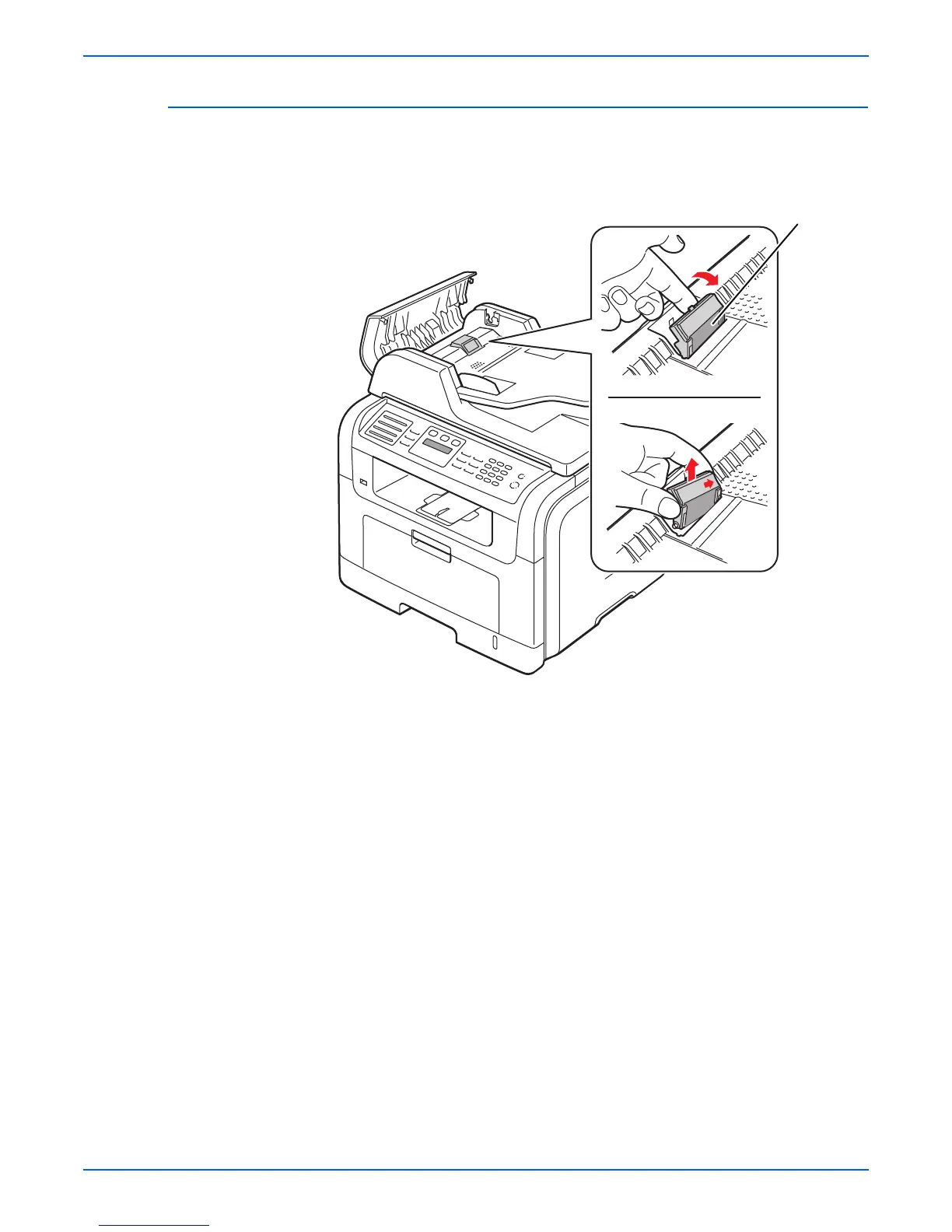

ADF Rubber Pad (PL 13.0.3-2)
1. Remove the ADF Pickup Assembly. (See the previous procedure.)
2. Swing the rubber pad assembly up on its pivots, then squeeze the sides
of the assembly to release the pivots from the housing as shown.
ADF Rubber Pad
s3300mfp-187
