8-46 Phaser 3300MFP Service Manual
Service Parts Disassembly
Exit Roller
Before you remove the Exit Roller, you must remove:
â–  Fuser Drive Assembly (page 8-66)
â–  Middle Cover Assembly (page 8-33)

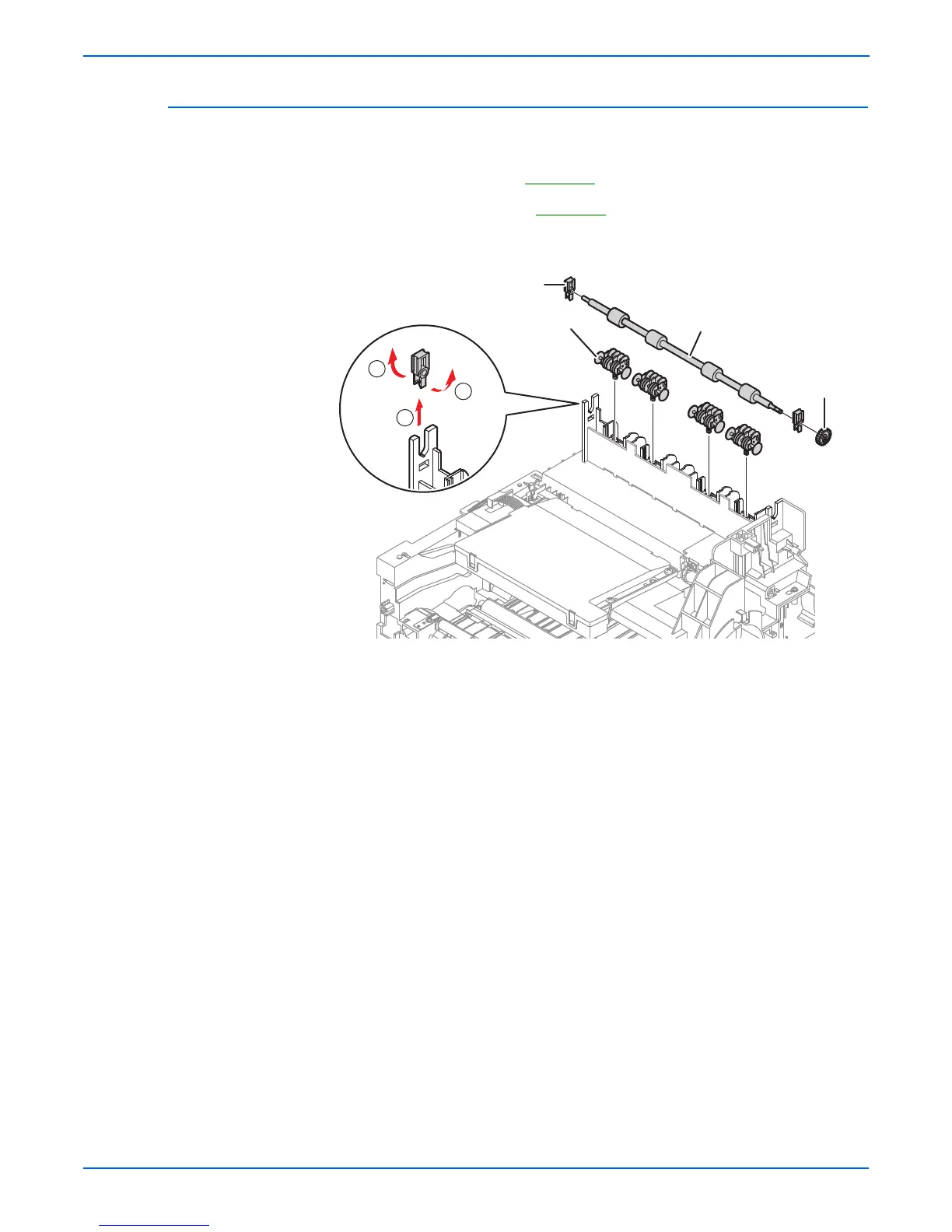

1. Remove the Exit Gear, and release the Bearing at one end then remove
the Roller Exit F/Down and Exit Roller Rack, as shown below.
Note
Do not grab the rubber part of the Feed1 Roller, it may cause a
malfunction due to a foreign object.
s3300mfp-141
1
2
1
Exit Gear
Exit Rollers
Exit Roller Rack
Bearing
